Vexta PMC Series User Manual

10
PMC33A(B)1-MG
PMC33A(B)1-HG
M3
Spring washer
M3
Hexagonal
socket screws
Mounting plate
4-M3 P0.5
Ø3.5(.14)-4holes
Spot facing or
through hole for pilot

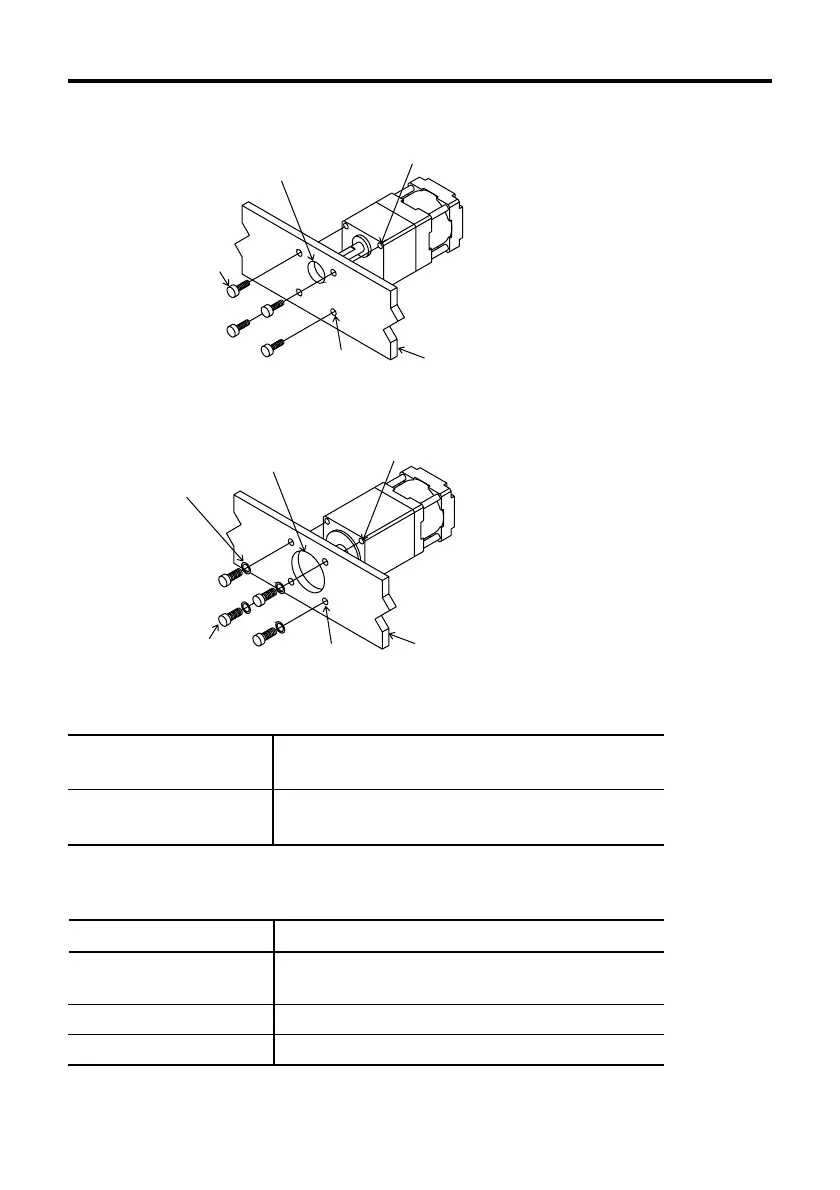

The following hardware (not supplied) is needed to mount the motor.
For the installation of the MG geared type, use the supplied screws.
Select screws with a length appropriate for the thickness of the mounting plate.
(Refer to the below table.)
M2.5
Cross recessed
head machine
screws with
washer (attached)
Mounting plate
Ø3(.12)-4holes
Spot facing or
through hole for pilot
4-M2.5 P0.45
PMC3A(B)3
PMC33A(B)1-HG
・M2.5 Recessed cross head screws : 4
・M2.5 Spring washers : 4
・M3 Hexagonal socket screws : 4
・M3 Spring washers : 4
Length of the screws [Unit: mm (inch)]
thickness of the mounting plate +2.5 (0.1)
thickness of the mounting plate +3.5 (0.14)
thickness of the mounting plate +5 (0.2)
Model
PMC33A(B)3
PMC35A(B)3
PMC33A(B)1-MG
PMC33A(B)1-HG
