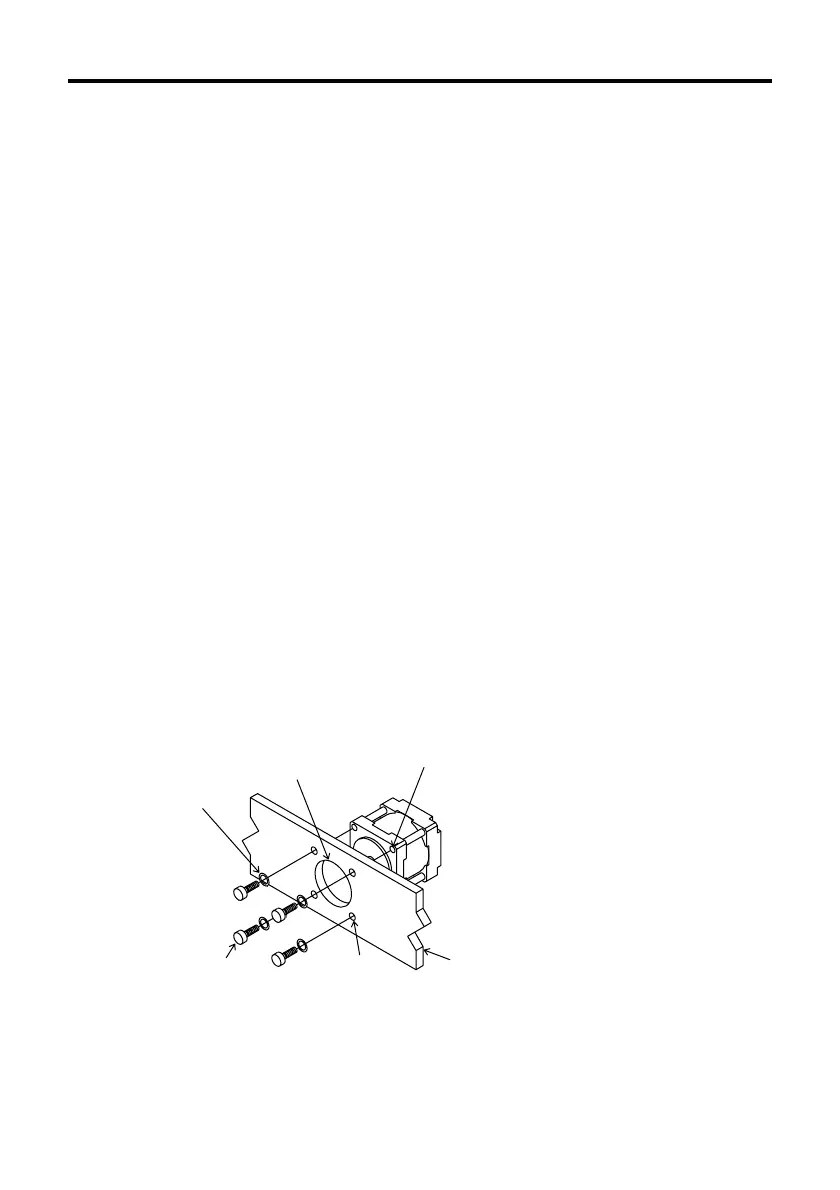

PMC3A(B)3
M2.5
Spring washer
M2.5
Recessed cross
head screws
Mounting plate
Ø3(.12)-4holes
Spot facing or
through hole for pilot
4-M2.5 P0.45
Installation
Motor installation
Motor installation location
To prevent motor damage, install in a location with the following conditions.
• Indoors (The motor is designed and manufactured to be used as an internal component
within other equipment.)
• Ambient temperature range
-
10°C~+50°C (+14°F~+122°F) (non-freezing)
For harmonic geared type: 0°C~+40°C (+32°F~+104°F) (non-freezing)
• Ambient humidity below 85% (non-condensing)
• No explosive, combustible, or corrosive gases
• No direct sunlight
• No dust or conductive particles (i.e. metal chips or shavings, pins, or wire fragments
etc.)
• No water, oil, or other fluids
• Where the motor is able to dissipate heat easily
• No continuous vibration or sudden shocks
• No nearby radiation, magnetic field, or air vacuum environment
How to install the motor
To allow for heat dissipation and to prevent vibration, be sure to securely attach the motor
to solid metal surface.
The motor flange incorporates a pilot diameter. Use this pilot diameter as a guide for
alignment when mounting the motor.
