> EXPOSURE
> COLOR
> IMAGE

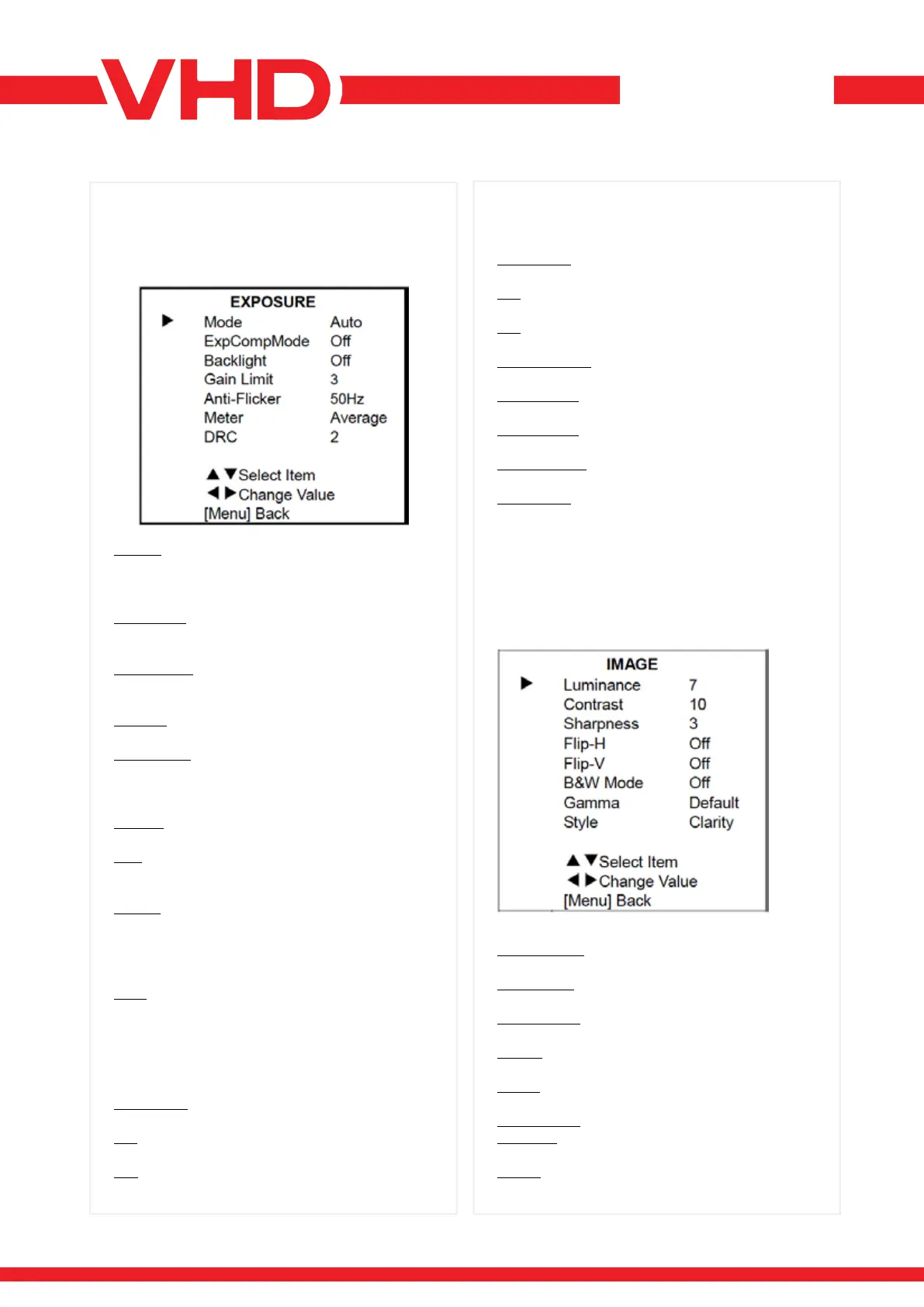

Move the main menu cursor to [EXPOSURE], and
press [HOME] key enter the exposure page, as
shown in the following gure.
Move the main menu cursor to [COLOR], and
press [HOME] key enter the color page, as shown
in the following gure.
WB-MODE: White balance mode, optional items:
Auto, Indoor, Outdoor, One Push, Manual, VAR.
RG: Red gain, optional items: 0~255 (Effective
only in Manual mode).
BG: Blue gain, optional items: 0~255 (Effective
only in Manual mode).
Move the main menu cursor to [IMAGE], and press
[HOME] key enter the image page, as shown in
the following gure.
LUMINANCE: brightness adjustment, optional
items: 0 ~ 14.
CONTRAST: contrast adjustment, optional items:
0 ~ 14.
SHARPNESS: sharpness adjustment, optional items:
Auto, 0 ~ 15.
FLIP-H: image ipped horizontally, optional items:
On, Off.
FLIP-V: image Flip Vertical, optional items:
On, Off.
B&W MODE: optional items: On, Off.
GAMMA: optional items:
Default, 0.45, 0.5, 0.56, 0.63.
STYLE: optional items: Norm, Clarity(LED), Clarity,
Bright, Soft, 5S, QS.
Move the main menu cursor to [COLOR], and
press [HOME] key enter the color page, as shown
in the following gure.
WB-MODE: white balance mode, optional items:
Auto, Indoor, Outdoor, One Push, Manual, VAR.
RG: Red gain, optional items: 0~255 (Effective
only in Manual mode).
BG: blue gain, optional items: 0~255 (Effective
only in Manual mode).
COLOR TEMP: optional items: 2500K ~ 8000K
(Effective only in VAR mode).
RG TUNING: red gain ne-tuning, optional items:
-10 ~ +10 (Effective only in AWB sens is Low).
BG TUNING: blue gain ne-tuning, optional items:
-10 ~ +10 (Effective only in AWB sens is Low).
SATURATION: optional items: 60% ~ 200%. Hue:
Chroma adjustment, optional items: 0 ~ 14.
AWB SENS: the white balance sensitivity, optional
items: Low, Middle, High.
MODE: exposure mode, optional items: Auto,
Manual, SAE, AAE, Bright. ExpCompMode:
Exposure compensation mode, optional items:
On, Off (Effective only in Automode).
EXPCOMP: exposure compensation value,
optional items: -7~7 (Effective only in
ExpCompMode item to On).
BACKLIGHT: set the backlight compensation,
optional items:
On, Off (Effective only in Auto mode).
BRIGHT: intensity control, optional items: 00~17
(Effective only in Bright mode).
GAIN LIMIT: maximum gain limit, optional items: 0
~ 15 (Effective only in Auto, AAE, Bright mode).
Anti-Flicker: Anti-icker, optional items: Off, 50Hz,
60Hz (Effective only in Auto, Bright mode).
METER: optional items:
Average, Center, Smart, Top.
IRIS: aperture value, optional items: F1.8, F2.0,
F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6,
F11.0, Close (Effective only in Manual, AAE mode).
SHUTT: Shutter value, optional items:
1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250,
1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/6000, 1/10000
(Effective only in Manual, SAE mode).
DRC: DRC strength, optional items: 0 ~ 8.
