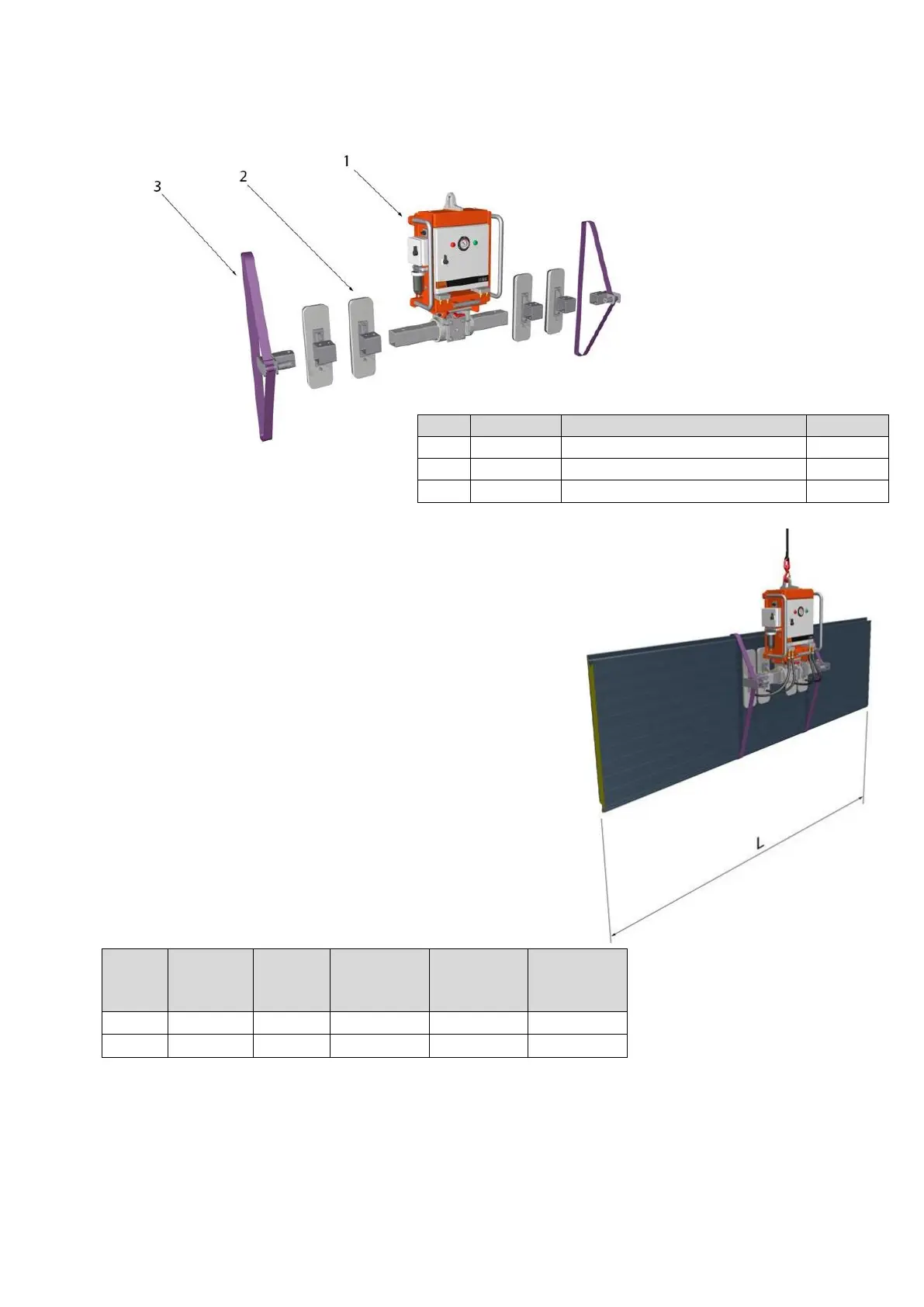

CB4 configuration type: WH
For horizontal wall panels up to 12 meter length
* = Other type of suction pads on request.
. . . *= load with 4x100kg pads, ( . . . ) = max. possible load on traverse.
Type WA = wall panels with min.0,5mm skin & PUR/PIR core.
Type WB = wall panels with min. 0,5mm steel skin & mineral wool core
REMARKS
* Panels with a length up to 15 meter are possible with configuration type WH 1100 - 2900.
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum unit CB4
408500
2
1 – 2 sets
Suction pad with suspension
408033*
3
1 set
Falling safety device FS4
408007
DIST.
mm
SUCTION
PADS
qty
SET
WEIGHT
kg
MAX.
LOAD
kg
L
(type WA )
meter
L
( type WB )
meter
-
1 set
125
200* (800)
3 …12
3 … 8
-
2 set
140
400* (800)
3 …12
3 … 8
