MANUAL VIAVAC-CB4 / 4.1 ( Operator section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
20
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com

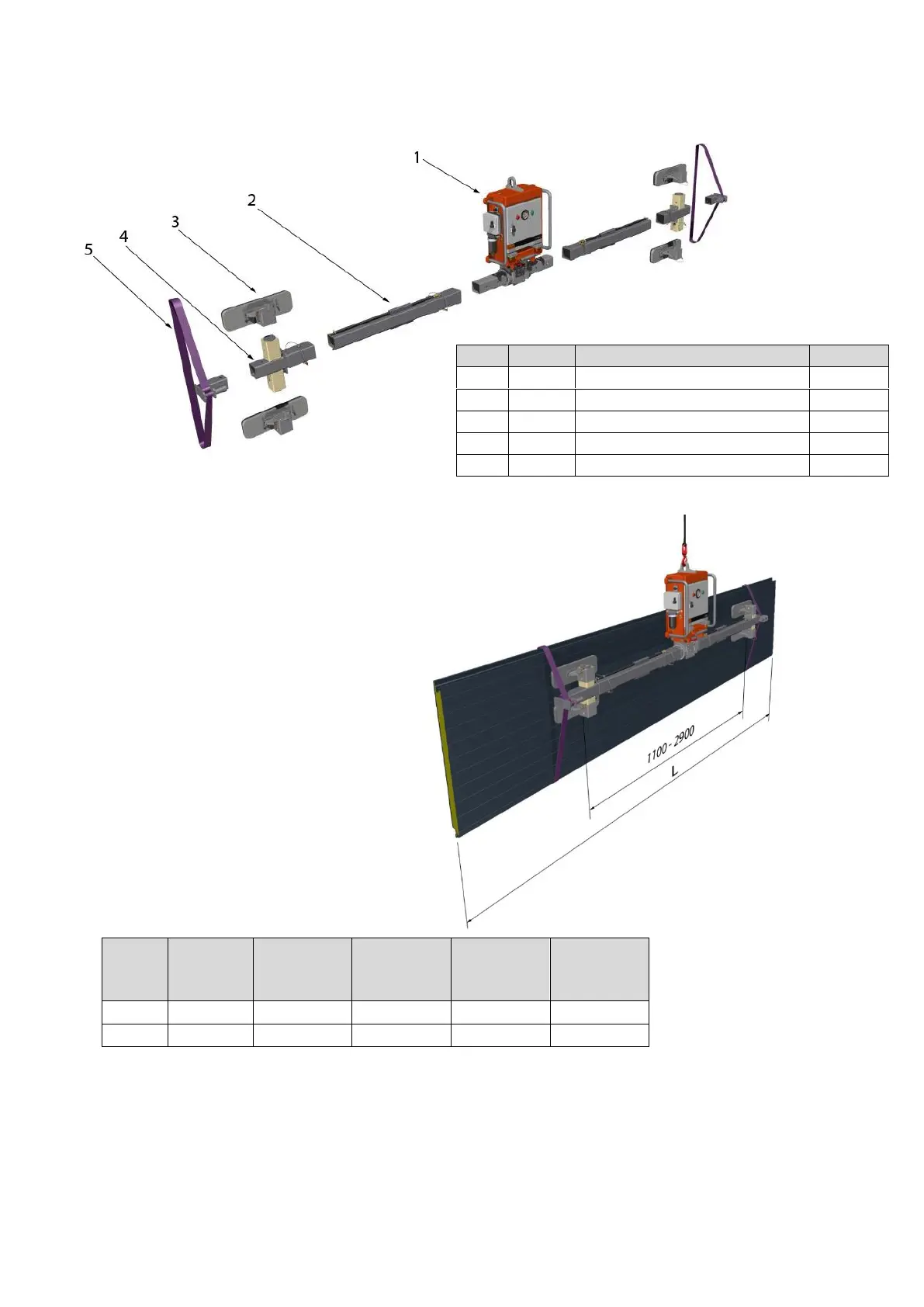

CB4 configuration type: WH 1100 - 2900
For horizontal wall panels up to 15 meter length
* = Other type of suction pads on request.
. . . *= load with 4x100kg pads, ( . . . ) = max. possible load on traverse.
Type WA = wall panels with min.0,5mm steel skin & PUR/PIR core.
Type WB = wall panels with min. 0,5mm steel skin & mineral wool core
REMARKS
* Panels with a length up to 12 meter are possible with configuration type WH.
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum unit CB4
408500
2
0 - 2
Traverse extension beam
408003
3
4
Suction pad with suspension
408033*
4
1 set
Cross traverse
408010
5
1 set
Falling safety device FS4
408007
DIST.
mm
EXT.
BEAMS
qty.
SET
WEIGHT
kg
MAX.
LOAD
kg
L
(type WA )
meter
L
( type WB )
meter
1100
0
160
400* (800)
3 …13
3 … 9
2900
2
195
400* (800)
13 …15
9 … 11
