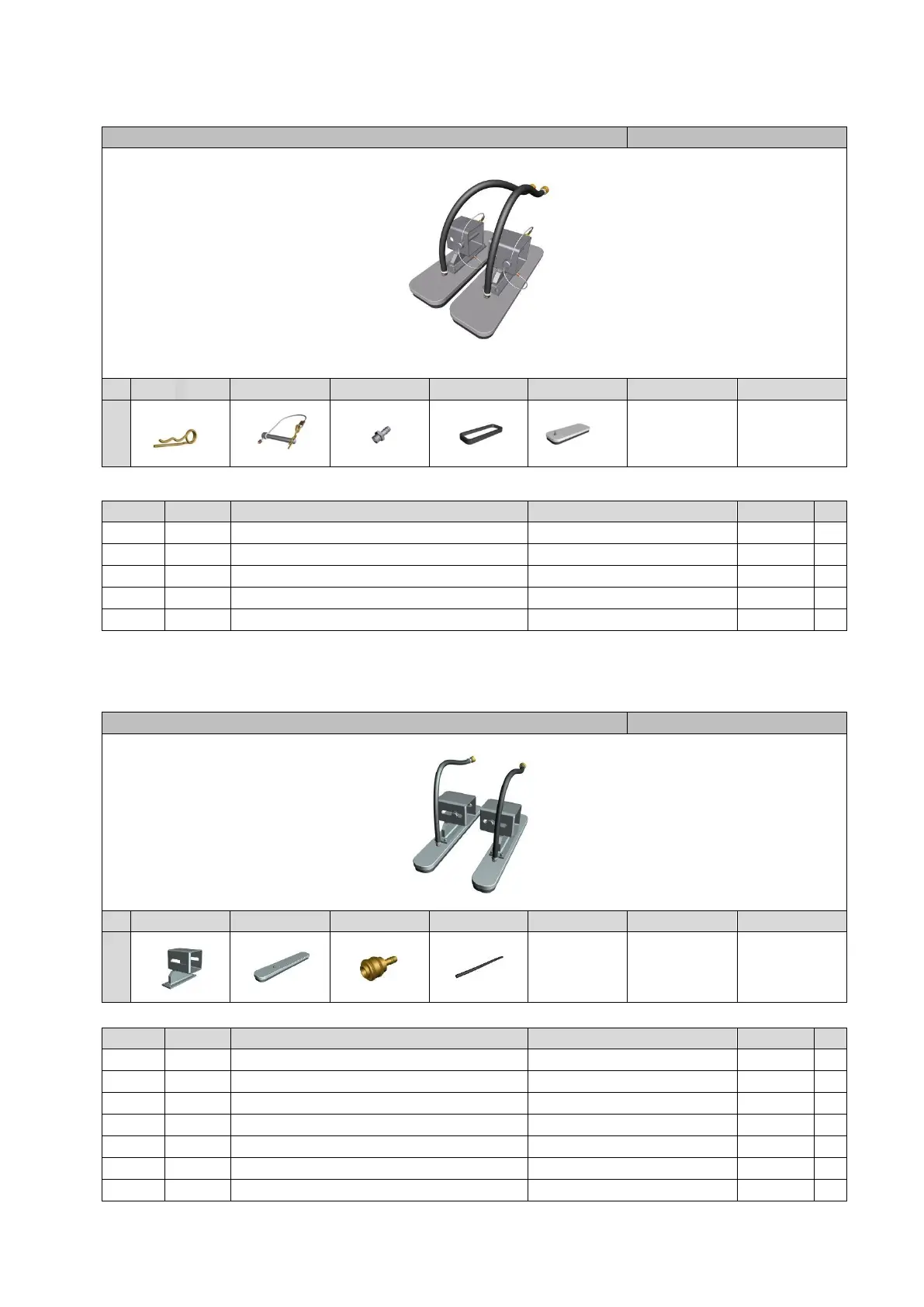

SUCTION PAD WITH SUSPENSION 2X SP1-150X490-S2
ART. NO. 408033
A
B
C
D
E
F
G
1
X = Recommended spare part
SUCTION PADS WITH SUSPENSION SP1-90X550-S2
ART. NO. 408061
A
B
C
D
E
F
G
1
X = Recommended spare part
Pict.
Quan.
Description
Type
Art. no.
A
1-A
2
Spring cotter
3,5 double
1007
1-B
2
Securing pin with cable
Ø16x120, Lc=400
408015
1-C
2
Hose coupling
Ø 9 - G1/4
5002
1-D
2
Seal
S2-1180
408028
x
1-E
2
Suction pad
SP1 150x490-S2
408024
x
Pict.
Quan.
Description
Type
Art. no.
A
1-A
2
Movable wall panel suspension
SPS4 - 90x90
38308
X
1-B
2
Suction pad SWL=60kg
SP1-90x550-S2
408020
X
1-C
2
Quick coupling female
Ø9; NW7.2
5019
1-D
2
Hose
Ø9,5x19,5
12005
1-E
1-F
