MANUAL VIAVAC-CB4 / 4.1 ( Expert section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
25
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com

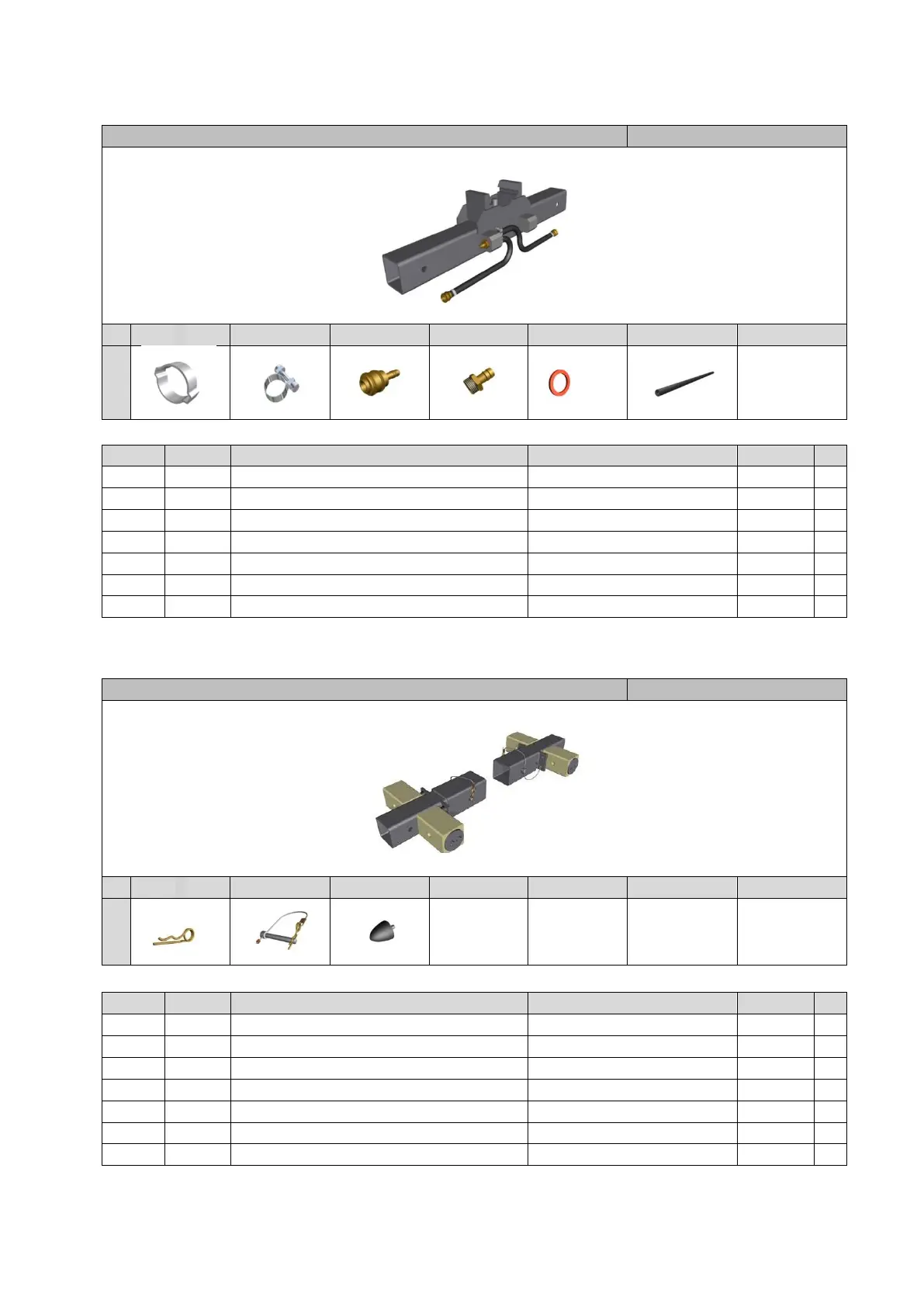

TILTING BEAM 90
o
Art. no. 408006
A
B
C
D
E
F
G
1
X = Recommended spare part
CROSS TRAVERSE (SET)
Art. no. 408010
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
4
2 ear hoseclamp
Rnd 17 … 20mm
12004
1-B
4
Hose clamp
ELVZ 11-17mm
1123
1-C
4
Quick coupling “female-hose”
Ø 9mm NW 7.2
5019
X
1-D
4
Quic coupling “male-thread”
G1/2" NW 7.2
5072
X
1-E
4
Fiber ring
G1/2"
5010
1-F
4
Hose 9,5x19,5
L=650 mm
12005
1-G
Pict.
Quan.
Description
Type
Art. no.
A
1-A
4
Spring cotter
3mm double
1007
1-B
2
Securing pin with cable
Ø16x120, Lc=400
408015
1-C
8
Rubber buffer
KD 30x30
14005
X
1-D
1-E
1-F
1-G
