VIAVAC CB4 - Page 58

MANUAL VIAVAC-CB4 / 4.1 ( Expert section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
24
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com
X = Recommended spare part
X = Recommended spare part

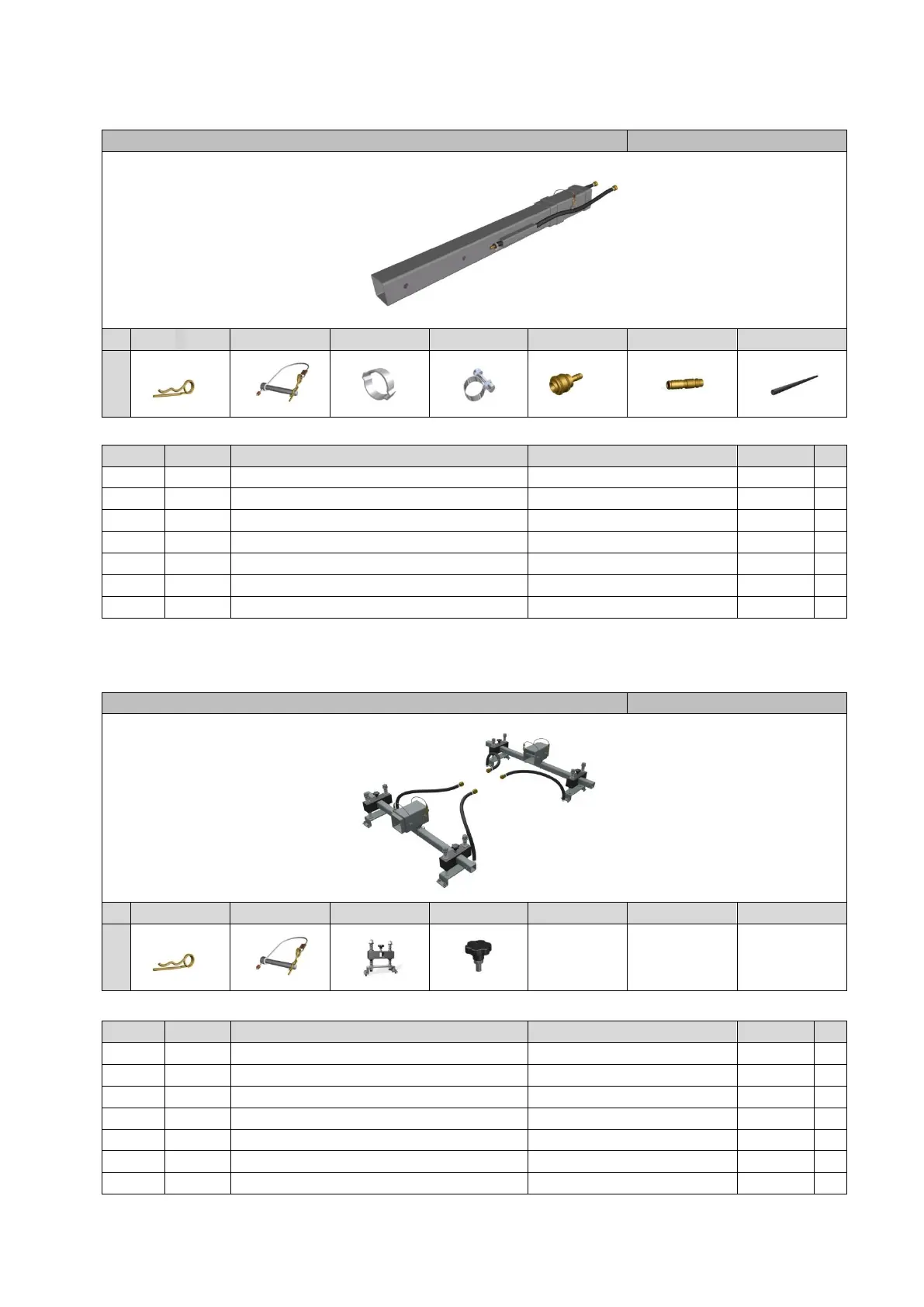

MAIN TRAVERSE EXTENSION BEAM
Art. no. 408003
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
1
Sping cotter pin
3mm double
1007
1-B
1
Securing pin with suspension
Ø16x120, Lc=400
408015
1-C
2
2 ear hose clamp
Rnd 17 … 20mm
12004
X
1-D
2
Hose clamp
ELVZ 11-17mm
1123
1-E
2
Quick coupling
Female
5019
1-F
2
Quick coupling
Male
5018
X
1-G
2
Hose 9,5x19,5
L=900 mm
12005
X
CROSS TRAVERSE WITH 2x2 SUCTION PAD SUSPENSION (SET)
Art. no. 408501
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
4
Sping cotter pin
3mm double
1007
1-B
2
Securing pin with cable
Ø16x120, Lc=500
408014
1-C
4
Suspension suction pad
40x40
402091
1-D
4
Disc screw
M8x63
280208
1-E
1-F
1-G
