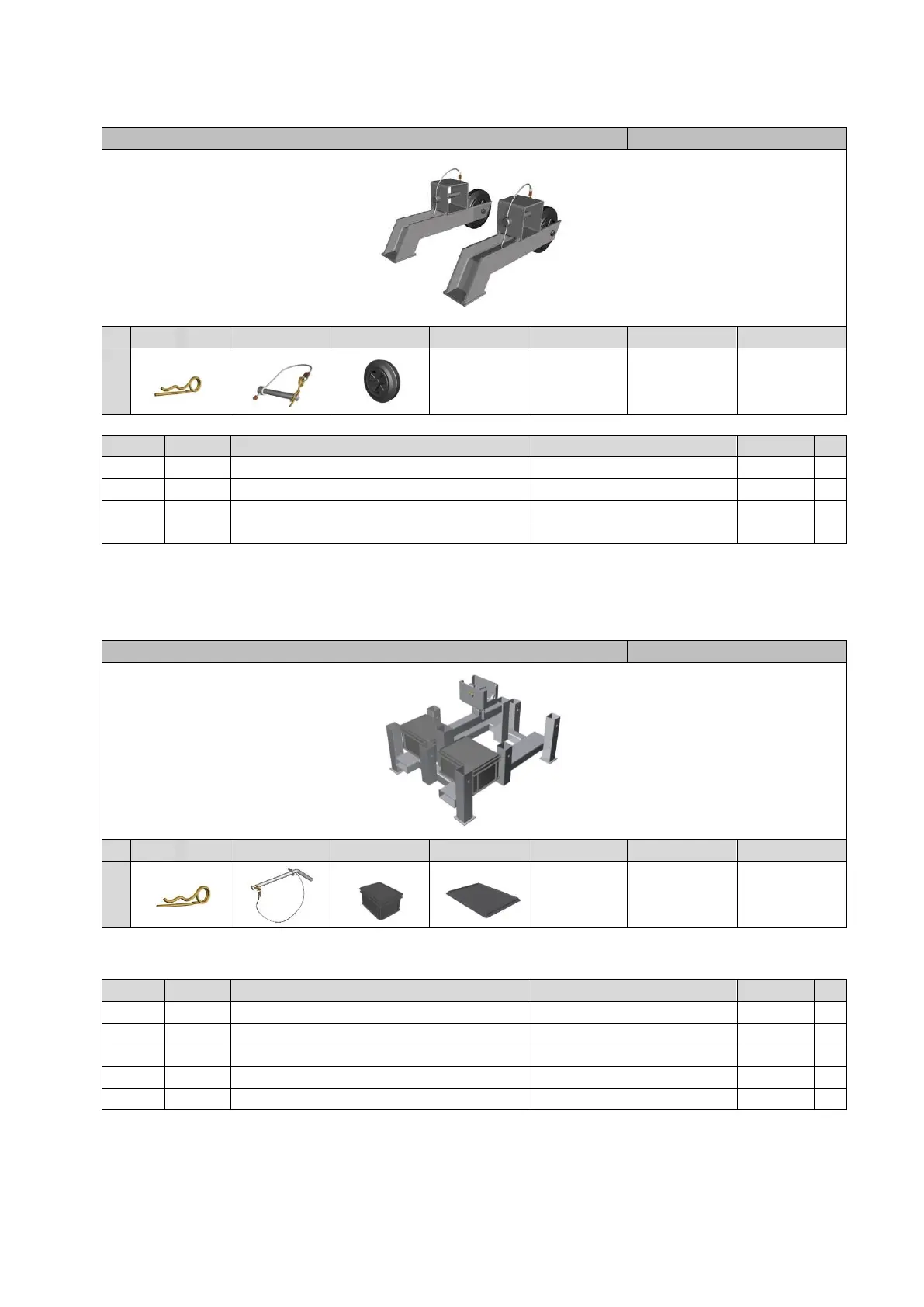

TRANSPORT WHEEL (SET)
Art. no. 408011
A
B
C
D
E
F
G
1
X = Recommended spare part
X = Recommended spare part
Pict.
Quan.
Description
Type
Art. no.
A
1-A
2
Spring cotter
3,55mm double
1007
1-B
2
Securing pin with cable
Ø16x120, Lc=400
408015
1-C
2
Wheel
Ø160x40
39003
1-D
TRANSPORT FRAME
Art. no. 408012
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
1
Spring cotter
3,5mm double
1007
1-B
1
Securing pin bended without loop
Ø16x210, Lc=570
408013
1-C
2
Box
400x300x220
294117
1-D
2
Cover for box
400x300
32005
