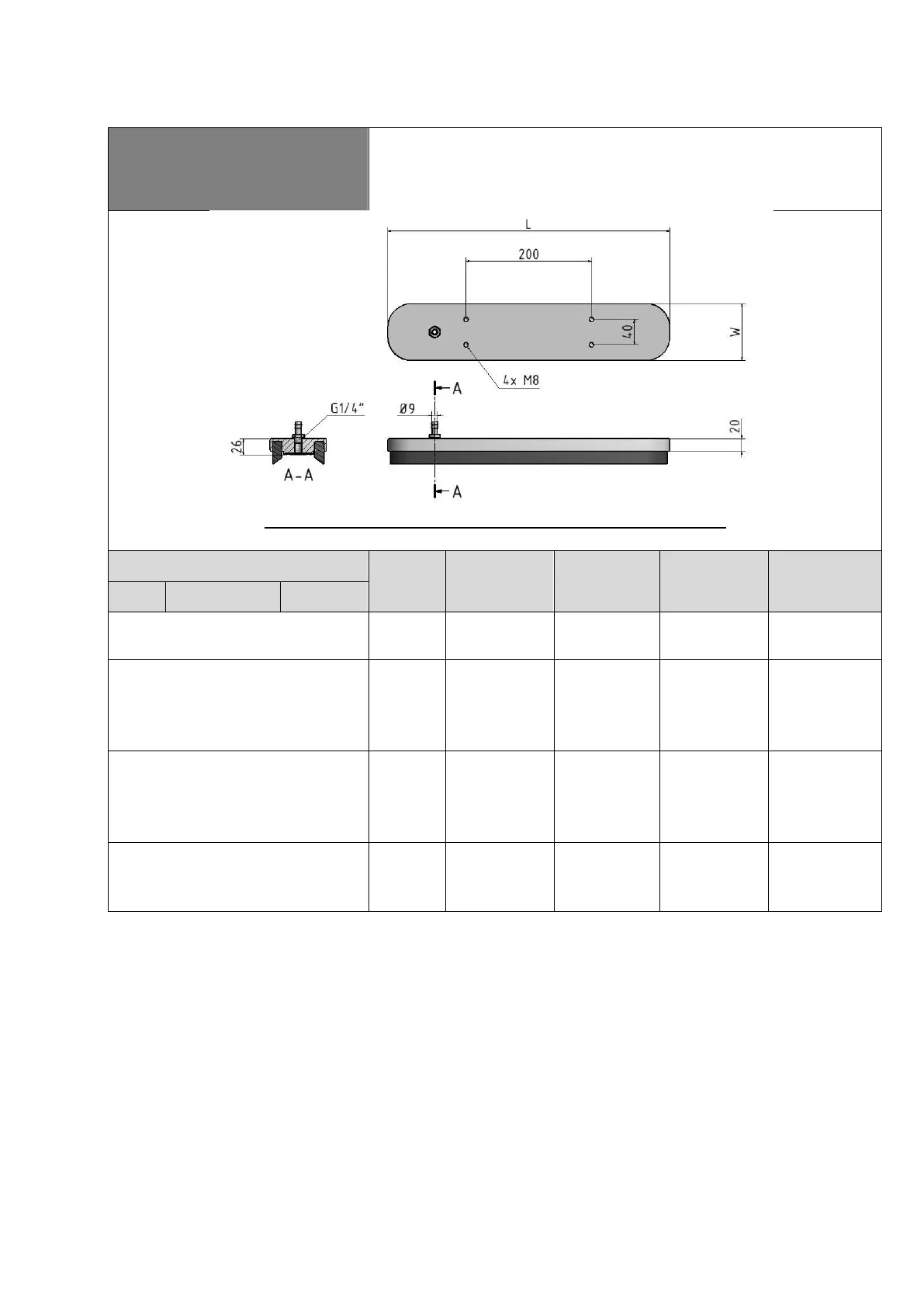

SP1
Suction pad 1
Aluminum with groove 15x15 for exchangeable seal
type
L seal
Fhor (kg)
Fver (kg)
art. no.
remark
pad
W x L
seal
SP1
70x570
S1
1180
80
40
402092
408025
A
B
S2
SP1
90x550
S1
S2
S3
S6
1180
120
60
402087
408020
-
-
A
B
C
E
SP1
110x530
S1
S2
S3
S6
1180
150
75
402502
264116
-
-
A
B
C
E
SP1
150x490
S1
S2
S4
1180
200
100
408023
408024
-
A
B
D
Fhor = Horizontal lifting capacity at 0,6 bar vacuum level with 2 fold safety margin.
Fver = Vertical lifting capacity at 0,6 bar vacuum level with 2 fold safety margin.
Remark
A Sealing ring compensates op to 5mm profiling D Sealing ring for roof tray’s type 135
B Sealing ring compensates op to 3mm profiling E Sealing ring for roof tray’s type 106 SAB
C Sealing ring for roof tray’s type 106, 153 & 158
