Vibration Research VR9500 Hardware Description Manual

© 2019 Vibration Research Corporation is a registered trademark in the United States and other countries.
4

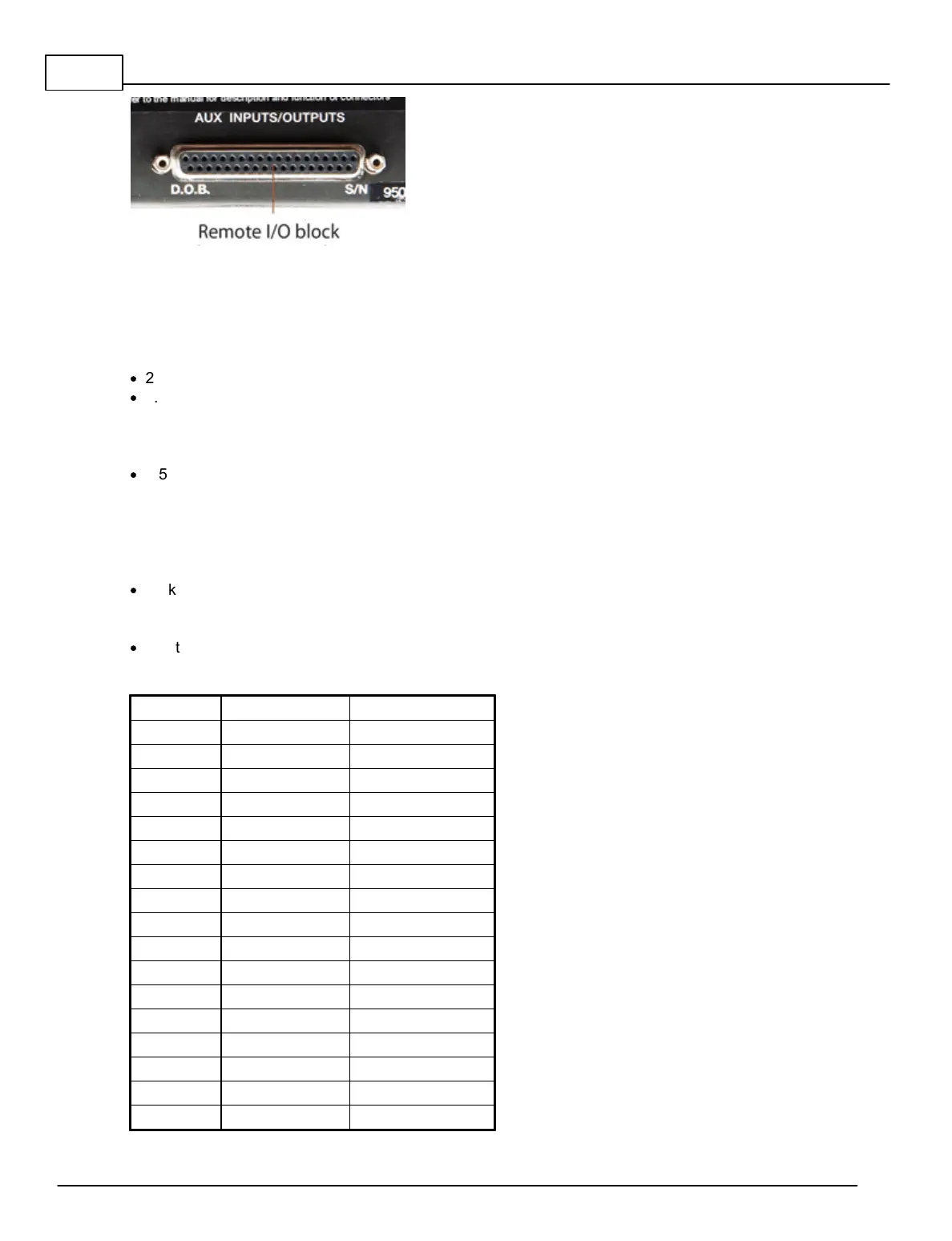

9500 Hardware Description
Inputs are 10VPeak inputs, with provision to read nominal TTL signals. Outputs are Nominal TTL voltage levels
and require external conditioning to drive high voltage and high current devices.
Output #1 to Output #8 HIGH voltage
Output "HIGH" (active):
· 2.5V minimum at 3mA source current
· 2.0V minimum at 32mA source current
Output #1 to Output #8 LOW voltage
Output "LOW" (inactive):
· 0.55V maximum at 64mA sink current
FET Output #7 and FET Output #8
The two FET Outputs allow driving high current SELV DC devices directly.
Output "HIGH" (active):
· Sink up to 1.5 amps to Logic Ground
Output "LOW" (inactive):
· Floating output
Pinout Information
Pin No
Function
Description
1
RDISIN1
Input #1
2
RDISIN2
Input #2
3
RDISIN3
Input #3
4
RDISIN4
Input #4
5
RDISIN5
Input #5
6
RDISIN6
Input #6
7
RDISIN7
Input #7
8
RDISIN8
Input #8
9
LGND
Logic Ground
10
LGND
Logic Ground
11
LGND
Logic Ground
12
ODIS1
TTL Output #1
13
ODIS3
TTL Output #3
14
ODIS5
TTL Output #5
15
ODIS7
TTL Output #7
16
LGND
Logic Ground
17
N/C
No Connect
