VR9500 Hardware Description
© 2019 Vibration Research Corporation is a registered trademark in the United States and other countries.
5
18
LGND
Logic Ground
19
XESTOP_LOW
E-STOP IN
20
AGND
Analog Ground
21
AGND
Analog Ground
22
AGND
Analog Ground
23
AGND
Analog Ground
24
AGND
Analog Ground
25
AGND
Analog Ground
26
AGND
Analog Ground
27
AGND
Analog Ground
28
N/C
No Connect
29
DISIN_BIAS
+5 VDC
30
LGND
Logic Ground
31
ODIS2
TTL Output #2
32
ODIS4
TTL Output #4
33
ODIS6
TTL Output #6
34
ODIS8
TTL Output #8
35
HVHC_ODIS9
FET Output #7
36
HVHC_ODIS10
FET Output #8
37
XESTOP_MID
E-STOP IN

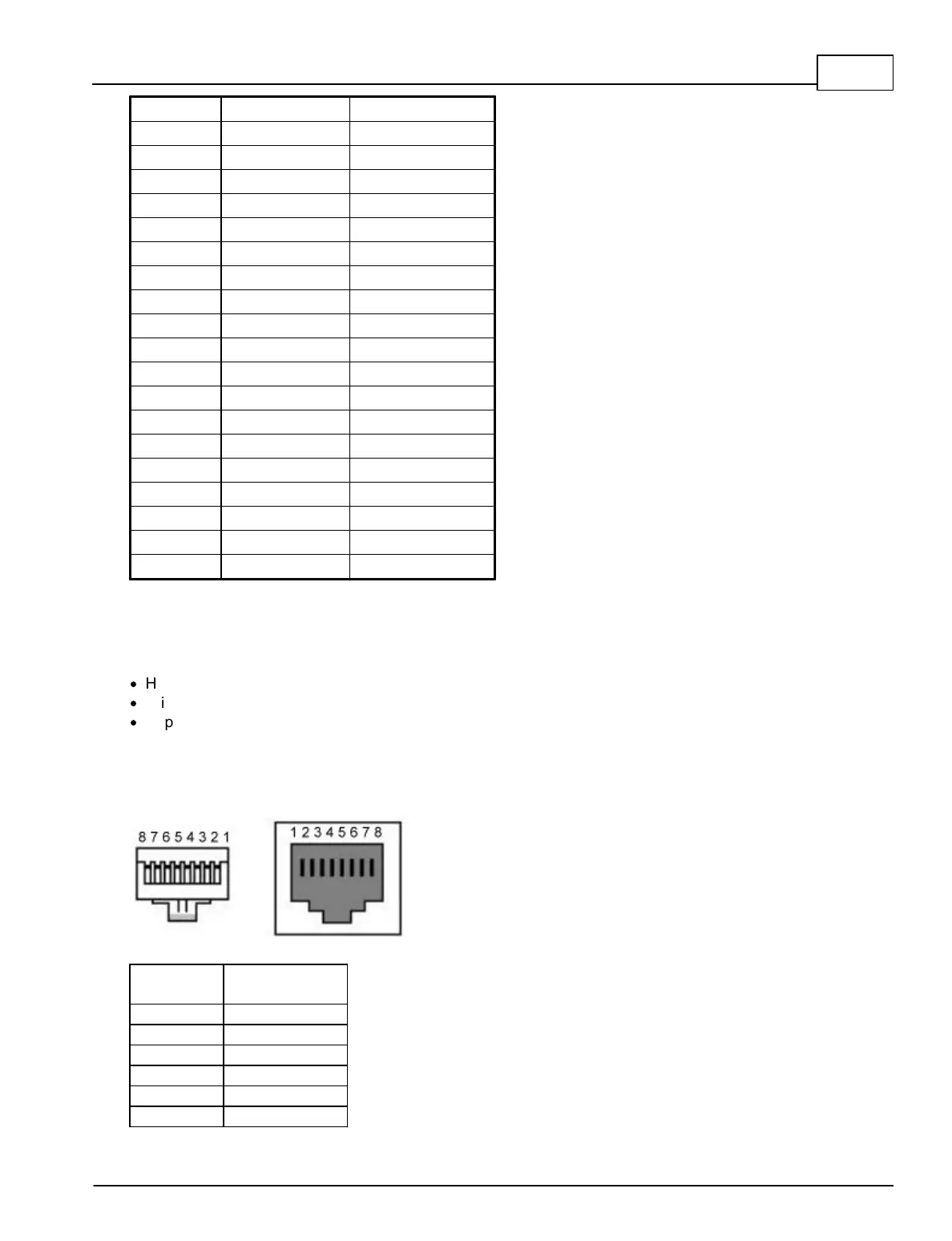

1.3 Physical Dimensions
Physical dimensions of the VR9500 controller:
· Height — 1.75" (44.45mm) (1U)
· Width — 15" (381mm) (19" rack mount with included brackets)
· Depth — 9.5" (242 mm)
1.4 RJ45 Connections
The 10/100BASE-T ports are copper Twisted-Pair ports.
RJ45 Pin Number Allocation for Ethernet Port
Pin No
Function
1
TxRx 1+
2
TxRx 1-
3
TxRx 2+
4
TxRx 2-
5
TxRx 3+
6
TxRx 3-

Vibration Research VR9500 Specifications

General

Brand	Vibration Research
Model	VR9500
Category	Controller
Language	English
