VT8350 [ User Interface Guide ]
Service View Screens
The service view screens show the current status of certain points locally on the Room Controller. These points can also be
viewed through the network. Service view values are Read Only values but allow a service contractor to visualize the status of
key functionality to correctly diagnose operational system issues.
PARAMETER DETAILS
Conguration Parameters Default Value Signicance and Adjustments
Room temp.
Read Only
Room Temperature
Shows the current room temperature from the congured temperature source.
UI19 changeover|
Read Only
Changeover Temperature Sensor
Shows the temperature of the changeover sensor connected to UI19 terminal.
UI20 temp.
Read Only
Room Temperature Sensor
Shows the temperature of the sensor connected to UI20 (RS) terminal.
Outdoor temp.
Read Only
Outdoor Temperature
Shows the outdoor temperature on the main screen.
Room humidity
Read Only
Room Humidity
Shows the current room humidity percentage from the congured humidity
source.

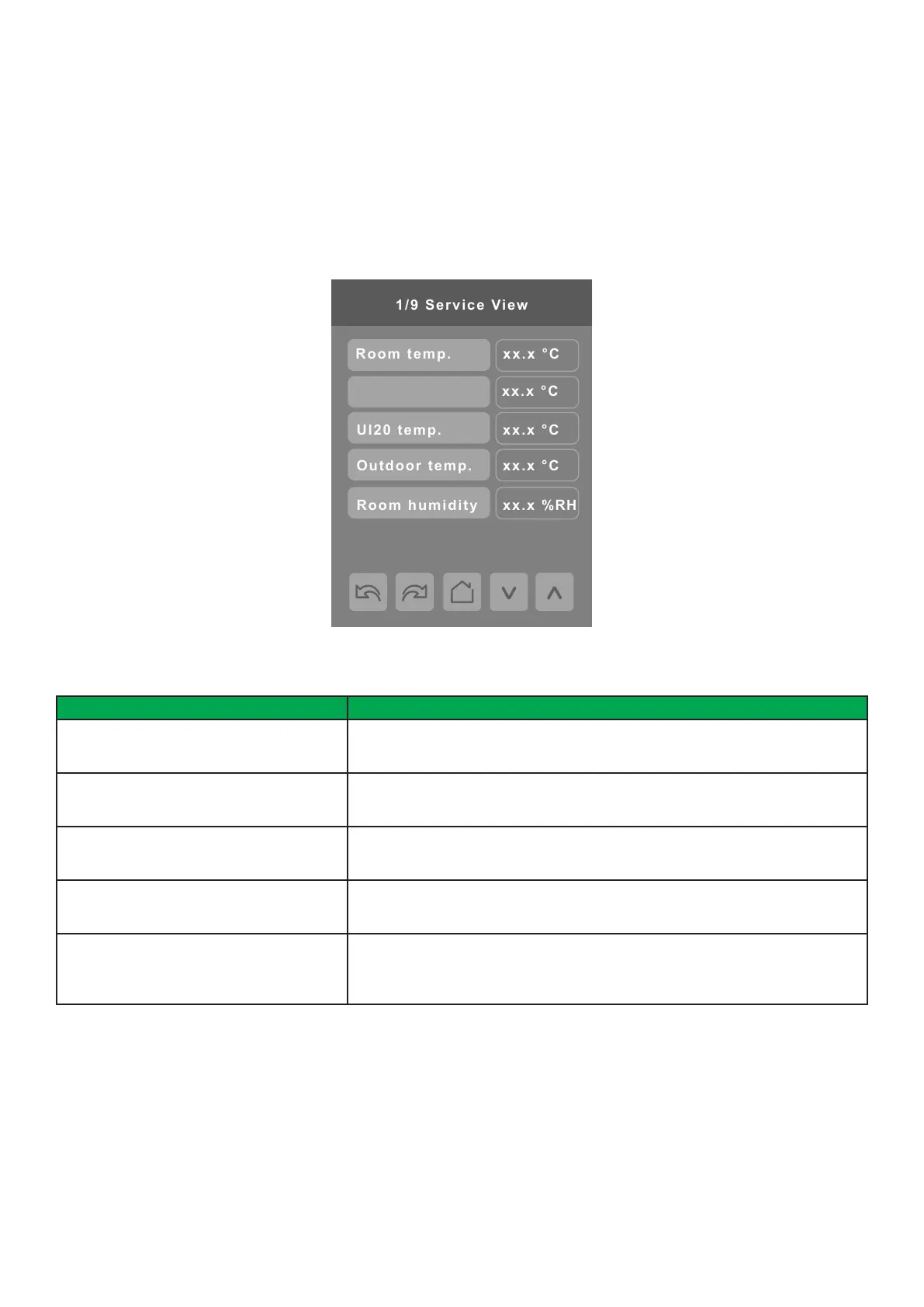

SERVICE VIEW 1/9
Room temp.
1/9 Service View
xx.x °C
xx.x °C
Outdoor temp.
xx.x °C
UI20 temp.
xx.x %RH
Room humidity
xx.x °C
UI19 changover
