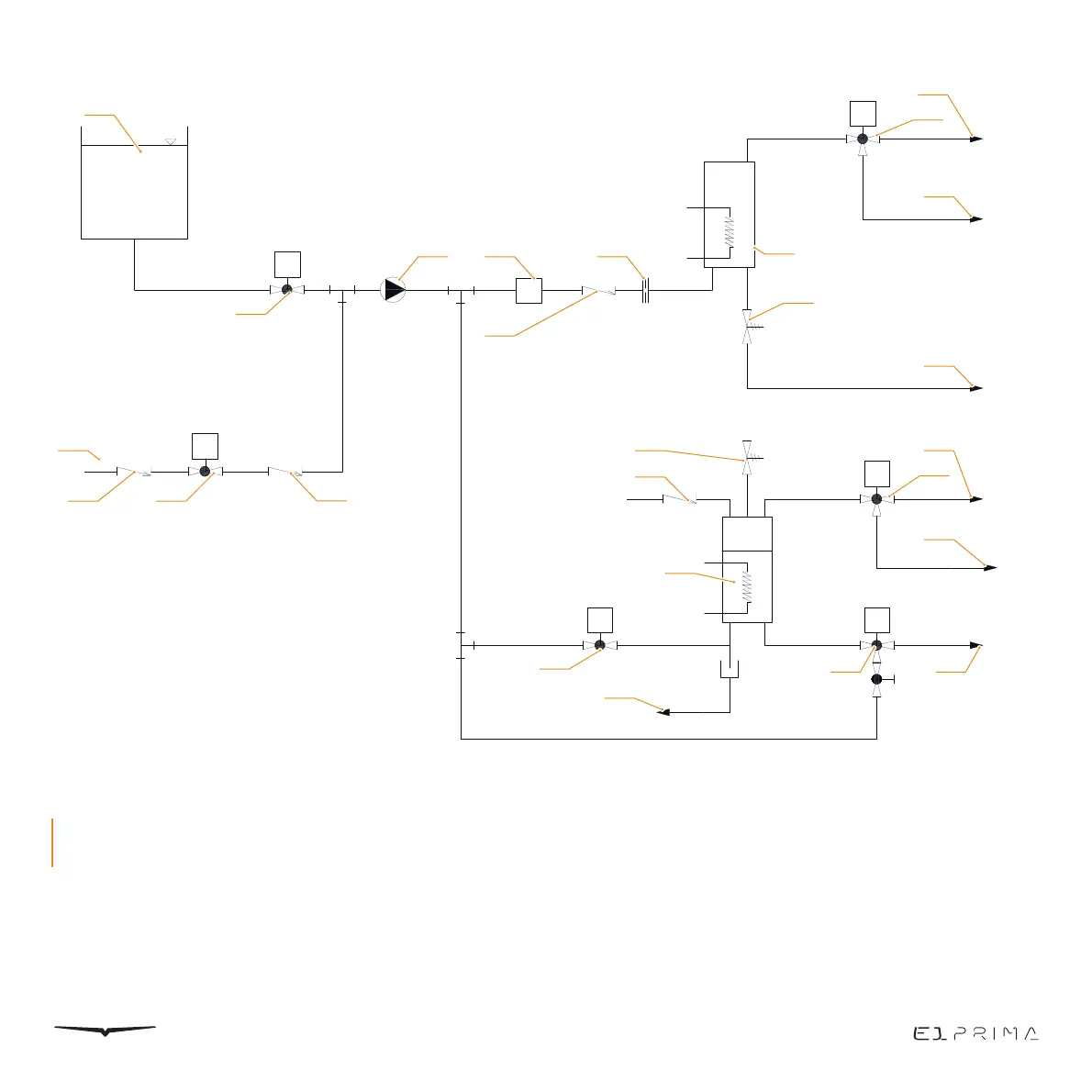

12.2

HYDRAULIC

DIAGRAM

1 Tank

2 Tank solenoid valve

3 Water mains

4 Non-return valve

5 Water stop solenoid

valve

6 Pump

7 Flowmeter

8 Calibrated orifice

9 Coffee boiler

10 Security valve

11 To the filter-holder

12 Delivery solenoid valve

13 Discharge in tray

14 Steam solenoid valve

15 To the steam wand

16 Anti-vacuum valve

17 Steam boiler

18 Level solenoid valve

19 Hot water solenoid valve

with tap

20 To the hot water wand

7 8

19 20
