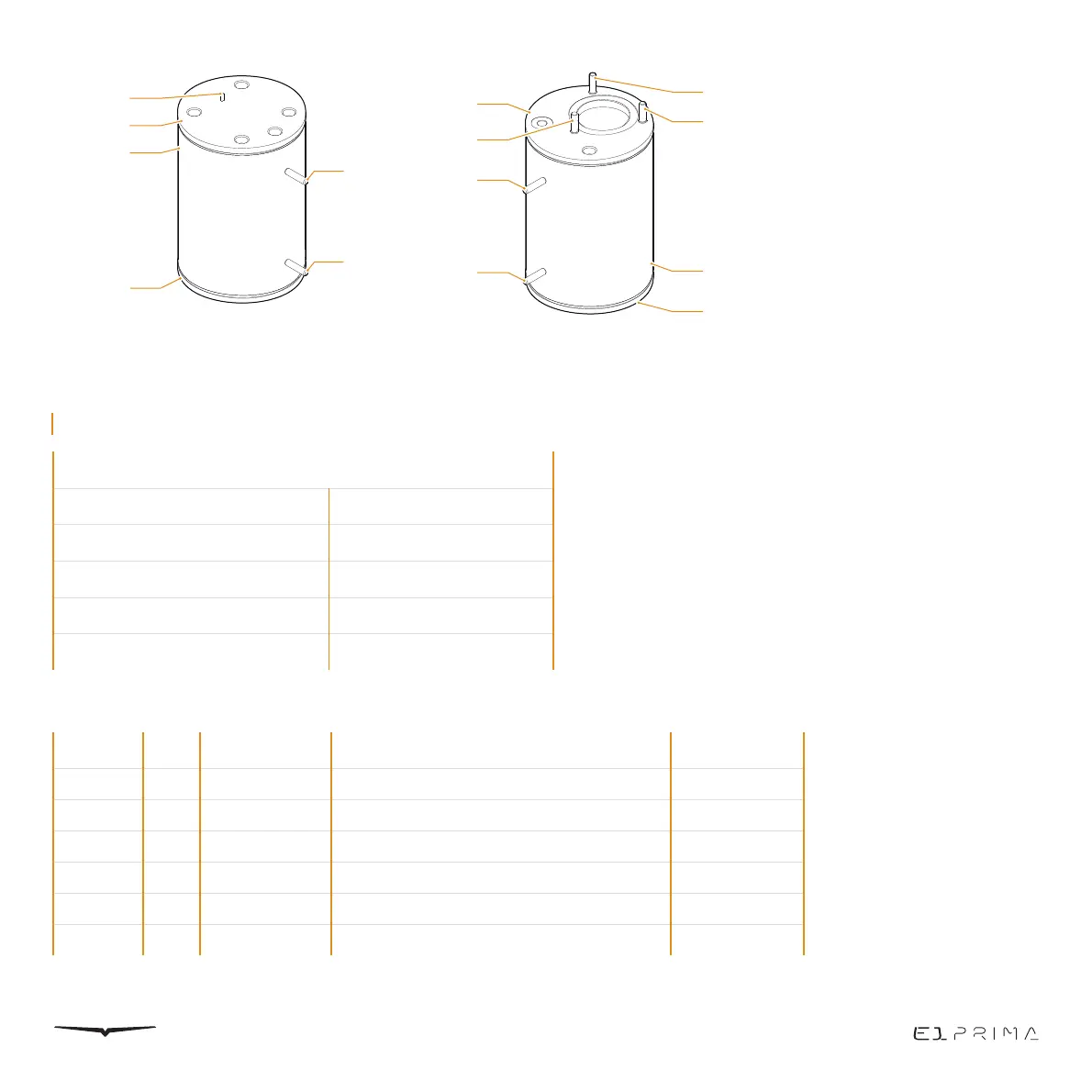

EAGLE ONE PRIMA | LIBRETTO ISTRUZIONI - USER HANDBOOK - MANUEL D’INSTRUCTIONS | 73
12.3
BOILER DIAGRAM
PROJECT DATA FOR DIRECTIVE PED 97/23/CE
VOLUMES 1,5 l
TS 139°C
P.V.S. 2.5 Bar
PT 4 Bar
FLUID H2O
ELEMENT QTY PART NUMBER DESCRIPTION MATERIAL
1 1 98031201 Lower flange
2 1 98031201 Boiler body INOX AISI 316L
3 1 98031201 Upper flange INOX AISI 316L
4 2 00080750 M6x25 Captive screw INOX
5 1 00080800 M3x8 Captive screw INOX
6 3 00081410 M6x20 Captive screw INOX
5
3
2
1
4
1
6
4
4
4
3
2
6
6
