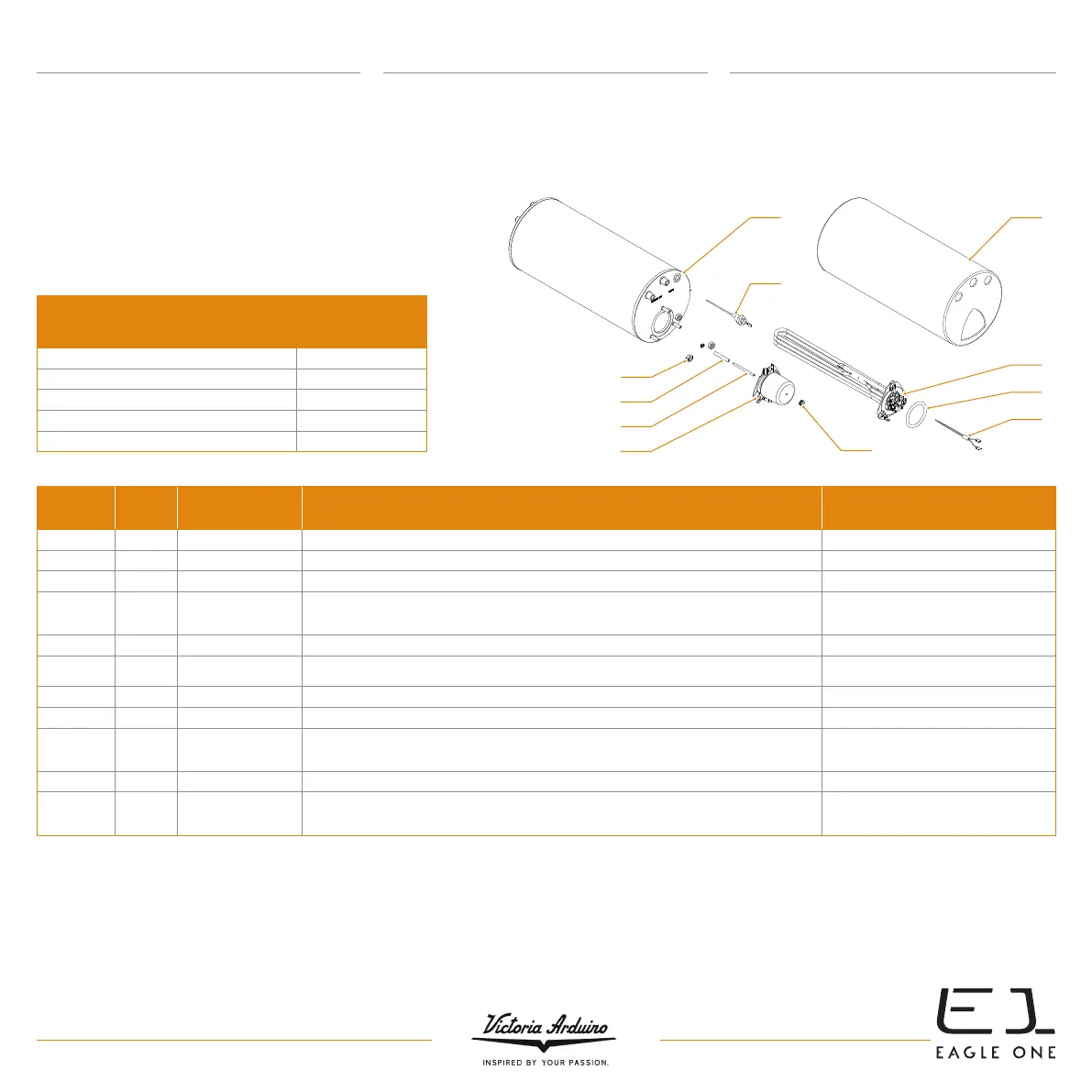

SCHÉMA CHAUDIÈRE
2 GROUPES
EN
12.4
BOILER DIAGRAM
2 GROUPS
IT
12.4
SCHEMA CALDAIA
2 GRUPPI
Elemento
Element
Élément
Q.tà
Q.tà
Q.tà
Numero Parte
Part Number
Numéro Partie
Descrizione
Description
Description
Materiale
Material
Matériau
1 3 00000056 Dado / Nut / Écrou INOX 304
2 1 11740001 Tubo / Pipe / Tube Teflon
3 1 07300707 Prigioniero / Prisoner / Prisonnier OT57
4 1 05000656
Copriresistenza cilindrico
Cylindrical heating element cover
Couverture de résistance cylindrique
NYLON
5 1 05000037 Ghiera filettata / Threaded ring nut / Bague filetée NYLON
6 1 09500015
Termoprotettore 184°C / Thermoprotector 184°C
Thermoprotecteur 184°C
Elettrico / Electrical / Electrique
7 1 02290034 Guarnizione OR / OR Gasket / Joint OR VITON
8 1 14100100 Resistenza 3000W / Heating element 3000W / Résistance 3000W INOX 304
9 1 01000638
Isolante caldaia
Boiler insulation
Isolation de la chaudière
Isolante alte prestazioni
High performance insulation
Isolation haute performance
10 1 98031202 Caldaia / Boiler / Chaudiere INOX 304
11 1 09000005 Sonda livello / Level probe / Sonde de niveau
Ottone, inox, nylon
Brass, inox, nylon
Laiton, inox, nylon
DATI PROGETTO DIRETTIVA PED 97/23/CE
PROJECT DATA FOR DIRECTIVE PED 97/23/CE
DONNÉES PROJET DIRECTIVE PED 97/23/CE
VOLUME / VOLUMES / VOLUMES 7 l
TS 130.5°C
P.V.S. 1.8 Bar
PT 2.7 Bar
FLUIDO / FLUID / FLUIDE H
2
O
1
2
3
4
11
10 9
8
7
6
5
