Pedal Adjustment
The brake pedal and gear shift pedal controls can be adjusted
to a front, rear or center position. The center position is the
factory setting.

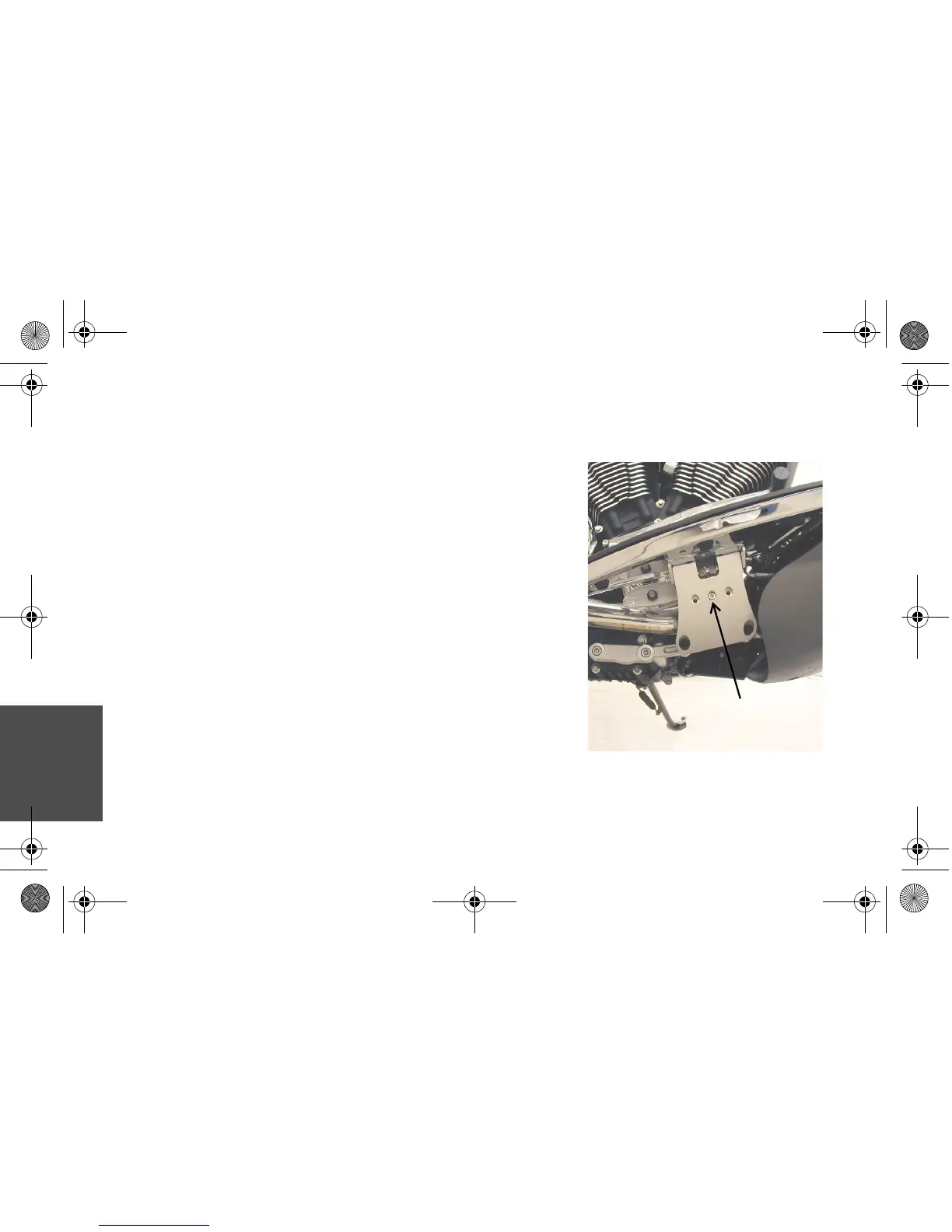

1. Remove the screw from the footwell support.
Tool: 6 mm Allen wrench
2. Slide the control forward or rearward in its track until
the threaded hole of the control aligns with the desired
hole in the footrest support.
3. Reinstall the screw.
Torque: 96 in-lbs (11 Nm)
4. After adjusting the shift pedal, always readjust the shift
linkage rod. Loosen both jam nuts on the linkage and
turn the shaft until the footpeg is about 90 mm from the
floorboard (or to desired height). Tighten both jam nuts.
Torque: 96 in-lbs (11 Nm).
