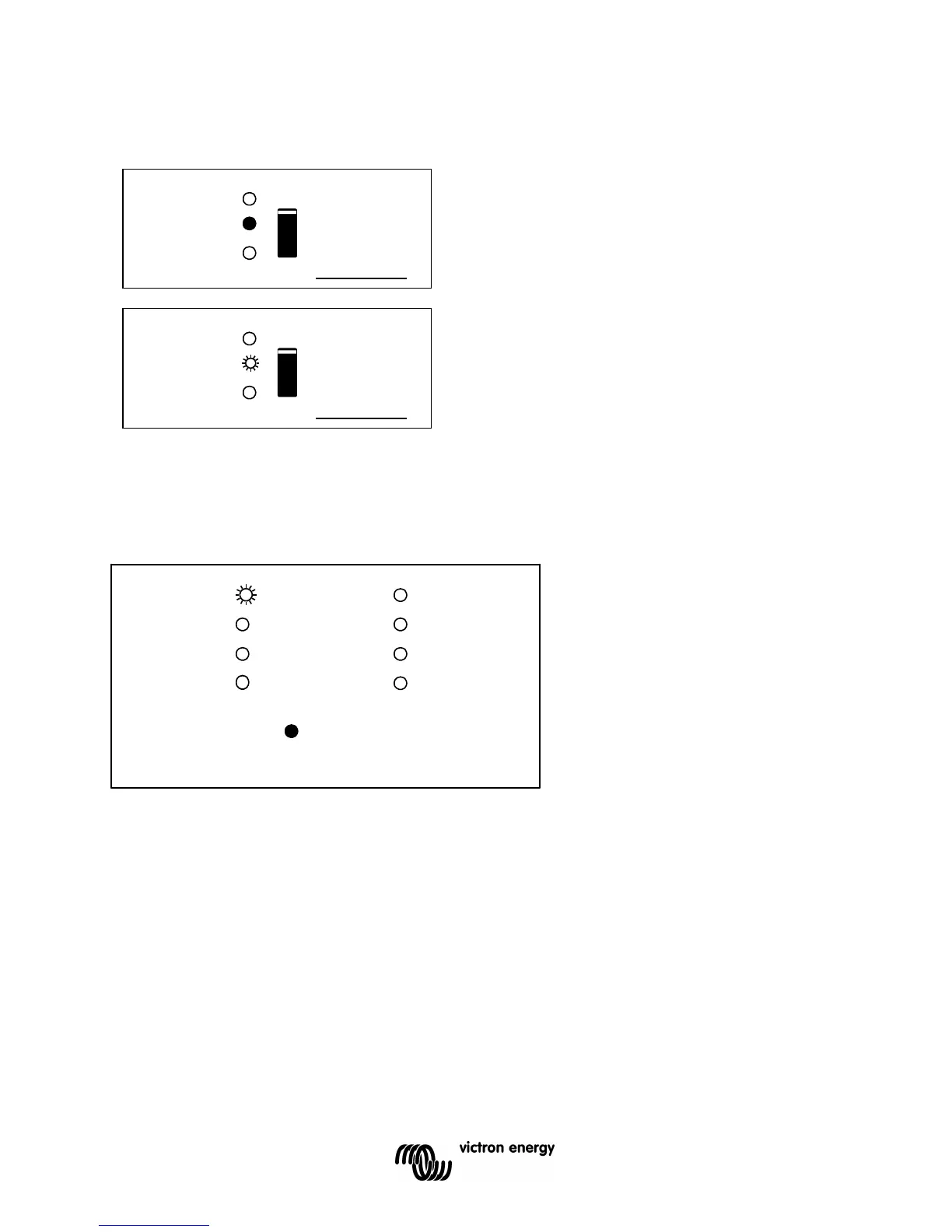

The AC input voltage is switched through
and the charger operates in bulk or
absorption mode.
inverter
on
charger
off
alarm
charger only
The AC input voltage is switched through
and the charger operates in float mode.
inverter
on
charger
off
alarm
charger only
Remote Control panel (optional)
Power Control and PowerAssist indication
inverter on
mains on
overload
bulk
low battery
absorption
temperature
float
on
charger only
off
Note: When the LED’s “overload” and “low battery” are on simultaneously, the Multi(Plus) or
Inverter Compact has switched off due to excessive DC ripple voltage.
