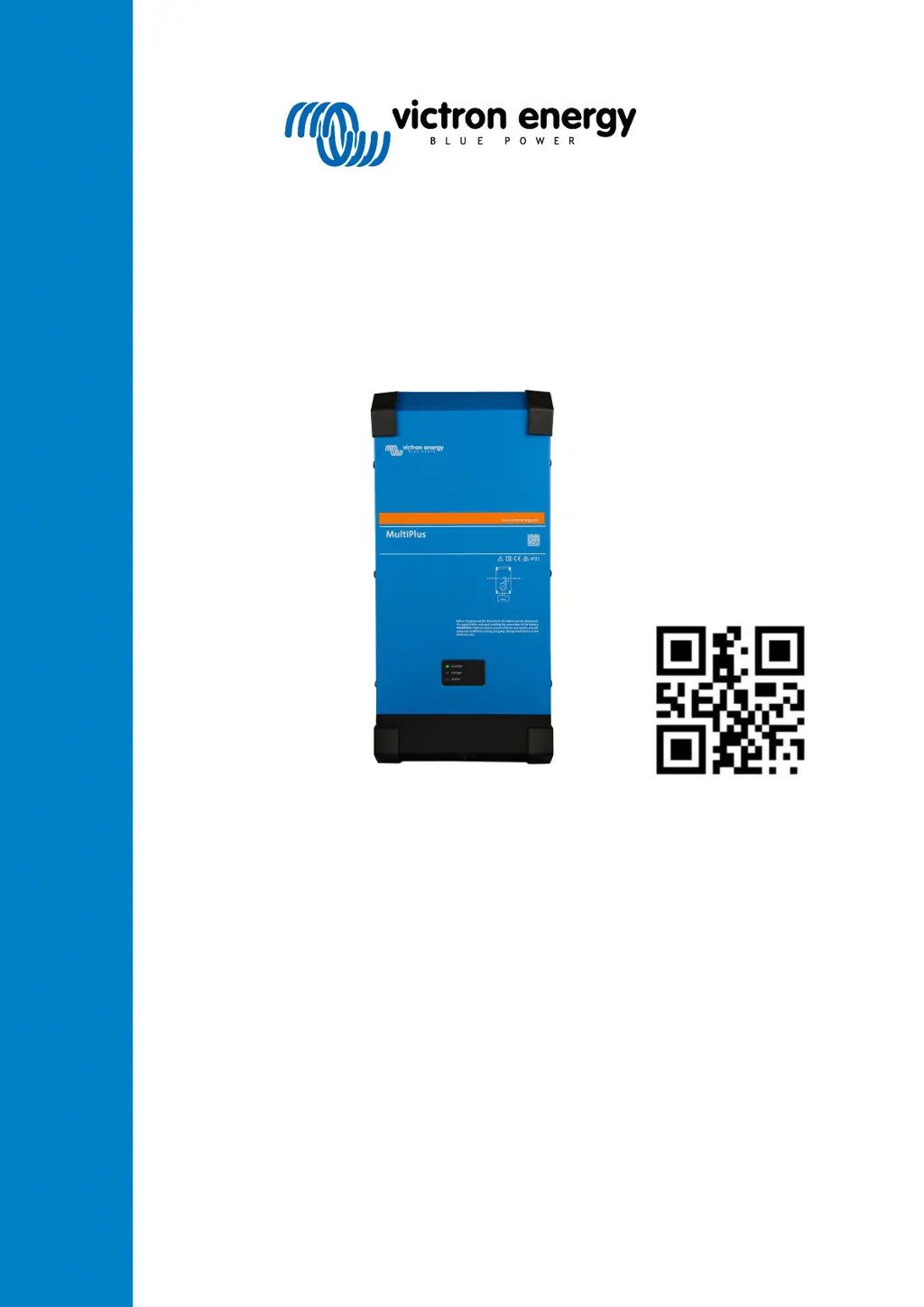

Victron energy Multiplus

Other manuals for Victron energy Multiplus

Quick Guide12 pages

Operational Manual7 pages

Questions and Answers

L
lori60Jul 28, 2025
Why is my Victron energy Multiplus alarm LED flashing?
- D
  Denise GreerJul 28, 2025
  The alarm LED might be flashing due to several reasons: * The DC input voltage is low: Charge the battery or check the battery connections. * The ambient temperature is too high: Place the inverter in a cool and well-ventilated room, or reduce the load. * The load on the inverter is higher than the nominal load: Reduce the load. * Voltage ripple on the DC input exceeds 1.25Vrms: Check the battery cables and terminals and the battery capacity; increase capacity if necessary. * Low battery voltage and excessive load: Charge the batteries, reduce the load, install batteries with a higher capacity, and use shorter/thicker battery cables.
K
Karen LopezAug 4, 2025
What to do if my Victron energy Inverter battery is not being charged fully?
- S
  Sonya MartinAug 5, 2025
  If the battery is not being charged fully, consider the following possible causes: * Incorrect charging current: Set the charging current at between 0.1 and 0.2x battery capacity. * A defective battery connection: Check the battery terminals. * The absorption voltage has been set to an incorrect value: Adjust the absorption voltage to the correct value. * The float voltage has been set to an incorrect value: Adjust the float voltage to the correct value. * The internal DC fuse is defective: Inverter is damaged.
K
Kevin ThompsonAug 11, 2025
What causes a Victron energy Multiplus Inverter battery to overcharge?
- C
  crystalsmithAug 11, 2025
  A battery can be overcharged due to: * The absorption voltage being set incorrectly: Adjust the absorption voltage to the correct value. * The float voltage being set incorrectly: Adjust the float voltage to the correct value. * A defective battery: Replace the battery. * The battery being too small: Reduce the charging current or use a battery with a higher capacity. * The battery being too hot: Connect a temperature sensor.
A
Amber BentleyAug 20, 2025
Why does Victron energy Multiplus Inverter battery charge current drops to 0 when the absorption voltage is reached?
- A
  Alan McmillanAug 20, 2025
  The battery charge current may drop to 0 when the absorption voltage is reached due to: * Battery overtemperature (> 50°C): Allow battery to cool down, place battery in a cool environment and check for shorted cells. * Battery temperature sensor faulty: Unplug battery temperature sensor from the MultiPlus. Reset the MultiPlus by switching it off, then wait for 4 seconds and switch it on again. If the MultiPlus now charges normally, the battery temperature sensor is faulty and needs to be replaced.

Summary

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

PERSONAL PRECAUTIONS

Details essential personal safety measures to take when working near batteries and electrical equipment.

MARINE UNIT LOCATION

Specifies safe and appropriate placement for the marine unit to prevent damage and ensure ventilation.

DC CONNECTION PRECAUTIONS

Outlines crucial precautions for connecting and disconnecting DC power to prevent hazards.

GROUNDING INSTRUCTIONS

Explains the importance and methods of proper grounding for electrical safety.

ELECTRIC SHOCK HAZARD

Highlights the risks of electric shock and necessary precautions during operation and maintenance.

Installation

Transport and Storage

Description

2.2. Battery charger

Details the adaptive 4-stage charging process, including absorption, float, storage modes, and temperature compensation.

Operation

3.1. On; Off; Charger-only Switch

Describes the function of the on/off switch and the charger-only mode for controlling operation.

3.3. LED Indications

Installation

4.1. Location

Specifies requirements for dry, well-ventilated areas and clearance for cooling the unit.

4.2. Connection of the Battery cables

Provides guidelines for connecting battery cables, including fuse, cross-section, and torque specifications.

4.3. Connection of the AC cabling

Details AC cabling connection, grounding, and protection requirements for input and output.

4.4.5. Parallel Connection

4.4.6. Three-phase operation

Configuration

5.1. Standard settings: ready for use

5.2. Explanation of settings

5.3. Configuration of the MultiPlus

Lists required hardware for configuration and introduces software tools like VE.Bus Quick Configure Setup.

5.3.1. VE.Bus Quick Configure Setup

5.3.2. VE.Bus System Configurator

5.4. Configuration with DIP switches

5.4.1. DIP switch 1 to 3

Trouble Shooting Table

Technical Data

Victron energy Multiplus Specifications

General

Transfer Switch	Yes
Dimensions	Varies by model
Weight	Varies by model
Frequency	50 Hz or 60 Hz
Protection	Overload, short circuit, over temperature, battery overvoltage, battery undervoltage
Communication	VE.Bus
Operating Temperature Range	-40°C to +65°C
Model	MultiPlus
Battery Voltage	24 VDC, 48 VDC
