2. Installation
The display connects to the display terminal on the front of the solar charger. The display terminal is located behind the plastic
cover with the text: "display option".

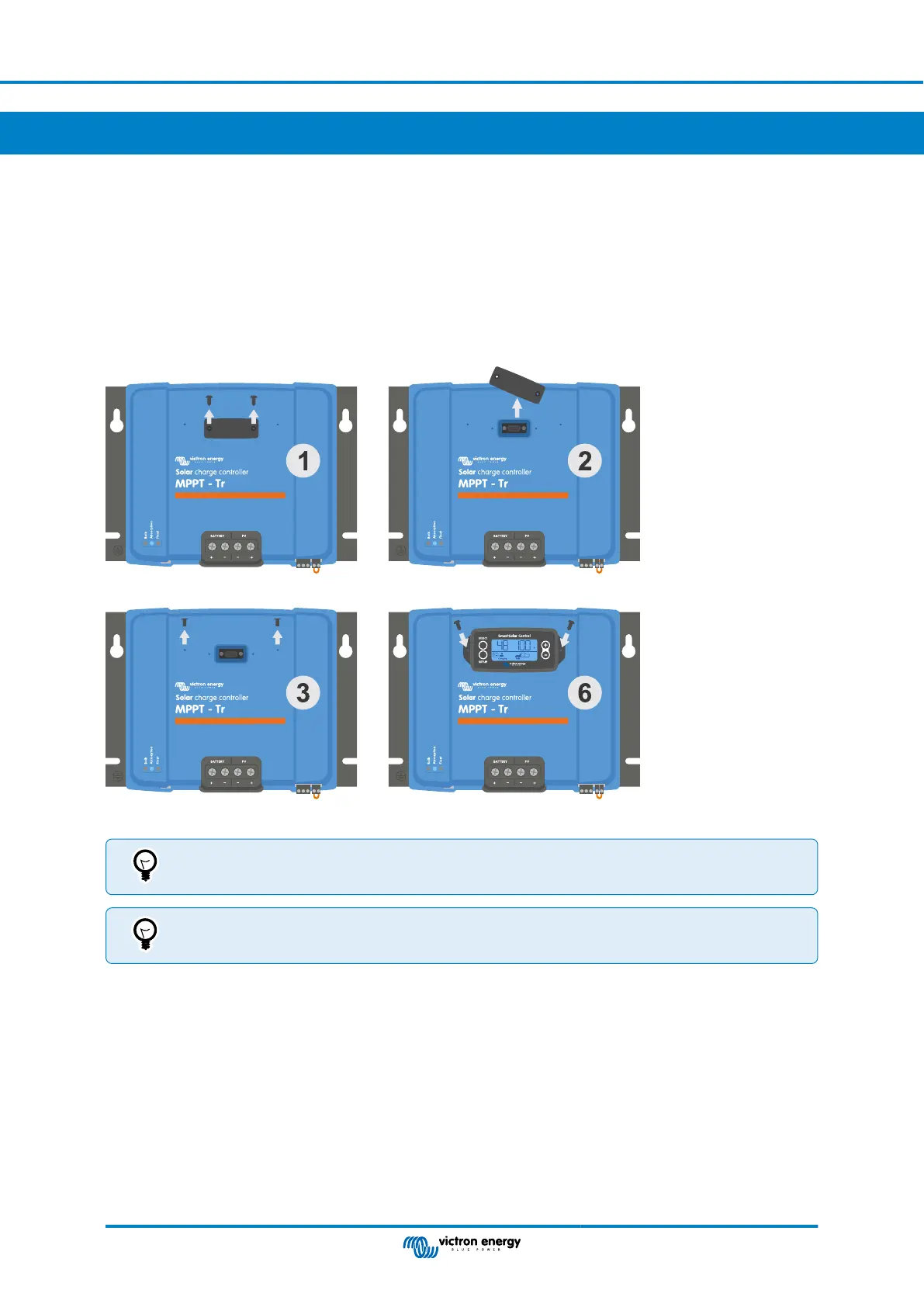

To install the SmartSolar Control display do the following:
1. Remove the two screws of the plastic cover. Keep the screws, they are needed again when securing the display.
2. Remove the plastic cover. The display terminal is now exposed.
3. Remove the two plastic plugs on either side of the display plug.
4. Remove the paper backing of the double sided tape on the back of the display.
5. Insert the display into the plug and make sure it has been inserted all the way in.
6. Screw the display down by using the two screws that were used for the plastic cover.
How and where to connect the SmartSolar Control display
If the display is used as a temporary display, it is not necessary to use the tape and to screw down the display
into the solar charger.
The display is hot-swappable, this means that the display can be plugged in or removed while the solar
charger is operating.
SmartSolar Control display manual
Page 2 Installation
