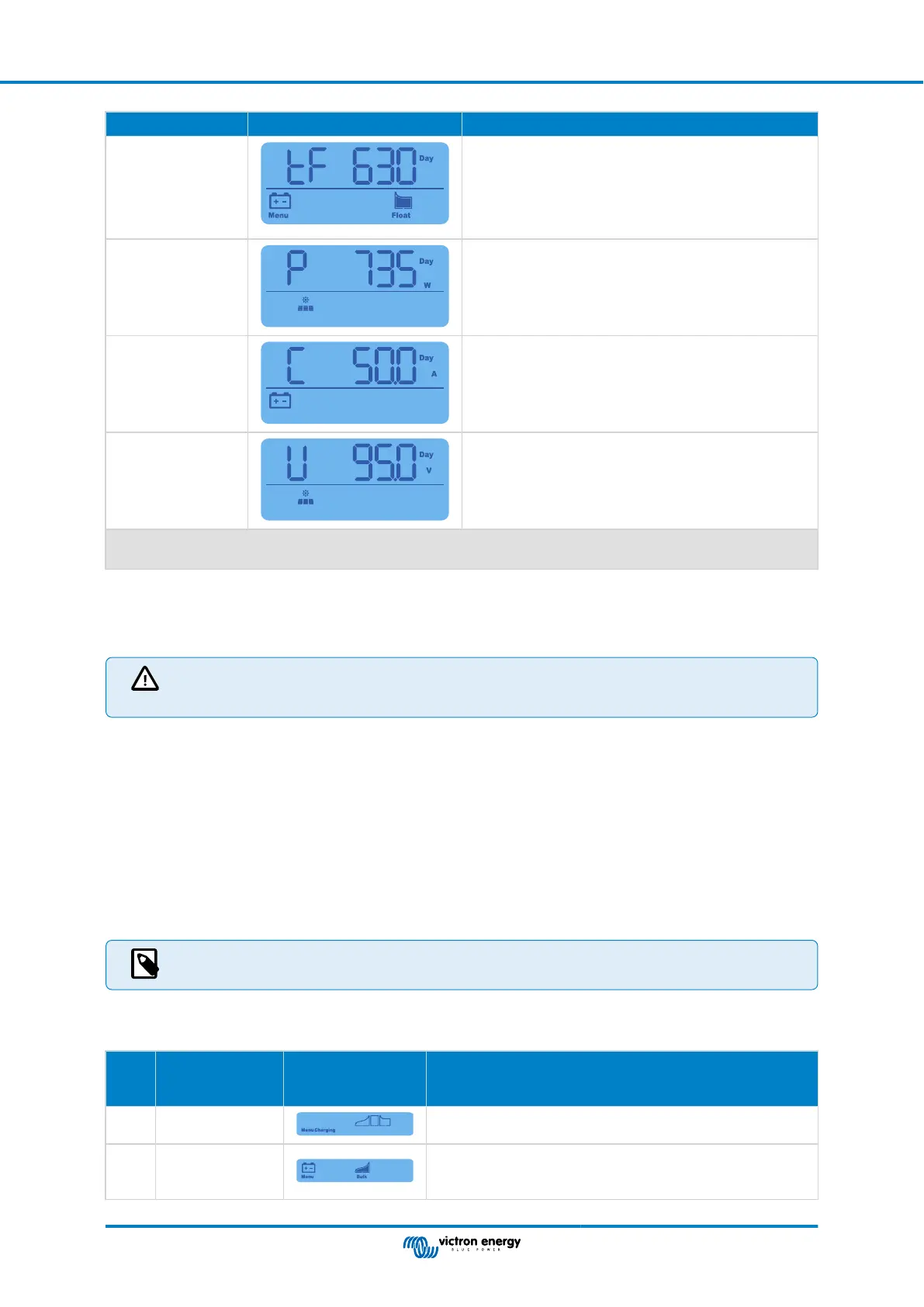

Scrolling text LCD Description
TIME FLOAT
Daily time spent in float charge stage, in minutes, available
for each day for the past 30 days. *
MAXIMUM POWER
The daily maximum PV power, available for each day for
the past 30 days.
BATTERY
CURRENT
MAXIMUM
The daily maximum battery current, available for each day
for the past 30 days.
PANEL VOLTAGE
MAXIMUM
The daily maximum PV current, available for each day for
the past 30 days.
* When the charger is not active (night time) the bulk, absorption and float icons will be shown as in the table above. When
the charger is active only one icon will be shown: the icon corresponding to the actual charge state.
3.3. Setup menu
In the settings menu the solar charger and SmartSolar Control settings can be viewed and/or changed.
Do not change settings unless you know what they are and what the effect of changing these setting can be.
Incorrect settings may cause system problems including damage to batteries. When in doubt, seek advice
from and experienced Victron Energy installer, dealer or distributor.
To navigate the settings menu:
• Press the SETUP button for 3 seconds to enter the setup menu.
• The display will show the text “Menu” and the first menu item is shown via a scrolling text.
• Navigate to the desired setting by pressing the - or + button.
• Once arrived at the desired setting press the SELECT button to view the value the setting has been set to.
• To modify this setting press the SELECT button again, the value will now blink.
• Press the - or + button to choose the desired value.
• Press SELECT to confirm the change, the value will stop blinking, and the change is made final.
• Navigate to the next menu item, or press SETUP to return to the setup menu.
• To leave the setup menu, press the SETUP button.
Any settings change via the display or the VictronConnect App will override the rotary switch setting. Turning
the rotary switch will override settings made with the display or via the VictronConnect App.
All available settings are indicated in below table, in the order they appear when scrolling through the menu, together with a basic
description and notes for each setting. For the full description of the solar charger settings refer to the solar charger manual.
Nu
mb
er
Scrolling text LCD Desription and notes
01 POWER ON OFF This setting turns the charger in the solar charger ON or OFF.
02
MAXIMUM
CHARGER
CURRENT
Sets the maximum charge current (A).
