6. SERVICE INFORMATION

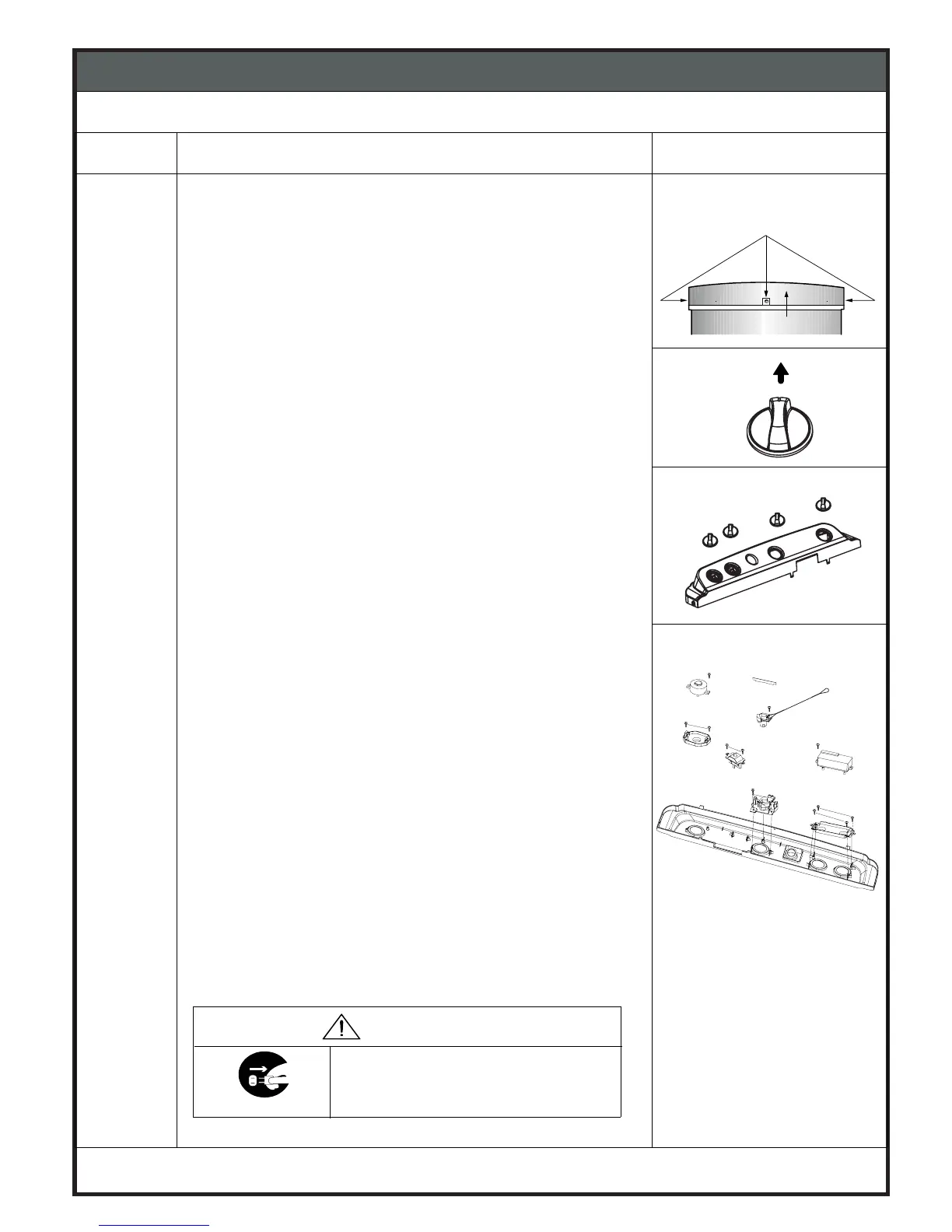

ITEM HOW TO DISASSEMBLE AND ASSEMBLE DIAGRAM
WASH TIMER
AND
SPIN TIMER
1) Disassembly of the WASH TIMER.
Using screw driver unscrew the screws from the
Panel and Tub. (Fig 1)
Lift up Panel while Pulling to theFront. (Fig 3 )
CAUTION
:Please do not apply an excessive force.
Disassemble the COCK ROD - A that is connectedto the
LEVER- A DRAIN by screw
Disassemble Knob assembled to the WASH TIMER &
SPIN TIMER, WASH SELECT OR AND CYCLE SELECTOR.
(Fig 3)
(Fig 4)
WARNING
Unplug the power cord for the work
unnecessary to power on like disassembling.
Do not hold the plug by a wet hand.
Failing to unplug may cause an electric
shock.
UNPLUG POWER
(Fig 1)
SCREW
PANEL
(Fig 2)
13
6-2. DISASSEMBLY INFORMATION
1.
2.
(Fig. 2)
3.
6.
Remove the Wash, Spin & Drain holder asm from Panel by
4.
unscrewing the screws from Panel and holder.
Remove the Wash, Spin timer from Holder by unscrewing
5.
the screws from Wash, Spin timer and holder.
Remove the Buzzer from Panel by unscrewing
7.
the screws from Buzzer and Panel.
Remove the Flat Spring from Lever A Drain
8.
(Fig 4)
SCREW
COCK ROD A
LEVER A DRAIN
SCREW
WASH TIMER
SPIN TIMER
SPIN HOLDER
DRAIN HOLDER
WASH HOLDER
WASH HOLDER
FLAT SPRINGFLAT SPRING
BUZZER
