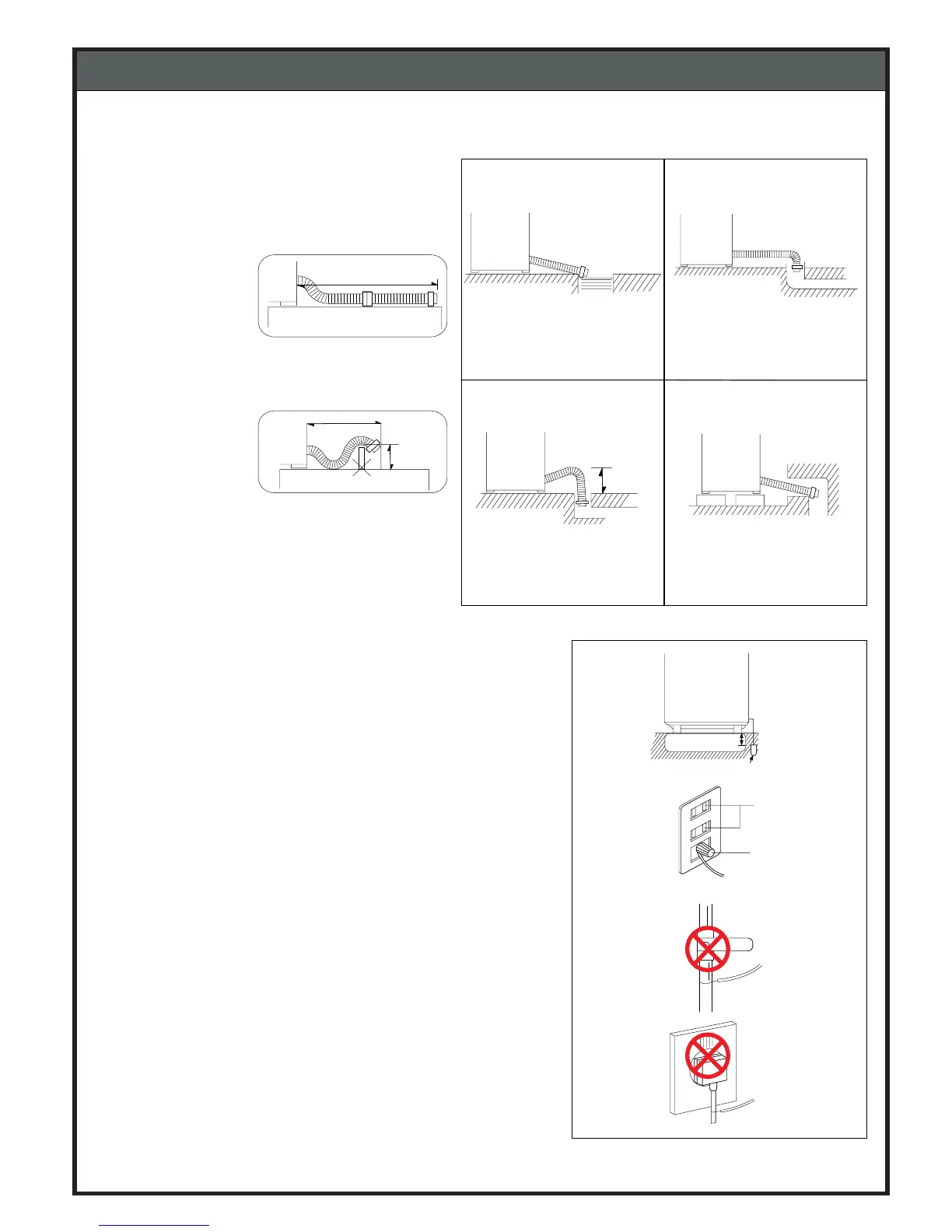

4-5. Positioning the Drain Hose
1)When there is no threshold, the length of the
drain hose should not exceed 3m.
2)When it is necessary to connect the drain hose
with the drain outlet far away, connect the
extension hose and
applicable parts
available from
dealers or service
centers.
3)
Do not install the drain hose where it must exceed
over a threshold of 3 cm or more; do not install
where there is a
threshold
and the hose
must exceed for
more than 2m.
4-6. Grounding
1) Upon installing grounding, make sure if power socket is out
of power outlet.
2) Grounding should be connected to either metal water supply
pipe or coppergrounding pole deeper than 25cmin the damp
ground.(Fig1)
3) If water pipe is a plastic, no protection is obtained from
a possible electric shock.
4)If the power outlet is available with grounding connection,
grounding in the washing machine should be firmly connected to
the connection of the outlet.(Fig2)
5)You should not connect, the grounding to the gas-pipe because
it will cause an explosion. (Fig3)
6)If the grounding is connected to either telecommunication line
or lightning-arrest line, an extreme hazard is caused therefore,
no connection should be made to such lines.(Fig4)
Do not put the end of the
drain hose into the water.
Do not place the hose upto
the floor of the drain outlet.
When the drain hose must
be positionedat a high
place, install
the washing
machine to a higherplace
Do not make the midpart of
the hose than the ends
positioned higher.
3m
2m
3 cm
GROUNDING
WIRE
GROUNDING POST
DEEPER
THAN 20cm
(FIG 1)
GROUNDING WIRE
GAS PIPE
(FIG 3)
GROUNDING WIRE
(FIG 4)
(FIG 2)
OUT LET
GROUNDING
TERMINAL
GROUND WIRE
4. INSTALLATION INSTRUCTION
8
