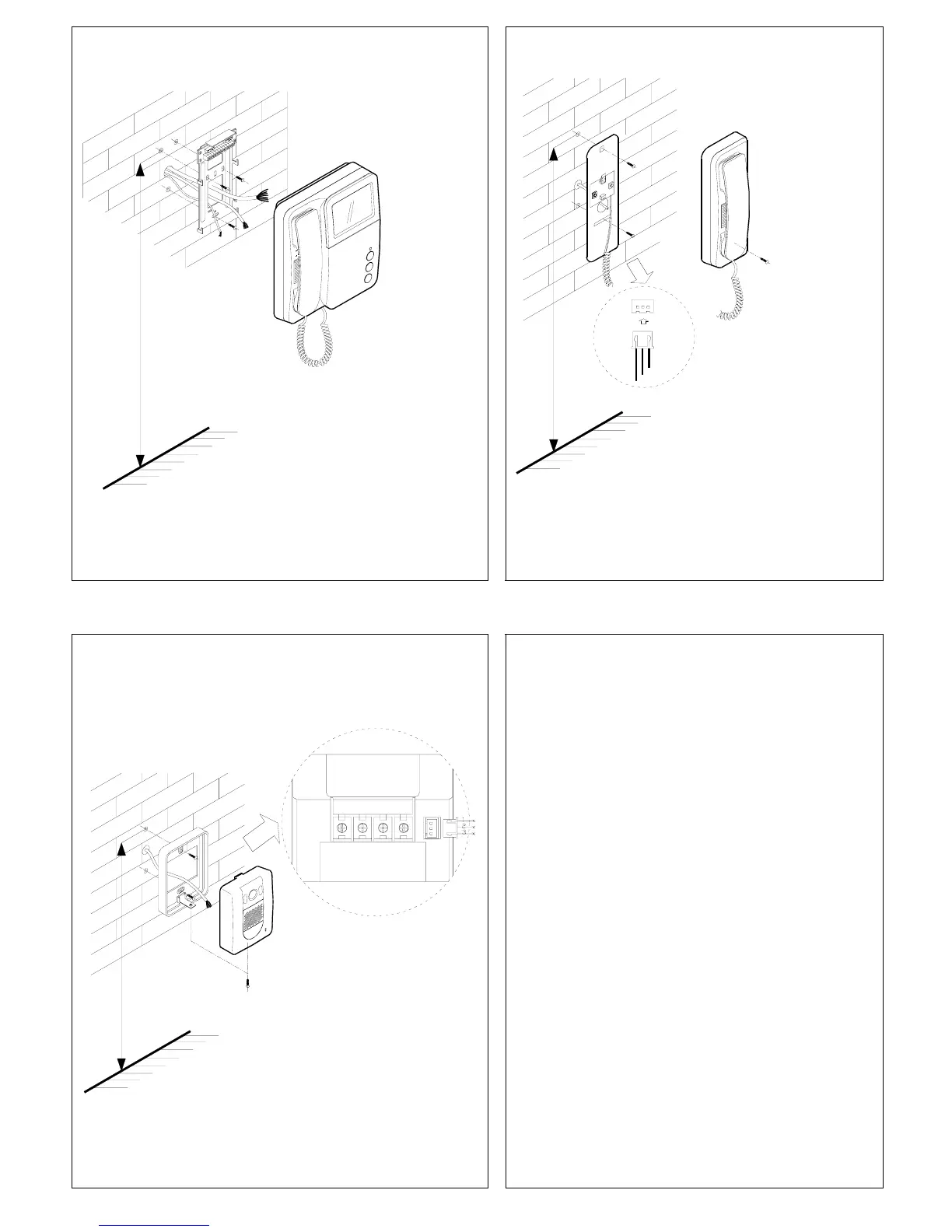

Indoor Monitor(Ref VS-902M) Installation
Fig. 1
155 Cm
Audio Handset (Ref VS-902H) Installation
Fig. 2
155 Cm
Surface Mount Camera(Ref VS-902C)Installation
4B3Y2W1R LB
155 Cm
Fig. 3
Install indoor monitor, outdoor camera or audio handset about
1.55M~1.60M from the ground and keep away from snow,
rain and direct sunlight.
NOTE : Optional angle brackets are available for surface
mount cameras
45Degree left/right : Ref VS-902AB45
15Degree left/right : Ref VS-902AB15
