VIDEOMAN VS-902 - Page 3

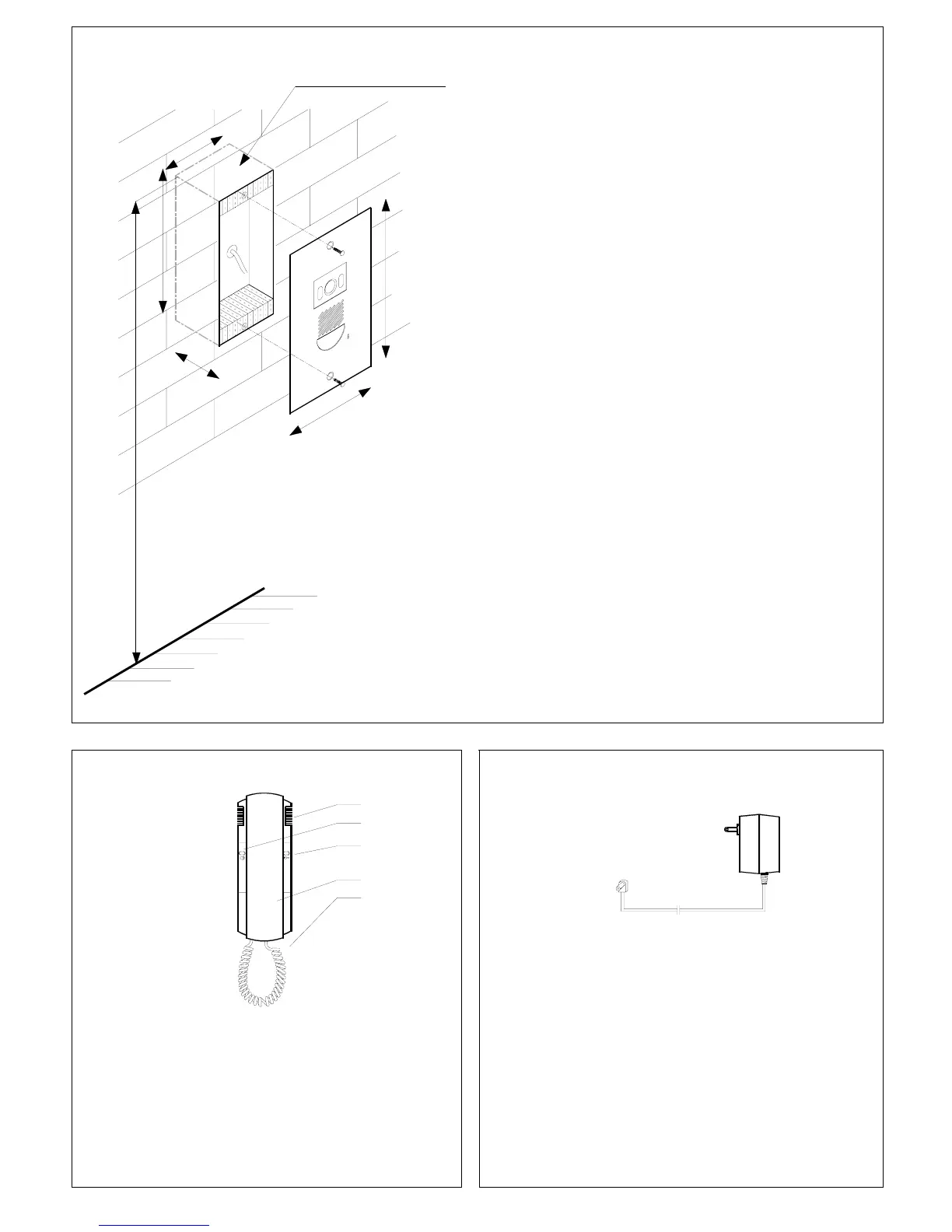

Flush Mount Camera (Ref VS-902MC) Installation
Fig. 4
160 Cm
13
0
mm
200mm
175mm
7
0
m
m
1
0
0
mm
Ref. No: VS-902EB
Dimensions
 Overall size of front panel :
130mm(W) x 200mm(H)
 Cut out size without embedding box:
100mm(W) x 130mm(H) x 60mm(D)
 Cut out size for embedding box (Ref VS-902EB):
100mm(W) x 175mm(H) x 70mm(D)
Descriptions of Audio Handset (Ref VS-902H)
1
3
4
5
2
Dimension: 215(H)x80(W)x45(D)
Fig. 5
Descriptions of Power supply (Ref VS-902PSU)
Fig. 6
16V DC 800mA SAA Approved
1. Loud Speaker for Ring Tone
2. “Intercom-Call” button
3. “UNLOCK” button
4. Handset
5. Spiral cord
The adaptor is only supplied with VS-902 and VS-952
( -- ) : Black wire : Surround
( + ) : White Stripe : Centre
For 240V AC model (Ref. VS-902PM, Ref.VS-952PM) connect the
monitor directly to 240V AC mains without 16V DC power supply
(Ref.VS-902PSU)
