Videx 2291A - Earthing the Cabinet; Wiring Internal Cabinet Components

CONTROL CABINETS - TECHNICAL MANUAL EN-UK - V.1.3 - 14/07/16
VI
DE
X
31
AUDIO & VIDEO CONTROL CABINETS
FUSE
N
L
Mains
1 PHASE SUPPLY
(220 - 240Vac, 50/60Hz)
SWITCHED FUSE SPUR
LN
230 VOLTS
FUSE VALUE
T3.15A
EARTHING THE CABINET
Before wiring any internal components of the cabinet please ensure that the mains power supply to the
cabinet is switched OFF. The wiring of the internal components can be made following the technical wiring
diagrams that are supplied with the system. Once all connections are made and checked within the cabinet
and the connections from the cabinet to any external component (e.g. door intercom panels, audiophones
and videophones etc.) have been made then the mains power can be switched back ON.
WIRING INTERNAL CABINET COMPONENTS
The earth connection on the cabinet’s inline fuseholder should be connected to the earth stud on the cabinets
base plate and then linked across to the earth stud on the cabinet’s lid using the earth straps provided. The
earth connection on the building can then be connected to either the earth stud on the cabinet’s base plate
or the earth terminal on the inline fuseholder (see Fig.8).

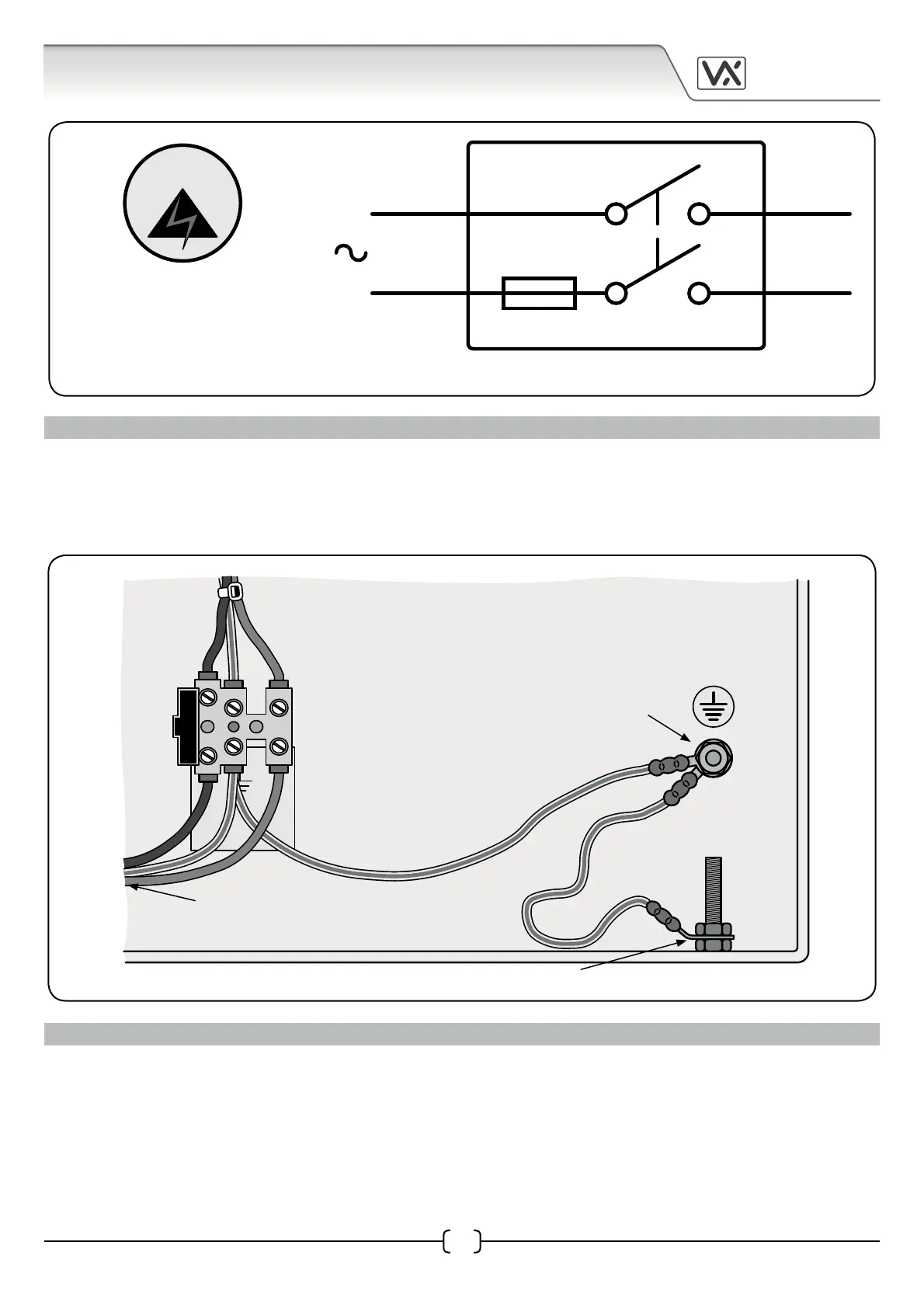

Fig.7
Fig.8
earth stud on
cabinet base
earth stud on cabinet lid
incoming mains supply from fused spur including
the earth connection to the building’s earth
