6000 Series Range - CVK8K
16

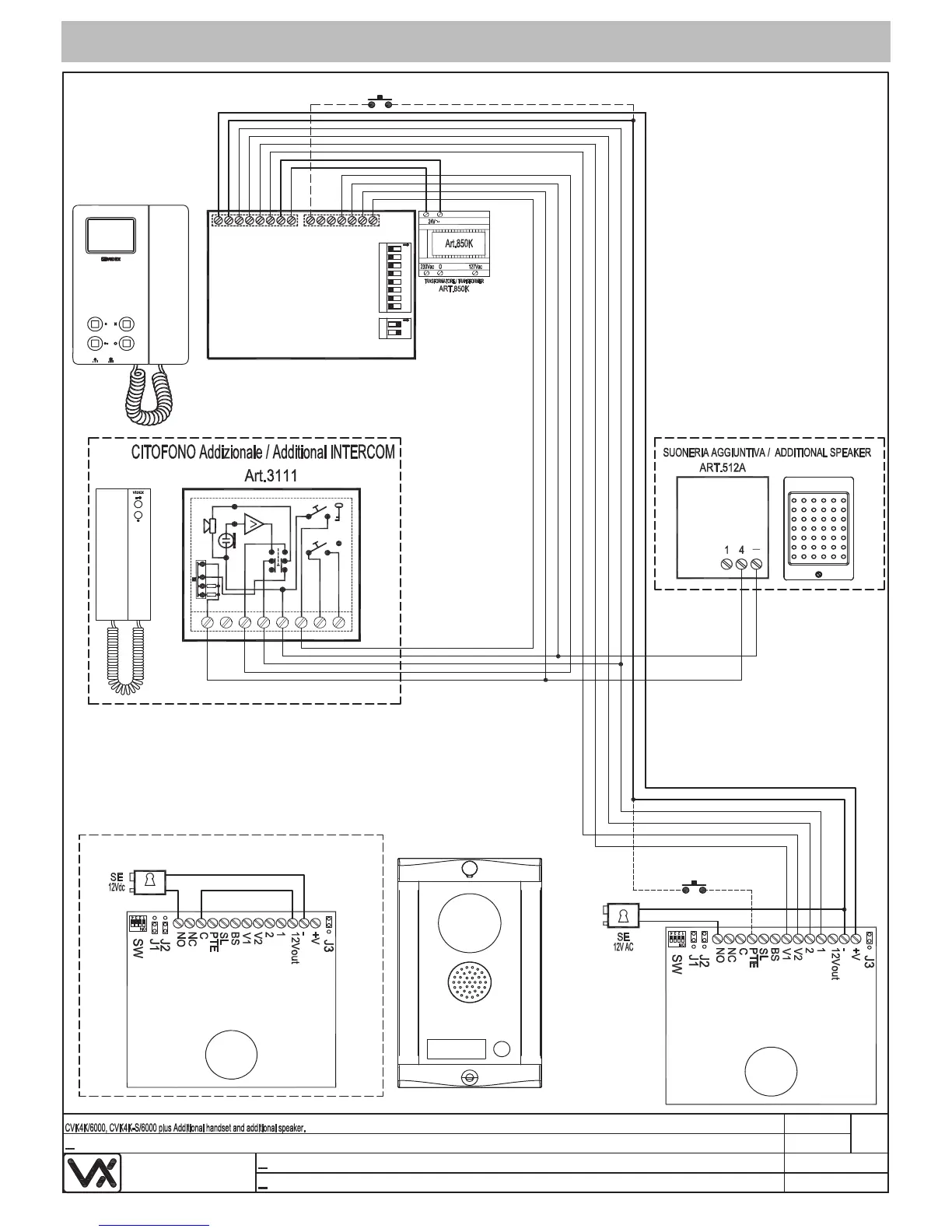

Videokit CVK8K/6000, CVK8K-S/6000
Con videocitofono e suoneria addizionali
Videokit CVK8K/6000, CVK8K-S/6000
With additional intercom and extension sounder
Push to
Exit
Art.8833-1
Videx Electronics S.p.A.
Via del Lavoro 1, 63846 Monte Giberto (FM)
Phone: +39 0734 631669 - Fax +39 0734 631669
www.videx.it - info@videx.it
Autore:
Data modifica:
Data creazione:Title:
Notes:
Titolo:
Note:
Cod.File:
Foglio
/11
Marco Rongoni
s
p
cvk8k-6k-001.dw
g
06/03/2013
12/03/2013
Local Bell
Affinche qualsiasi modifica alle
impostazioni dei dip switch del
videocitofono o del posto esterno venga
riconosciuta dal sistema, è necessario
togliere l'alimentazione di rete
all'impianto e restituirla.
In order to make the system recognize
any modification of the videophone's and
outdoor station's dip-switch setting
temporarily disconnect the system from
the mains and reconnect
12345678 12
ON
Address N.
ON
+V
_
1
2
V1
0Vac
SB
LD
2A
3A
4A
SW2
SW1
LB
V2
5A
24Vac
1
Art.6056
YELLOW
6
BLACK
VOL.REG.
4
RED
93
GREEN
2 1 5 8
Using Electric Lock 12Vdc 0.3A Max
Con serratura elettrica 12Vdc 0.3A Max
Art.8833-1
