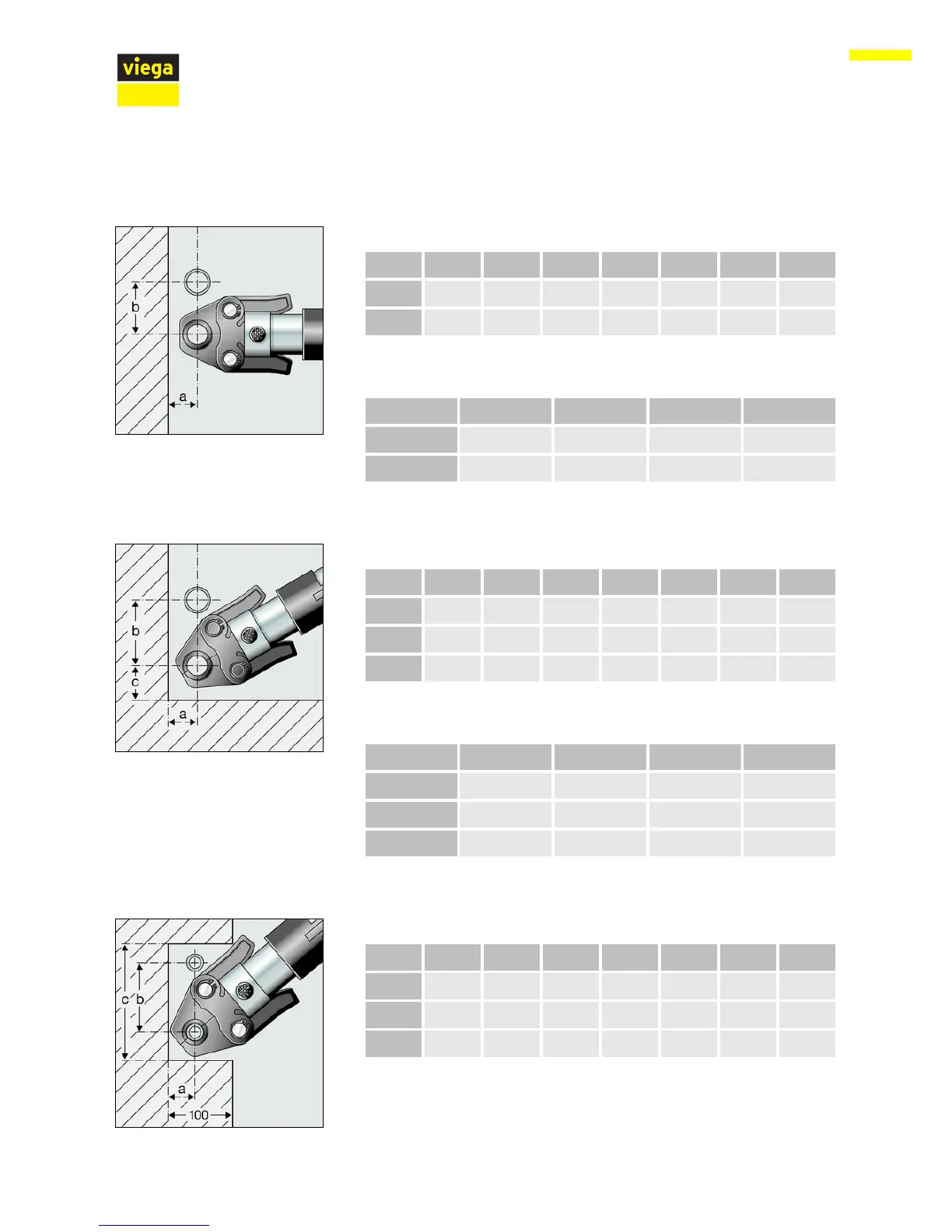

3.2.2 Space requirements and intervals
Space requirement type 2 (PT2), PT3-EH, PT3-AH, Pressgun 4B, 4E, 5
d 16 20 25 32 40 50 63
a [mm] 15 16 23 21 28 40 56
b [mm] 45 45 58 65 70 85 125
Space requirement Picco, Pressgun Picco
d 16 20 25 32
a [mm] 15 15 20 25
b [mm] 48 50 55 70
Space requirement type 2 (PT2), PT3-EH, PT3-AH, Pressgun 4B, 4E, 5
d 16 20 25 32 40 50 63
a [mm] 20 20 25 30 35 40 54
b [mm] 76 76 80 90 92 95 140
c [mm] 25 25 35 35 43 55 61
Space requirement Picco, Pressgun Picco
d 16 20 25 32
a [mm] 20 21 25 30
b [mm] 70 74 75 80
c [mm] 28 28 35 40
Space requirement type 2 (PT2), PT3-EH, PT3-AH, Pressgun 4B, 4E, 5
d 16 20 25 32 40 50 63
a [mm] 20 20 25 30 35 40 54
b [mm] 90 90 90 95 92 95 140
c [mm] 140 140 140 155 178 205 262
Pressing between pipelines
Pressing between pipe and wall
Pressing in wall slots
Handling
