Viega Smartpress - 3.3 Assembly; 3.3.1 Bending Pipes

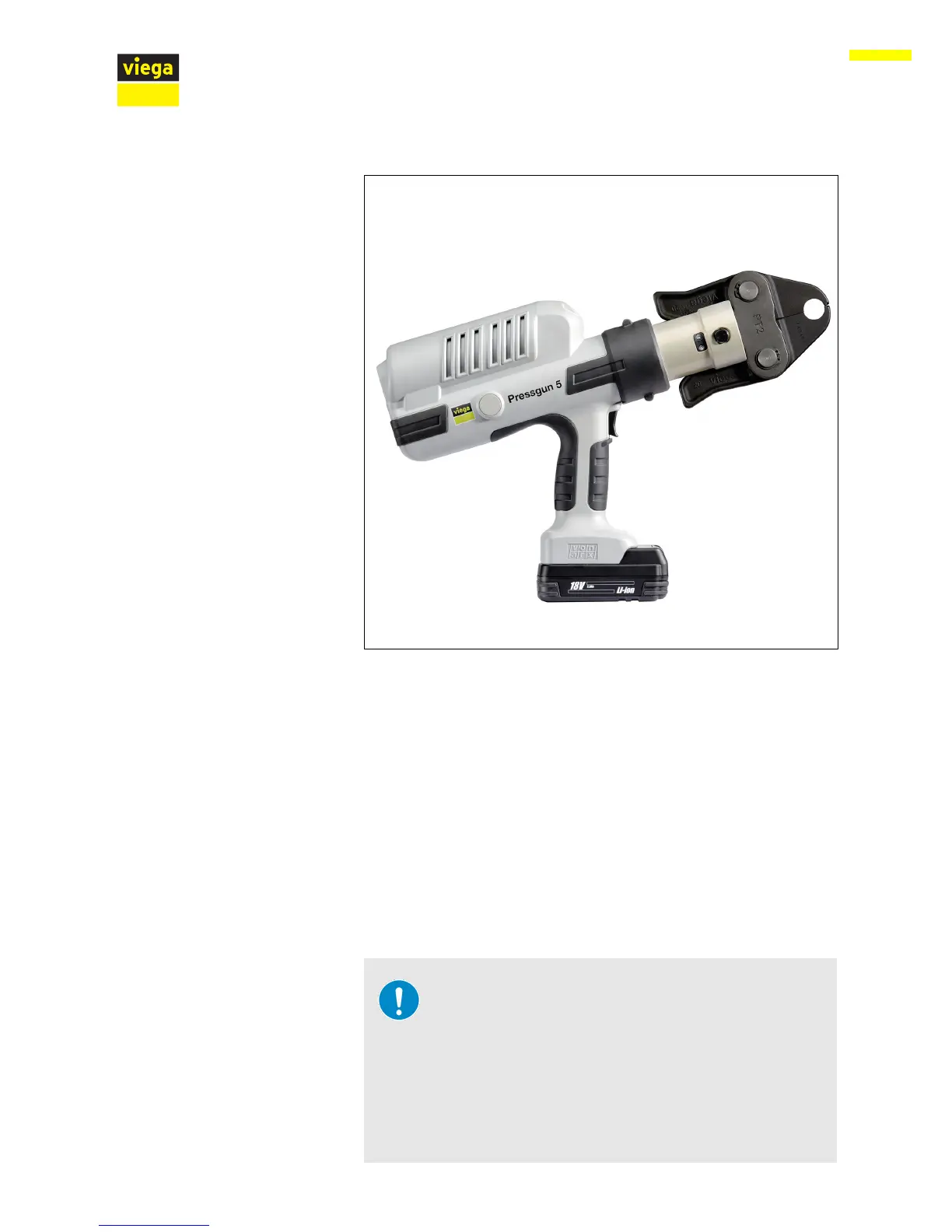

Fig. 6: Pressgun 5 with Viega Smartpress jaw
Recommended Viega press machines:
n Pressgun 5
n Pressgun Picco
n Pressgun 4E / 4B
n Picco
n Type PT3-AH
n Type PT3-H / EH
n Type 2 (PT2)
3.3 Assembly
3.3.1 Bending pipes
NOTICE!
Product damage due to use of metal internal bending
springs
The use of metal internal bending springs can lead to
damage to the pipe surface and to the introduction of con‐
taminations into the installation.
– Do not use metal internal bending springs.
– Viega recommends using the Viega internal bending tool
made of plastic (model 5331.2).
Handling
Viega Smartpress 19 from 23
