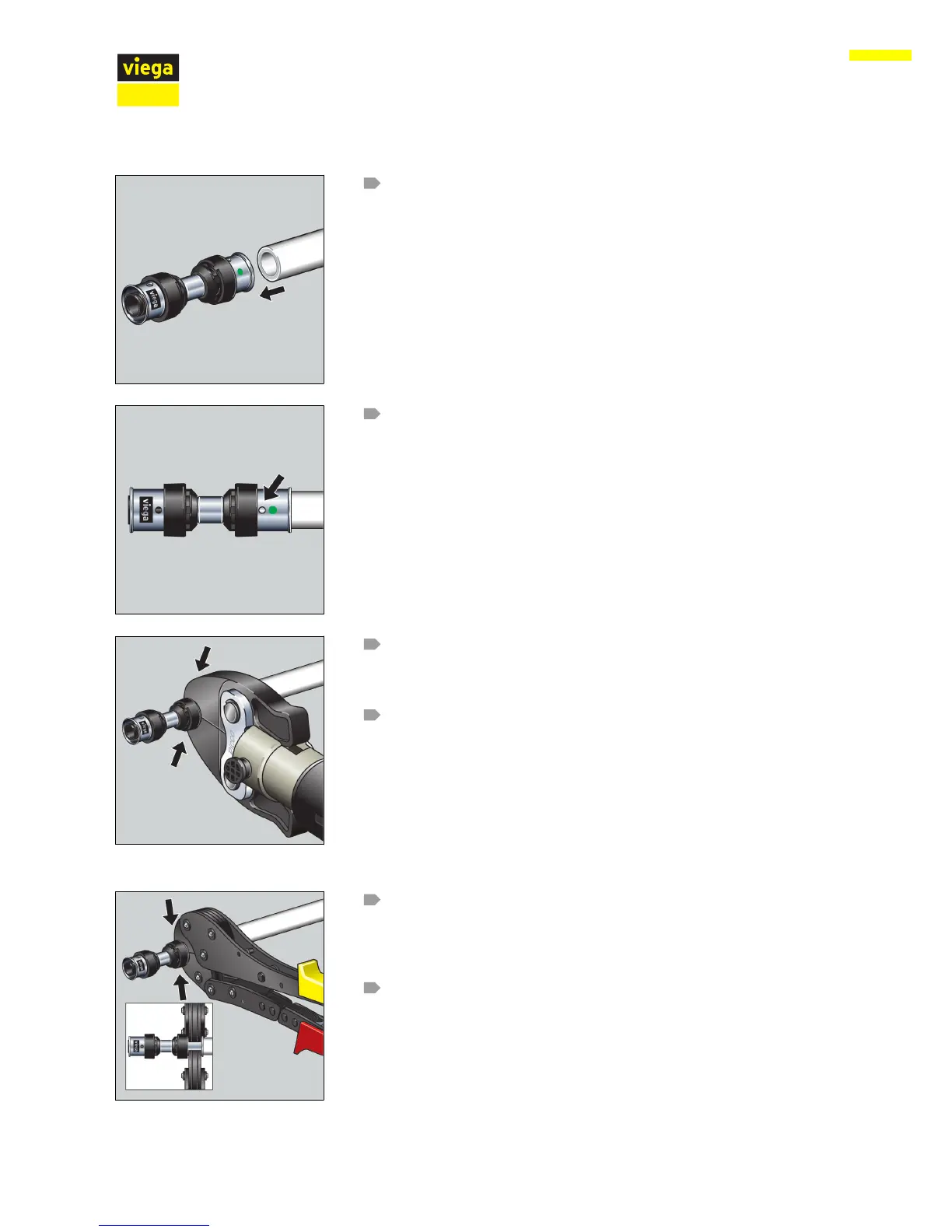

Push the pipe into the press connector until the pipe end is visible in
the inspection window.
Check the insertion depth in the inspection window.
Open the press jaw and place at a right-angle onto the connector.
Observe the intervals in section
Ä
Chapter 3.2.2 „Space require‐
ments and intervals“ on page 17.
Carry out the pressing process.
ð
Connection is pressed.
Open the hand press tool and place it at a right-angle onto the con‐
nector.
Observe the intervals in section
Ä
Chapter 3.2.2 „Space require‐
ments and intervals“ on page 17.
Carry out the pressing process.
ð
Connection is pressed.
Alternatively: Press the connection with hand tool
Handling
