Connections
28

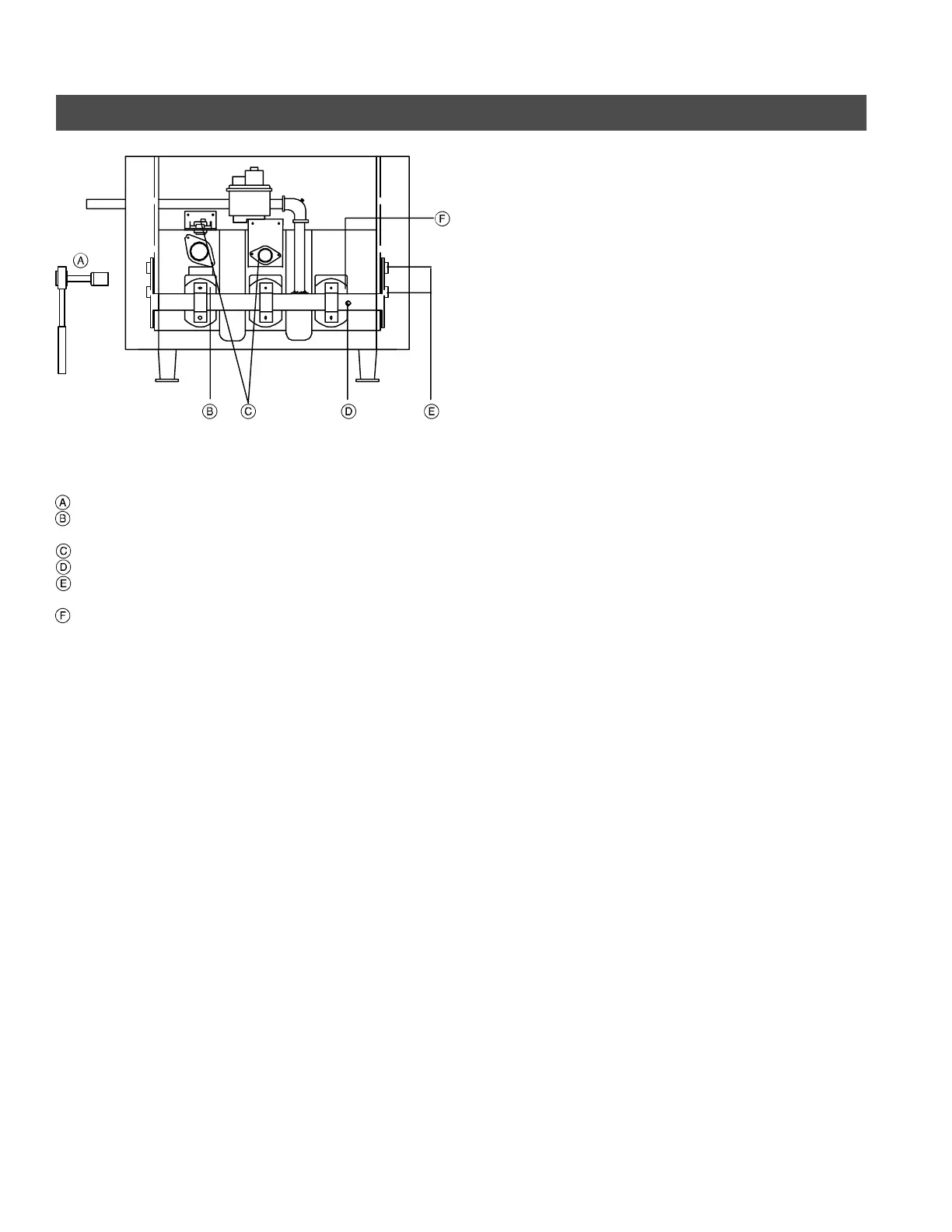

Gas Burner Removal
Legend
Socket wrench (13 mm)
Pilot burner location for
ECV-65, 80, 100, 115, 140, 155
Flame roll-out switch
Manifold pressure test port
Manifold attachment screws
(2 per side)
Burner tubes
The main gas burner manifold with the
individual stainless steel burners
mounted may be easily removed from
the boiler.
1. Close the main gas shut-off valve
external to boiler.
2. Disconnect all power to boiler.
3. Remove front cover panel from
boiler.
4. Break ground joint union before gas
valve, remove gas pipe.
5. Disconnect wiring to gas valve.
Disconnect wiring from igniter sensor
and ground connection.
6. Loosen manifold bolts (do not
remove, only loosen). U se socket
with extension to access bolts
through holes in side panel.
7. Remove burners once manifold is
loose.
8. Slide out manifold on an upper angle
once burners are removed.
5167 450 v1.4
Fig. 12
