Connections
30
Main Burner
Proper flame: Upper main flame cone
with light orange coloring,
sharply defined individual
flames. See Fig. 13 on
previous page.
Underfired: Lazy-burning main flame
cone, mushy flame
appearance throughout,
smaller flame sizes t han
in Fig. 13.
Overfired: Increased burner noise,
larger flame s izes than in
Fig. 13.

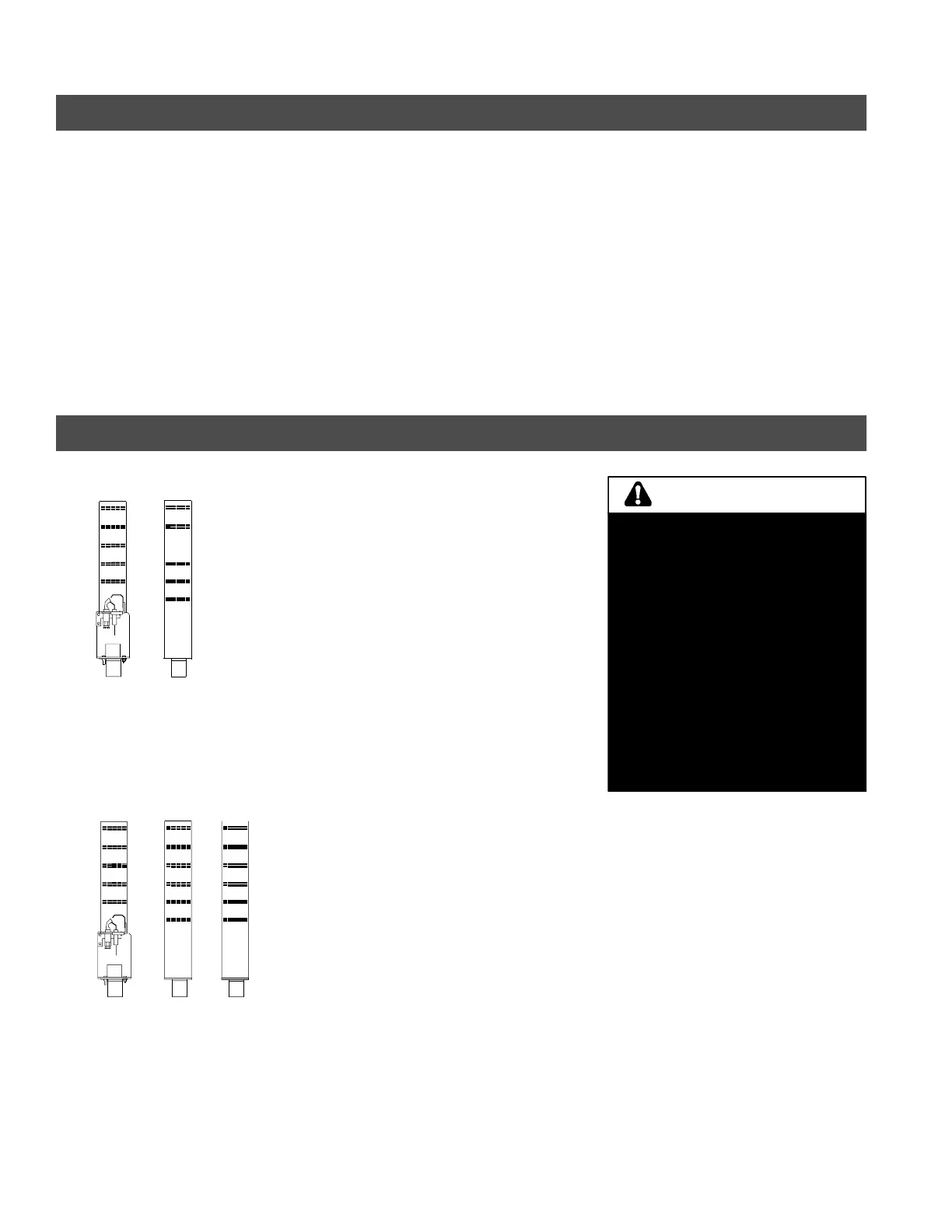

Gas Burner Positioningg
5167 450 v1.4
ECV-(65,80)
Left
Right
Fig. 14b
ECV-(100,115)
Left
Right
Fig. 14c
For ECV boiler with Honeywell
intermittent pilot (spark) ignition, the
main burner for mounting the
Q3451A pilot assembly contains one
less group of main burner ports (5). If
theburnersaredisassembledor
replaced for any reason, they must be
reassembled as shown in Figs. 14a,
14b, 14c, 14d. If the Q3451A pilot
assembly is accidentally assembled
into a 6 port burner, it will be
exposed to t he flames from the first
row of ports and will overheat and
become defective. Defective pilot will
prevent boiler from operating, which
could cause property damage from
freezing.
CAUTION
To Next Page
