Viessmann Fillstation medium - Specification; Dimensions; Flow Rate Without Cartridge

24

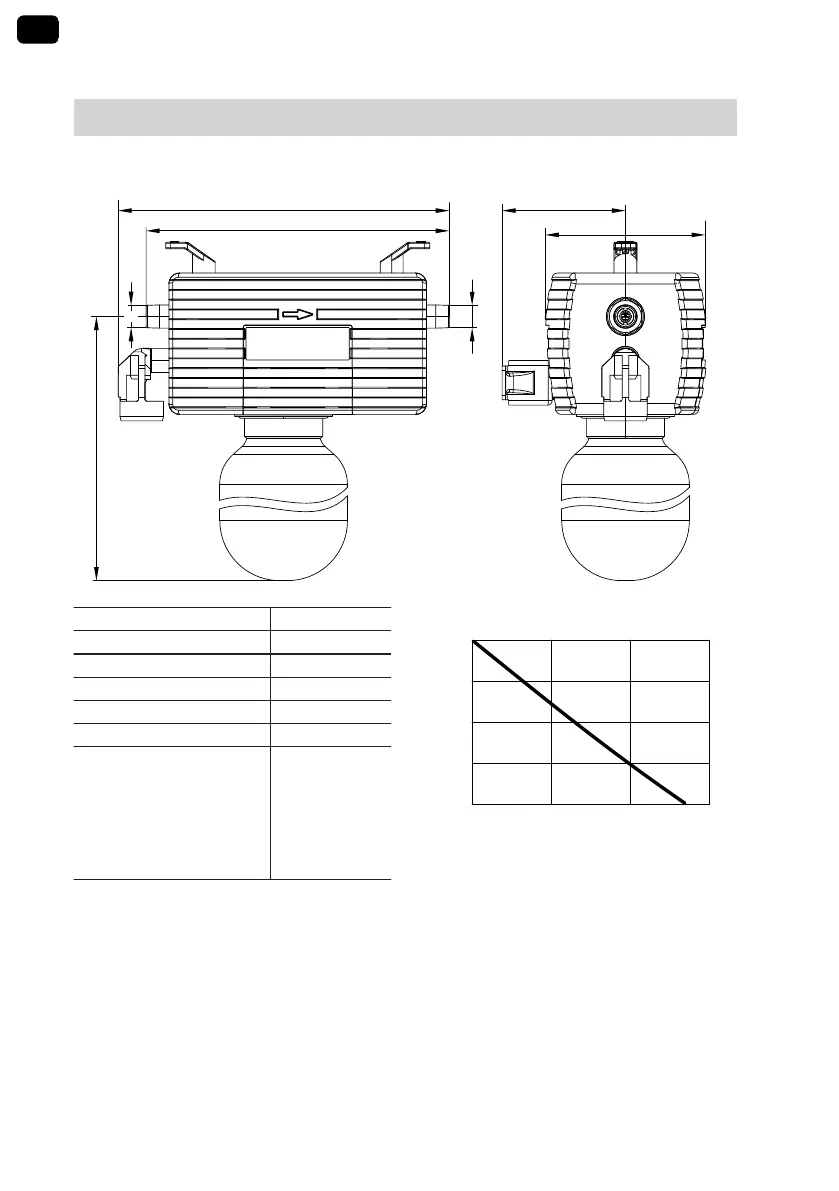

Dimensions
a
f
c
b
e
d
a
Nominal diameter DN 20
a mm R ½
b mm 305 to 327
c mm 279
d mm 91 to 113.5
e mm 148
f with cartridge
■ 2.5 l mm 263
■ 4 l mm 365
■ 7 l mm 562
■ 14 l mm 1017
■ 30 l mm 922
Flow rate without cartridge
Outlet pressure in bar
0
1
1.5
2
2.5
3
0.25 0.5 0.75
Flow rate in m³/h
GB
Specification
(cont.)
5593079
