Set-up
10

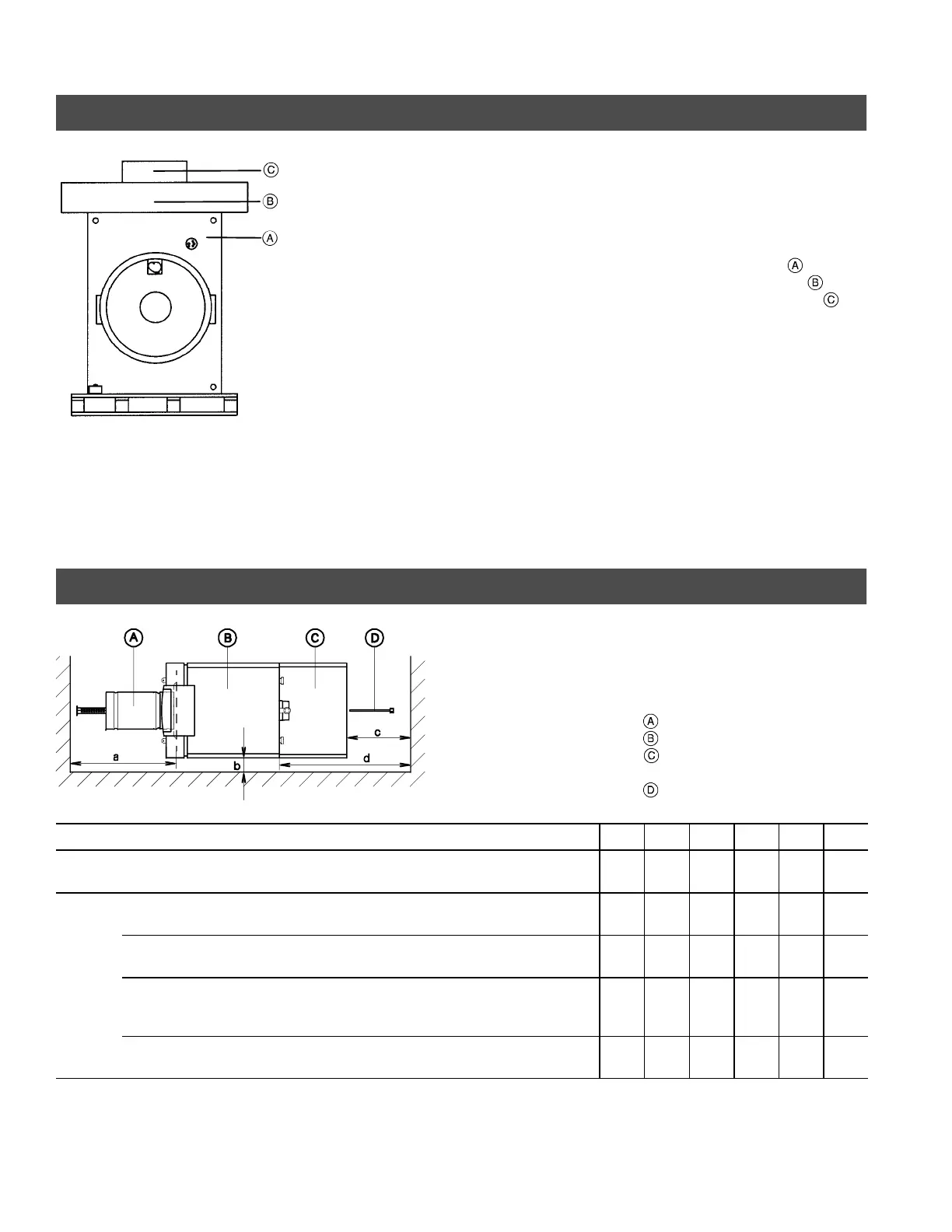

Product Delivery
All Vitola 200 boilers are shipped unassembled with separately packaged boiler
shell, insulation jacket, and inst allation fittings carton.
Product delivery
Ensure each of the following has been
delivered:
H Skid with pressure vessel
H Carton with insulation jacket
H Carton with installation fittings
(coding card and technical literature,
included)
H Cleaning brush
Other equipment
The following components, which are
ordered a nd packaged separately, are
also required:
H Carton with boiler control unit
H Carton with gas or oil burner
H Carton with burner hood
(for Viessmann Chassis Burner only)
Recommended Minimum Clearances for Service
Combustion chamber insert
Boiler
Vitocell-H domestic
hot water storage tank
*2
Sensor well for storage tank
Boiler Model
VB2 -18 -22 -33 -40 -50 -63
Dim a
*1
: Necessary clearance in front of the boiler
for maintenance and service
inches
mm
24½
620
26¾
680
33½
850
33½
850
36½
920
43
1090
Dim b: Necessary clearance beside the boiler
Ensure sufficient clearance if installing D ivicon
inches
mm
24
600
24
600
24
600
24
600
24
600
24
600
Dim c: Necessary clearance behind a Vitocell-H
installed below the boiler
inches
mm
16¾
425
16¾
425
17¾
450
17¾
450
17¾
450
17¾
450
Dim d: Ensure adequate clearance for Divicon or other accessories;
minimum clearances
(no Vitocell-H installed below the boiler)
inches
mm
24
600
24
600
24
600
24
600
24
600
24
600
Top: inches
mm
24
600
24
600
24
600
24
600
24
600
24
600
*1
This clearance is required for service work. Viessmann strongly recommends maintaining 48” / 1200 mm front clearance on all models.
*2
The Vitola 200 can be mounted on a Vitocell-H as shown to re duce the footprint of hea ting equipme nt in the mechanical room.
Do not attempt to install combinations not listed in the Price List.
5167 404 v1.9
