Set-up
17
Mounting the Combustion Chamber Door
Installation Instructions
Burner

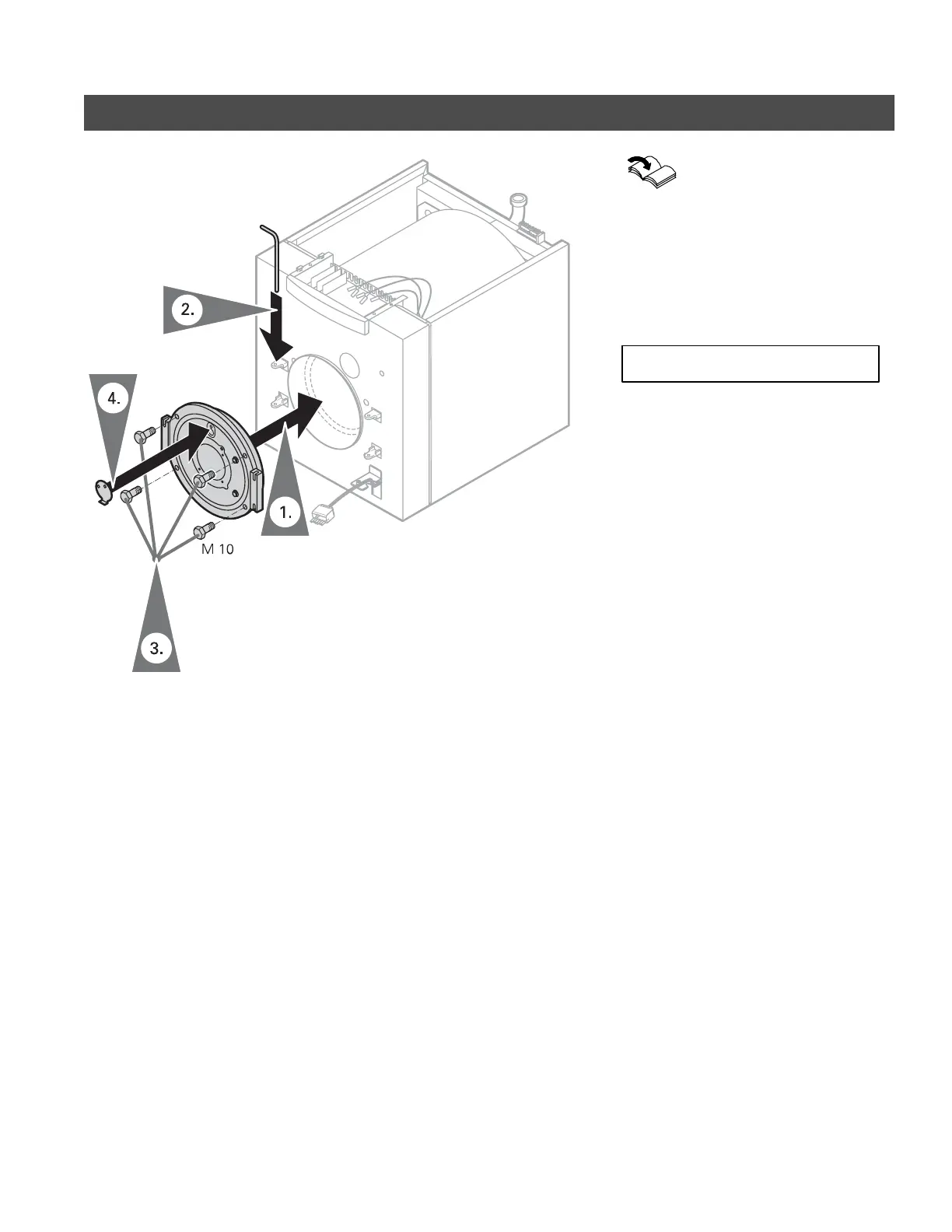

1. Position combustion chamber door.
2.Insert the hinge pin on the right or
left-hand side depending on whether the
door is required to swing out to the
right or left.
Push combustion chamber insert to the rear
as far as possible; ensure retaining bracket
is on the botto m .
3. Fasten the combustion chamber door
with M 10 hexagon bolts.
4. Mount the sight glass on the
combustion chamber door.
5167 404 v1.9
