16
Cable entry Dimensions in mm
a b c d
Above ground level ≥ 100 ≥ 200 ≥ 300 ≥ 1000
Below ground level ≥ 100 ≥ 400 ≥ 300 ≥ 1000

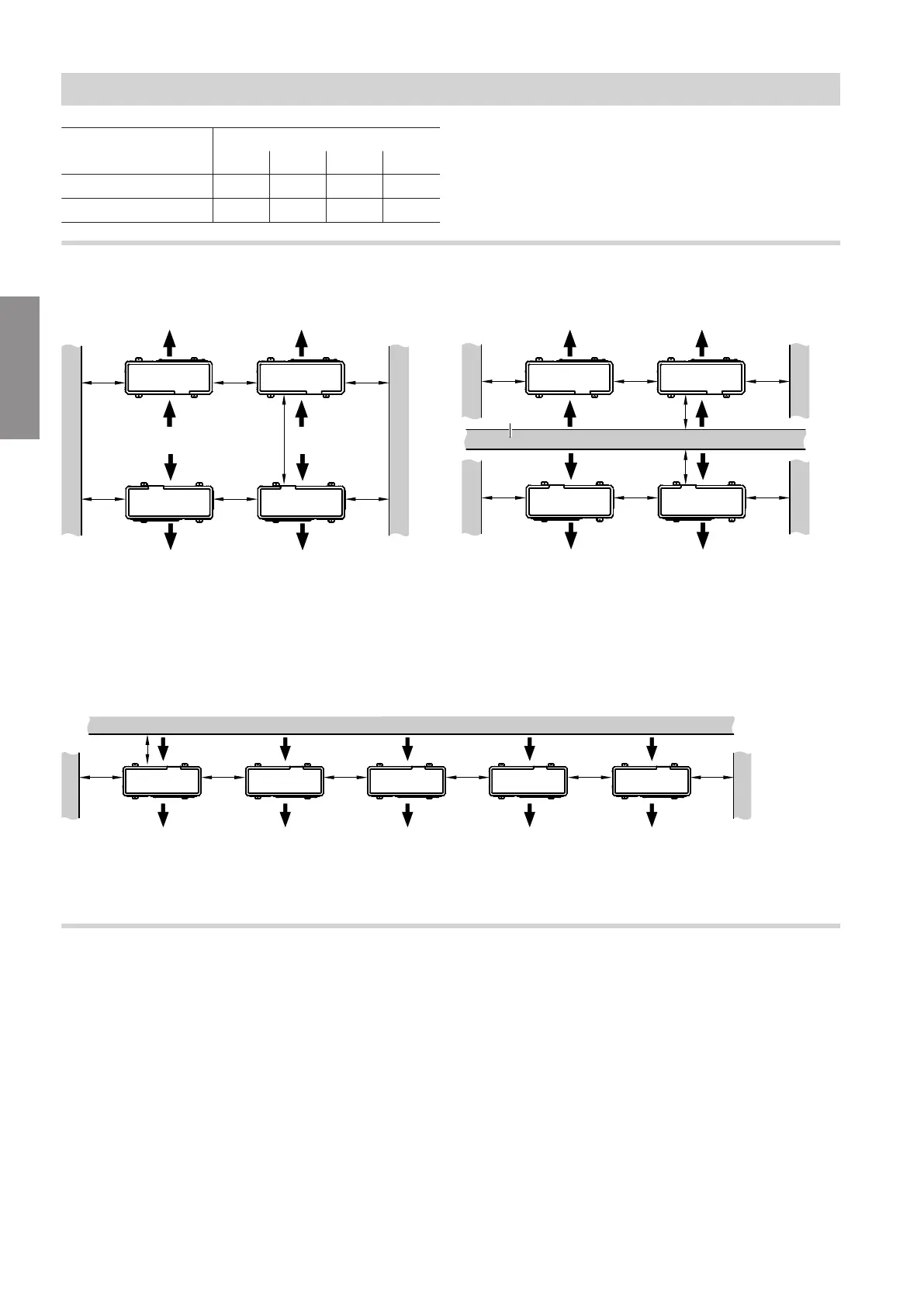

Minimum clearances for heat pump cascades (max. 5 outdoor units)
Facing layout without partition wall
> 500
> 1500
> 500
> 500
> 500 > 500 > 500
A
B
B
A
A
B
B
A
Fig. 7
A
Air discharge
B
Air intake
Facing layout with partition wall
> 500
400
> 500 > 500
400
> 500 > 500 > 500
C
B
A
B
A
A
B
A
B
Fig. 8
A
Air discharge
B
Air intake
C
Partition wall
Single row layout
> 500
A
400
B
A
B
A
B
> 500 > 500 > 500
A
B
> 500
A
B
> 500
Fig. 9
A
Air discharge
B
Air intake
Floorstanding installation
Foundations
Fit the floor brackets on 2 horizontal foundation strips.
We recommend the construction of concrete founda-
tions in accordance with the following diagram. The
stated thickness of the layers represents an average
value. These values should be adjusted to suit the
local conditions. Observe the standard rules of building
engineering.
Installation sequence
Installing the outdoor unit (cont.)
6199585
Installation
