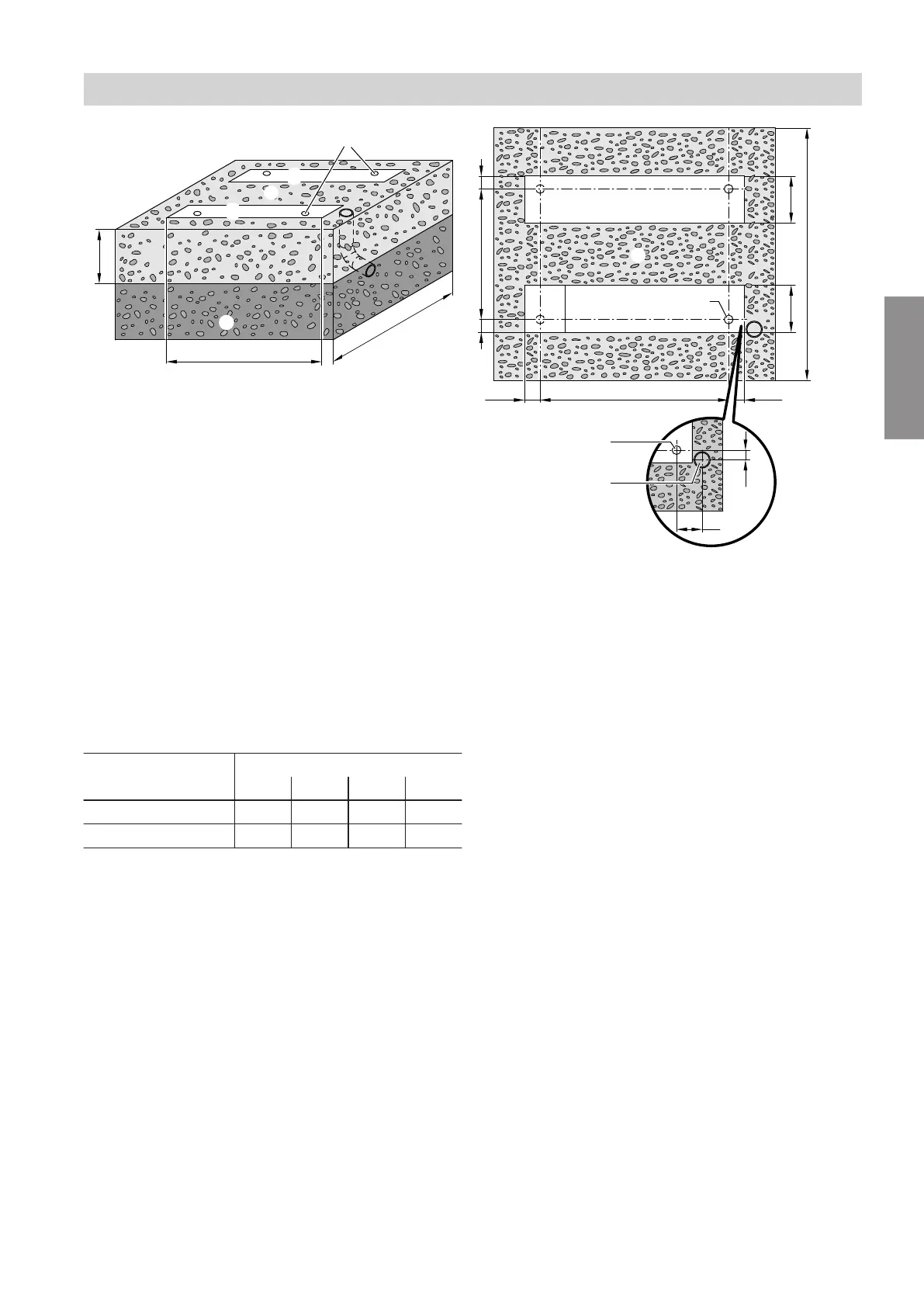

Fig. 10
C
Foundation strips
D
Only for line entry below ground level: DN 125 KG
conduit with cover and 2 x 45° pipe bends; sealing
of line entry in the cover on site
E
Frost protection for foundations (compacted
crushed stone, e.g. 0 to 32/56 mm); thickness of
layer subject to local requirements and building
regulations
P
Gravel bed as condensate soakaway
R
Fixing points for floorstanding installation supports:
Use ground anchors with a tensile force of at least
2.5 kN.
Outdoor unit Dimensions in mm
e f g h
With 1 fan 1000 650 90 130
With 2 fans 1000 576 90 130
