Viessmann VITOCAL 160-A - Tee, Reduced

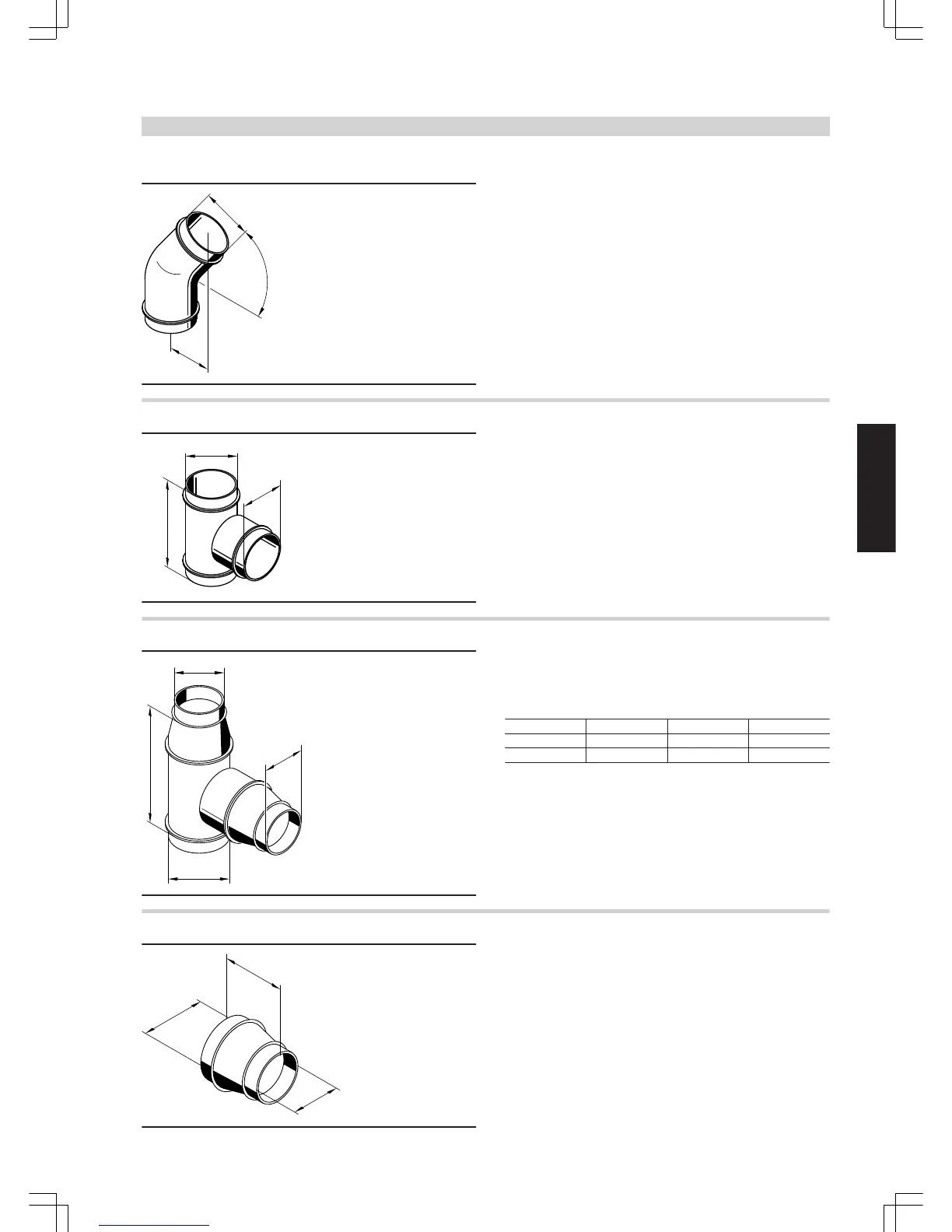

Bend 45°
= DN
45°
Ø DN
DN 125: Part no. 7249 107
DN 160: Part no. 9521 725
Tee
DNÛ
200 (DN125)
240 (DN 160)
DN
Û
DN 125: Part no. 7249 110
DN 160: Part no. 7190 179
■ Outlet 90°
■ All connections DN 125 or 160
Tee, reduced
b
a
b
c
DN 125: Part no. 7299 292
DN 160: Part no. 7299 293
■ Outlet 90°
■ Dimensions and connections
Part no. a b c
7299 292 DN 125 DN 100 205 mm
7299 293 DN 160 DN 125 230 mm
Reducer 160/125
Ø 125
Ø 160
150
Part no. 7249 108
■ To connect pipe sections
Extract/expelled air pipework
(cont.)
VITOCAL 160-A
VIESMANN
17
5822 485 GB
3
