System design 6

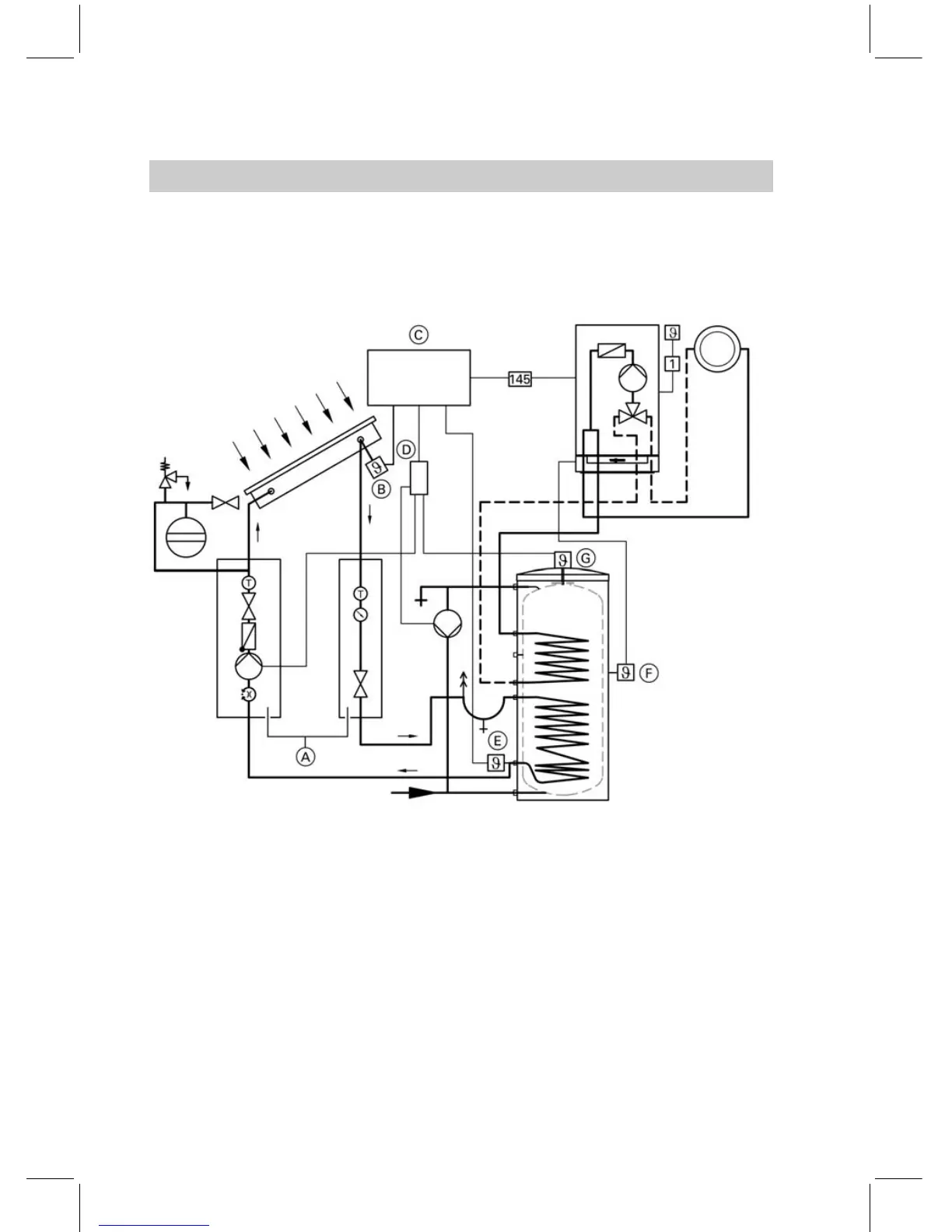

With 1 heating circui t wi thout mixer A1, solar panels and Vitocell-W 100
DHW cylinder (type CVB) installed adjacent to the boiler
! Outside temperature sensor
aVG KM BUS
A Solar-Divicon
B Collector temper ature sensor
C Vitosolic 100 or 200
D Connection extension (only for
Vitosolic 100, ac cessory)
E Cylinder temperature sensor for
solar operation
F Cylinder temperature sensor
(accessory)
G High limit safety cut-out
*
1
Further details regarding the individual steps (cont.)
32
Initial start-up, inspection, maintenance
5692 537 GB
*1
High limit safety cut-out required only for:
DHW volume smaller than 30 l itres/m
2
absorber surface w hen u sing Vitosol 100.
DHW volume smaller than 100 l itres/m
2
absorber surface when using Vitosol 200 or 30 0.
