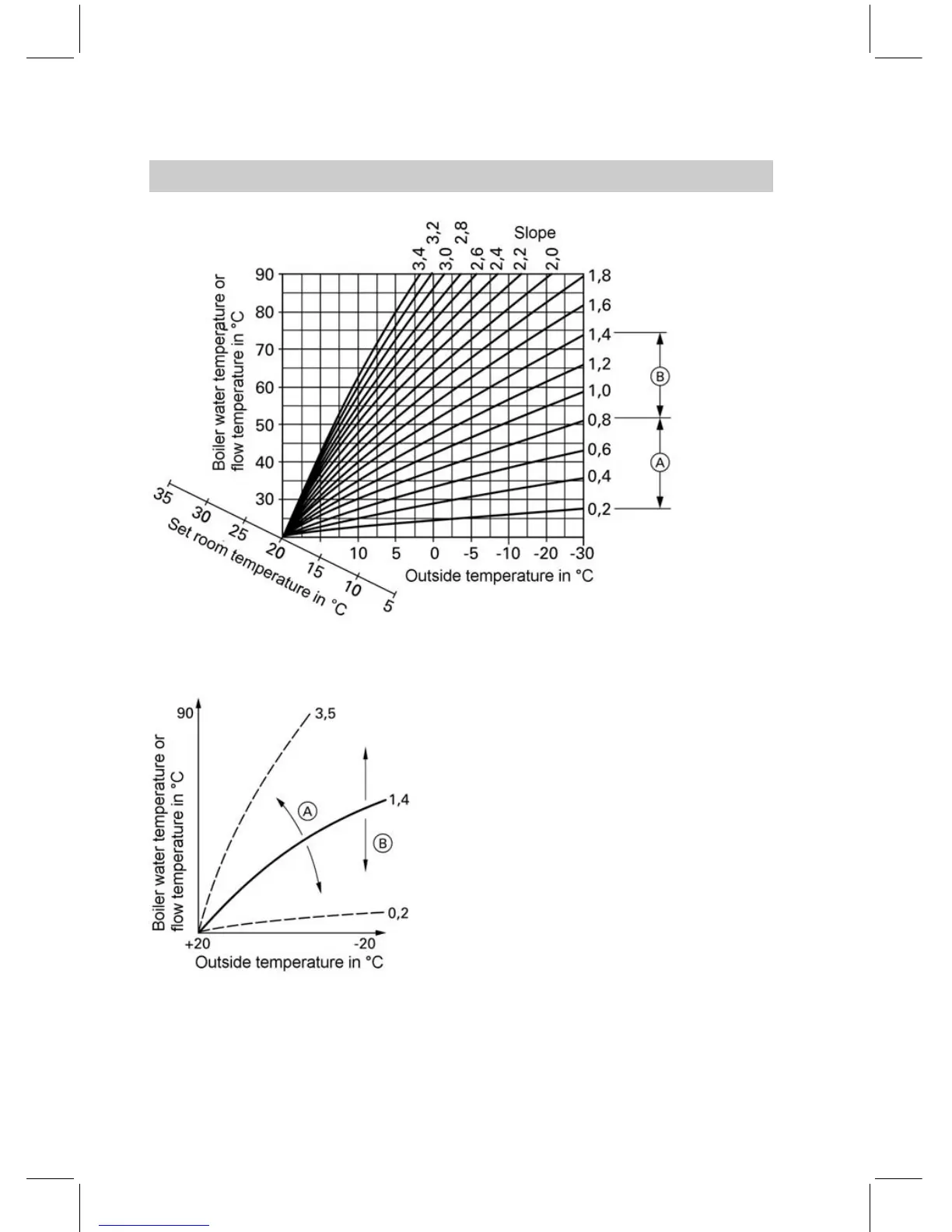

Changing slope and level
A Changing the slope
B Changing the level
1. Modifytheslopeincode1withcod-
ing address d3 (see page 4 0).
Value a djustable from 2 to 35
(equals slo pe 0.2 to 3.5).
2. Modifytheslopeincode1withcod-
ing address d4 (see page 4 0).
Value a djustable fro m – 13 to +40 K.
Further details regarding the individual steps (cont.)
36
Initial start-up, inspection, maintenance
5692 537 GB
