Viessmann Vitopend 100-W Installation And Service Instructions For Contractors

23

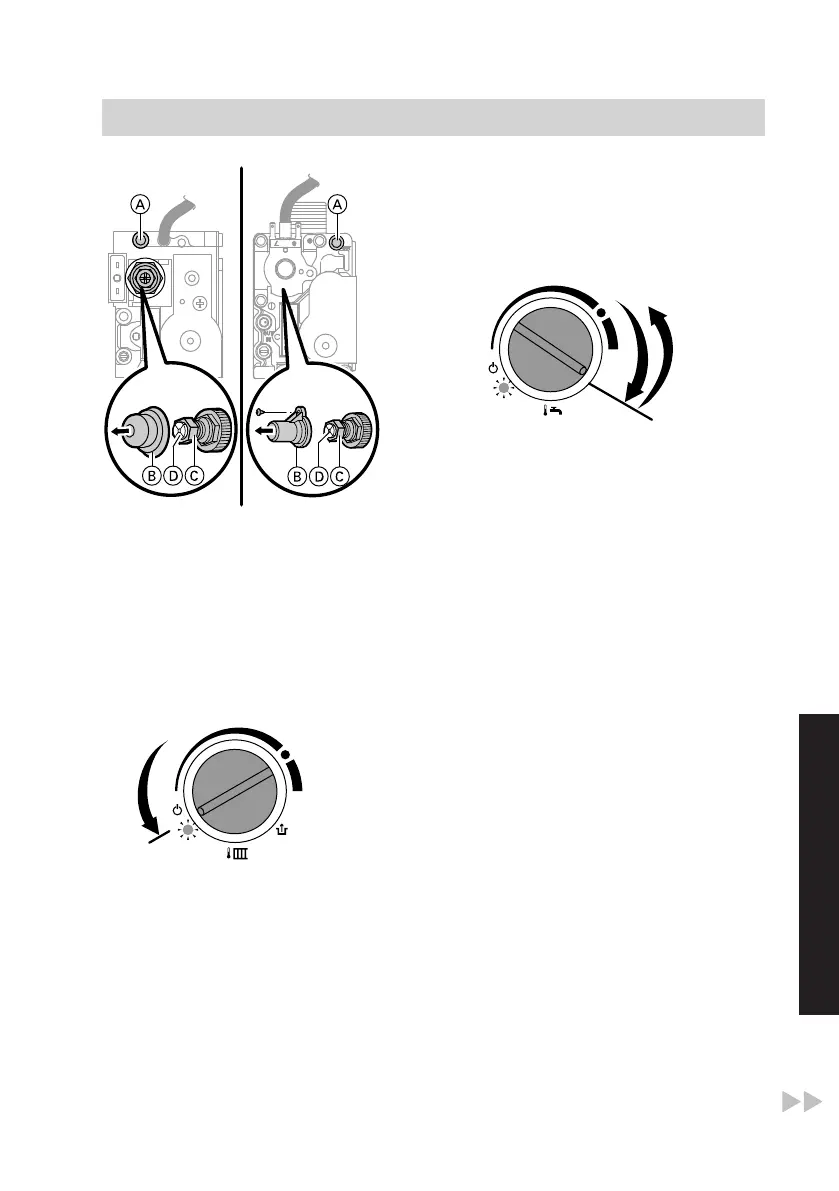

A
Test connector
B
Cap
C
Screw
D
Phillips screw
01. Turn off the ON/OFF switch on the
control unit (the boiler shuts down)
1
2
3
4
5
6
Turn rotary selector "
tr
" anti-
clockwise as far as it will go.
02. Close the gas shut-off valve.
03. Release the screw inside test con-
nector
A
but do not remove, then
connect the pressure gauge.
04. Open the gas shut-off valve. Turn on
the system ON/OFF switch on the
control unit.
05. Set the upper heating output:
1
2
3
4
5
6
Turn rotary selector "
tw
" clockwise
as far as it will go (leave at that posi-
tion briefly), then turn it back.
"Serv" appears.
Note
The operation with the upper rated
heating output is automatically reset
after approx. 30 min or by switching
the power off and on again.
06.
Remove cap B from the gas train.
07. Test the nozzle pressure at the
upper rated heating output. In the
case of deviations from the value
shown in the following table, adjust
the nozzle pressure for the upper
rated heating output at screw
C
(SW 10).
Commissioning, inspection, maintenance
Further details regarding the individual steps
(cont.)
5848 649 GB
Service

Viessmann Vitopend 100-W Specifications

General

Fuel Type	Gas
Max. Water Temperature	85 °C
Type	Condensing Boiler
Gas Type	Natural gas / LPG
Efficiency	Up to 98%
