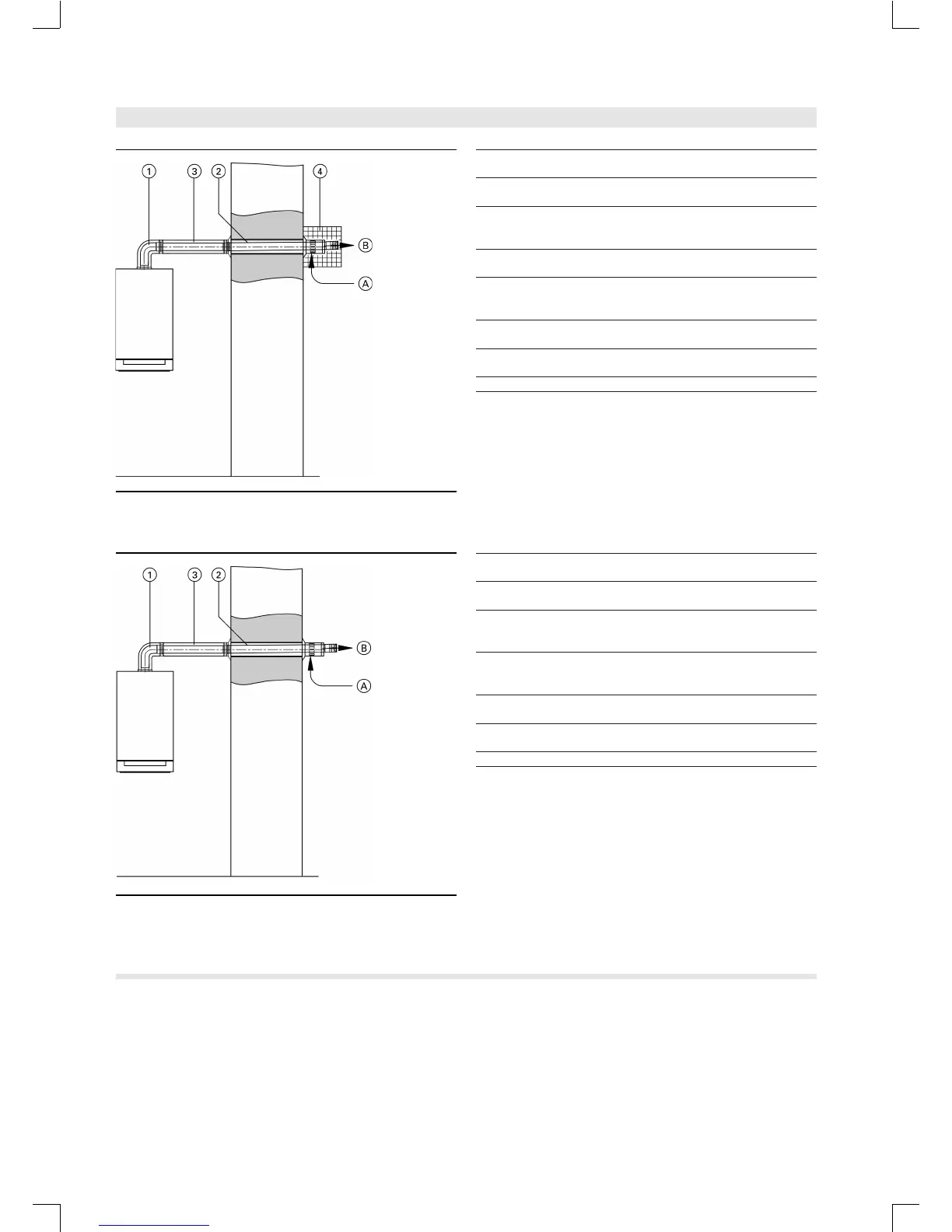

Viessmann VITOPEND 100 WHEA - Page 34

A Ventilati on air
B Flue gas
1 Boiler flue connection bend (coaxial)
(order separately)
Part no. 7194 858
2 External wall terminal (Ø 60/100 mm)
(incl. wal l bezels)
Part no. 7194 843
3 Balanced flue pipe (Ø 60/100 mm)
1 m long (tri m to size) Part no. 7194 841
0.5 m long (trim to size) Part no. 7194 842
4 Protective grille where the flue term-
inal is near public paths
Part no. 7337 276
Balanced flue bend (Ø 60/100 mm)
90° Part no. 7194 836
45° (2 pieces) Part no. 7194 837
Balanced flue inspection piece
straight (Ø 60/100 mm)
Part no. 7194 833
Balanced flue condensate trap (Ø
60/100 mm)
Part no. 7194 846
Drain ou tlet kit Part no. 7179 307
A Ventilati on air
B Flue gas
1 Boiler flue connection bend (coaxial)
(order separately)
Part no. 7194 858
2 External wall terminal (Ø 60/100 mm)
(incl. wal l bezels)
Part no. 7194 843
3 Balanced flue pipe (Ø 60/100 mm)
1 m long (tri m to size) Part no. 7194 841
0.5 m long (trim to size) Part no. 7194 842
Balanced flue bend (Ø 60/100 mm)
90° Part no. 7194 836
45° (2 pieces) Part no. 7194 837
Balanced flue inspection piece
straight (Ø 60/100 mm)
Part no. 7194 833
Balanced flue condensate trap (Ø
60/100 mm)
Part no. 7194 846
Drain ou tlet kit Part no. 7179 307
Vertical pitched and flat roof outl et, parallel, system size Ø 80/80 mm
&
For installing the Vitopend in an attic (type C
32x
)
&
The roof outlet may only be used, where the ceiling of the occu-
pied room also forms part of the roof or only the roof structu re is
located above the cei ling (pi tched atti c).
&
When the balanced flue system is routed through roof spaces,
which are not used as accommodation, run the balanced flue
pipe through an additi onal metal pipe as protection against
mechanical damage (TRGI '86/96, point 5.6.1.2).
&
It may also be routed behind a jamb wall or a solid wall of an
attic built as accommodation, if the fire protection class of the
jamb wall corresponds to that of the ceiling (e.g. B30).
It was verified as part of the DIN DVGW type test, that nowhere
on Vitopend or the balanced flue system will surface tempera-
tures higher than 40 K above room temperature occur.
&
Minimum clearances to combustible materials inside the instal-
lation location or in connection with the roof outl et do not have
to be observed.
5822 335-1 GB
34 VIESMANN VITOPEND 222
Flue gas/ventilation air system accessories for balanced flue operation... (cont.)
