8
■
Weather-compensated operation
Installation in any room
■
Operation with room temperature hook-up
–
In the main living room on an internal wall
–
Distance to floor: Min. 1.5 m
–
Not near windows or doors
–
Not above radiators
–
Not near heat sources (direct sunlight, fireplace,
TV set, etc.)
Do not install additional control devices in this room. If
the radiators are equipped with thermostatic valves,
these must always be fully opened.
Note
If the remote control cannot be installed in a suitable
location, connect a separate room temperature sensor.

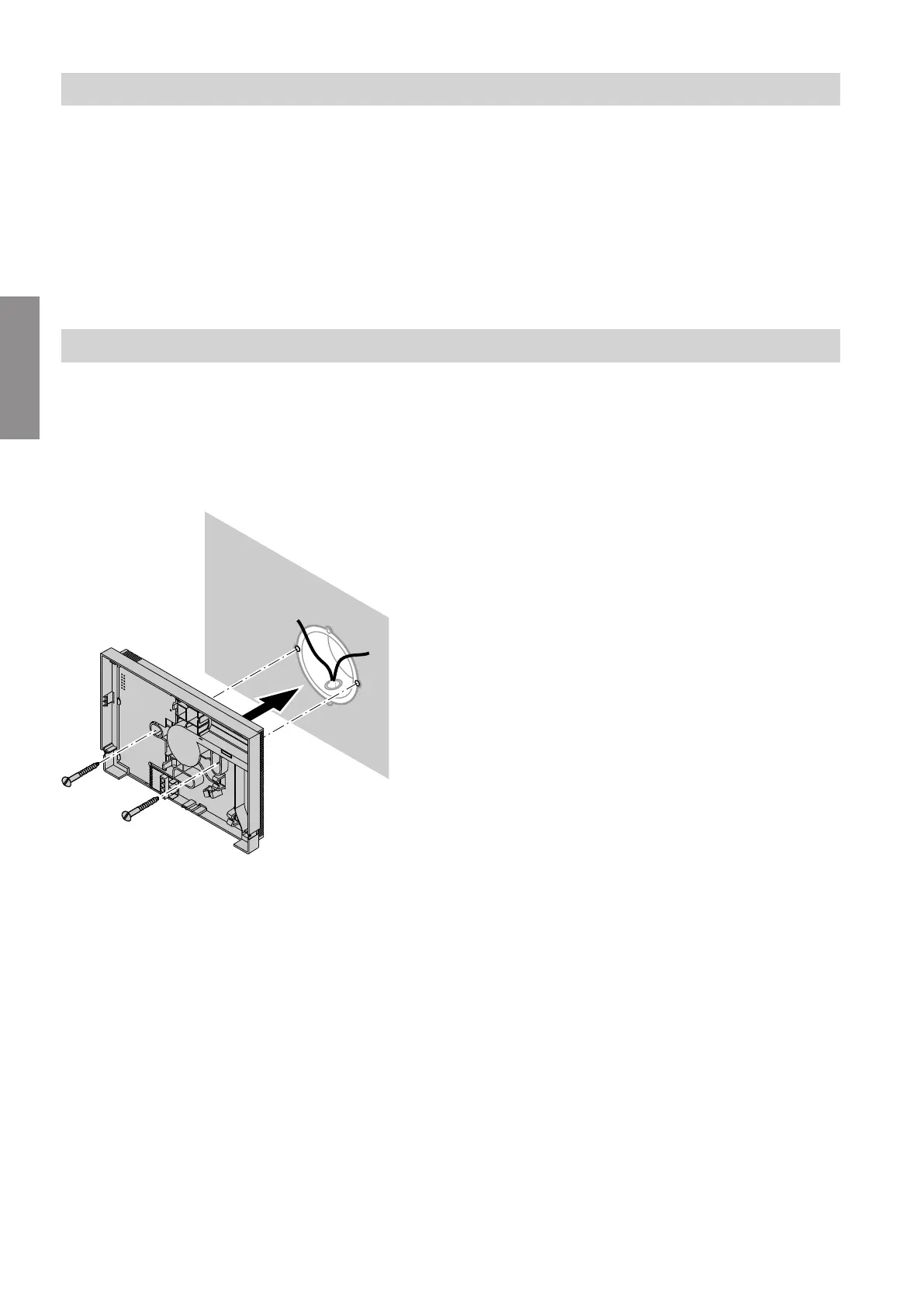

Fitting and connecting the Vitotrol 200-E
!
Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing any work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Fig. 1
Connection
2-core cable with a cross-section of at least 0.75 mm²;
cores are interchangeable.
Max. cable length 50 m
Note
Never route the cable to the remote control immedi-
ately next to 230/400 V cables.
Installation sequence
Place of installation
5839309
Installation
