Initial start-up
Further step-by-step instructions (continued)
Mixing valve insert conversion (if required), see mixing valve installation instructions.
Please note! For systems with Modular-Divicon, reverse the rotational direction.
Factory default setting
of the mixing valve actuator rotation direction

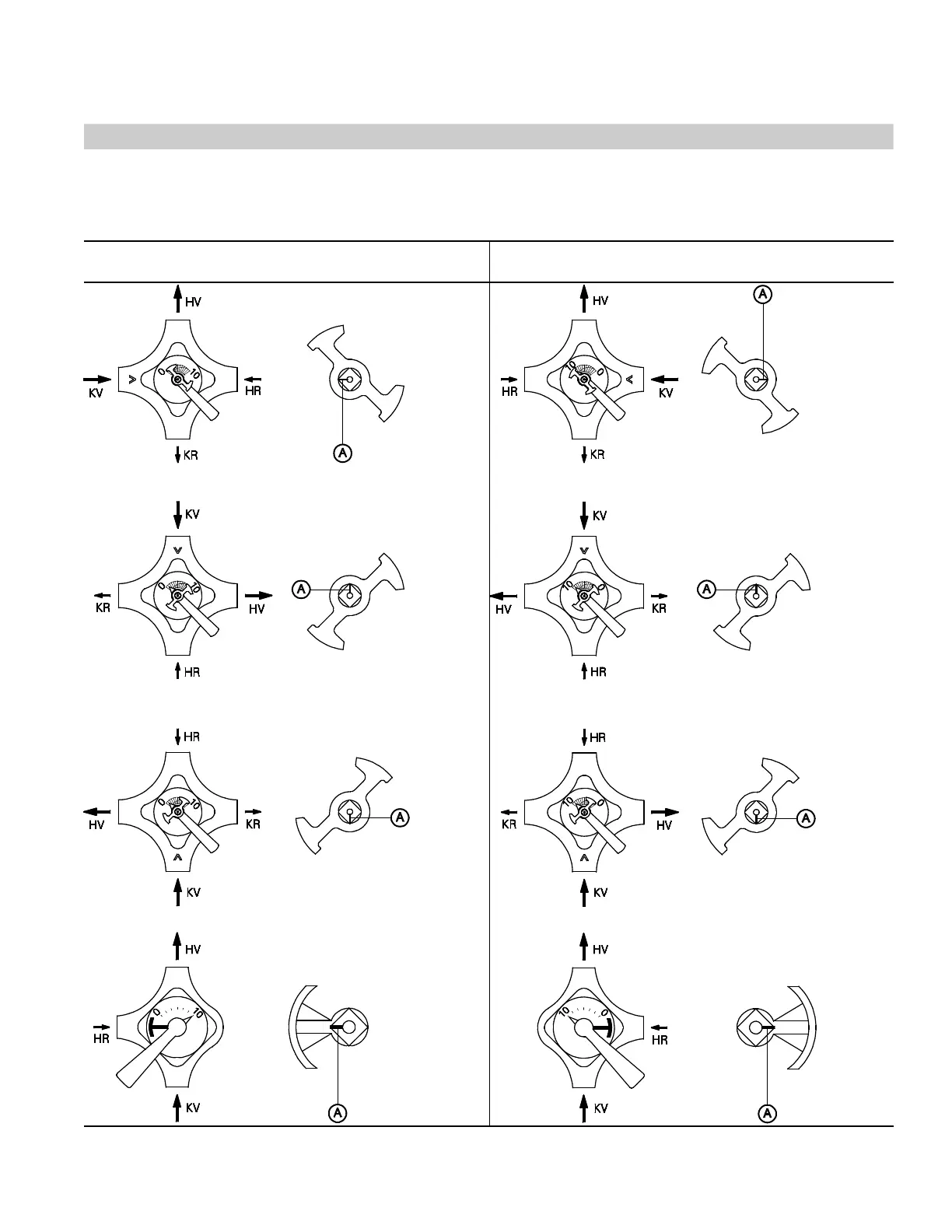

Change the mixing valve actuator rotational direction for
these installation examples
HR Heating return
HV Heating supply
KR Boiler return
KV Boiler supply
