35
Components
Remote control
Vitotrol 200,
Part no. 7450 017
(with integral room temperature sensor for room temperature hook-up in conjunction with a mixing valve circuit)
Setting the:
Day temperature
Heating program
Economy and party mode
Function changes can be made via coding addresses A0, b0 to b9, C0 to C2, C8, E1 and E2 (see Coding 2).

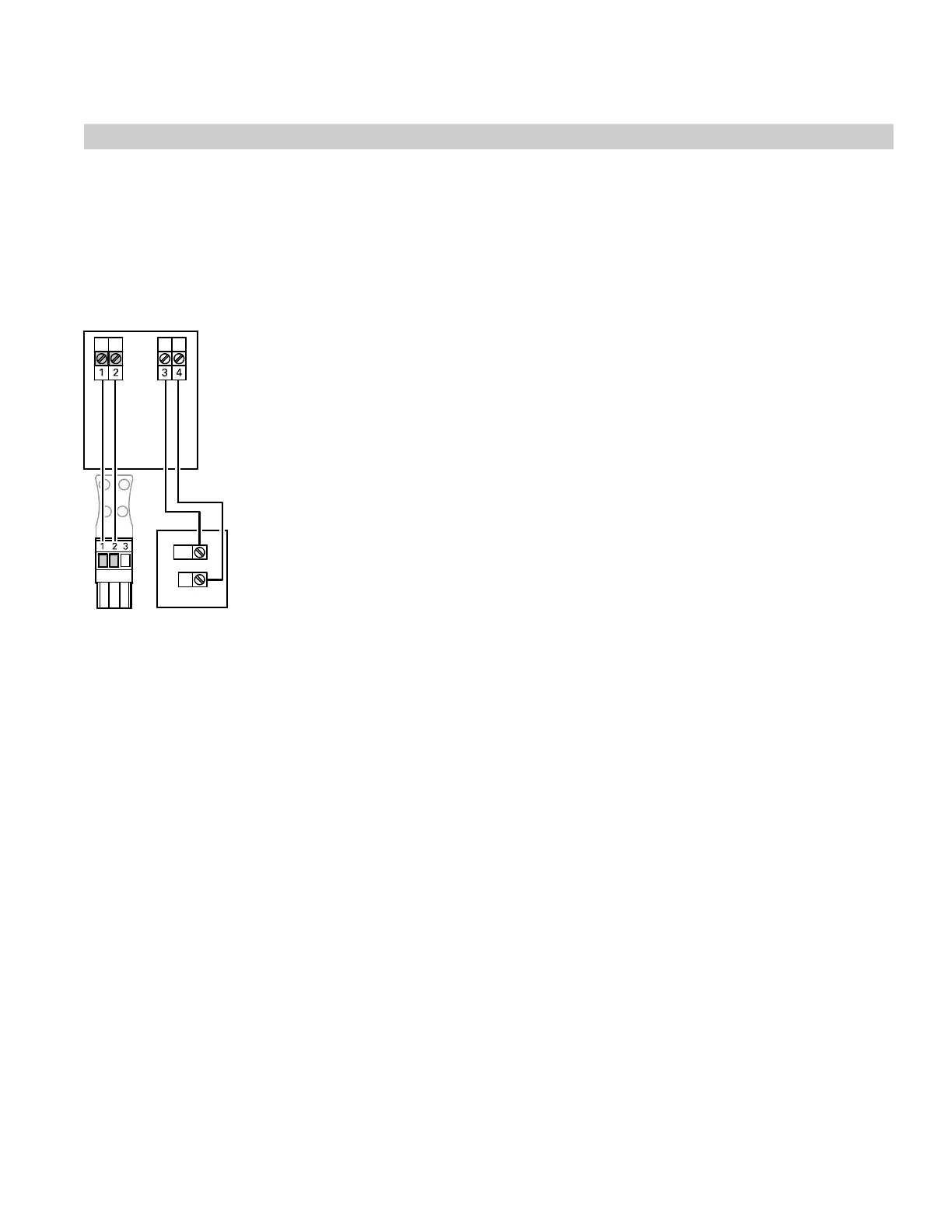

A Wall mounting base for
Vitotrol 200
B To the control unit
C Separate room temperature sensor
Connection
2-wire cable (total cable length max. 50 m / 164 ft)
Room temperature sensor connection
2-wire cable with a maximum length of 35 m / 115 ft
5285 967 v1.2
B
145
13b
9
C
A
