ViewSat VS9000HD - Page 9

ANTENNA SET-UP CONTINUED.
SATELLITE SET-UP FOR VS9000HD RECEIVER:
Satellites 82 / 91 / 129 / 119 / 110 ON ONE / THREE RECEIVER

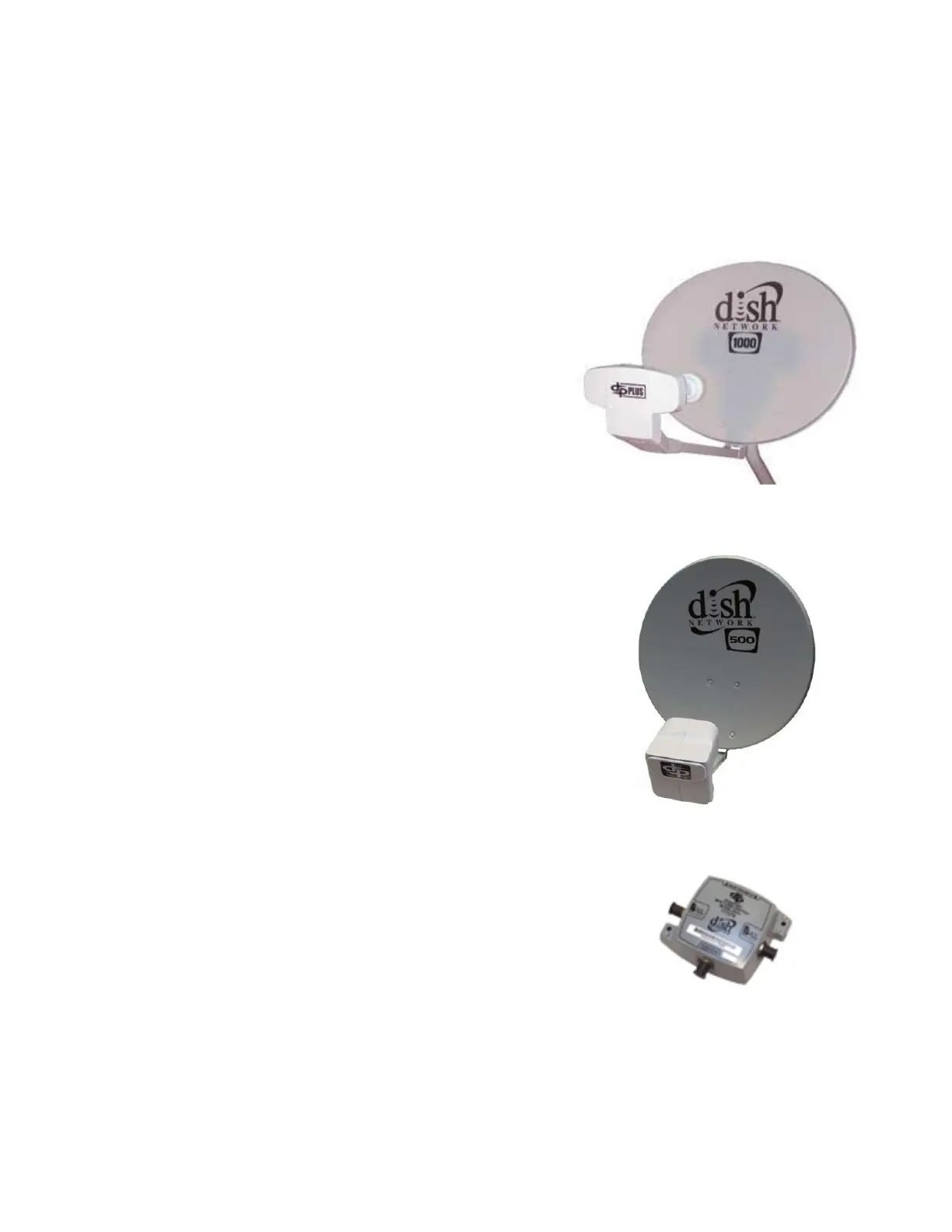

Using Dish 1000.2 & Dish 500 PRO 2LNBs / DN 21 Switch with 8PSK Card
Do a Factory Default first and upload new Bin File to Receiver.
Go To / Menu / Antenna Set-Up
Select Satellite to use.
EchoStar 7 119.0W
LNB* power = on
LNB* type = ocs-dp (Set LNB Type Here)
LNB* freq = 11250
22KHz = off
TP* Freq = 12239
Diseqc* 1.0 = Port 1
Motor = Off
Legacy SW = SW21-DISH 1
"Exit" & save.
EchoStar 8,10 110.0W
LNB* power = on
LNB* type = ocs-dp (Set LNB Type Here)
LNB* freq = 11250
22KHz = off
TP* Freq = 12224
Diseqc* 1.0 = Port 2
Motor = Off
Legacy SW = SW21-DISH 1
"Exit" & save.
EchoStar 5 129.0W
LNB* power = on
LNB* type = ocs-dp (Set LNB Type Here)
LNB* freq = 11250
22KHz = off
TP* Freq = 12224/12239
Diseqc* 1.0 = Port 3
Motor = Off
Legacy SW = SW21-DISH 1
"Exit" & save.
Nimiq 1,3 91.0W
LNB* power = on
LNB* type = ocs-dp (Set LNB Type Here)
LNB* freq = 11250
22KHz = off
TP* Freq = 12224
Diseqc* 1.0 = Port 4
Motor = Off
Legacy SW = SW21-DISH 2
"Exit" & save.
Document page.9
VIEWSAT 9000HD User Troubleshooting Guide & Manual. April /2008
