ANTENNA SET-UP CONTINUED.
Nimiq 2 82.0W
LNB* power = on
LNB* type = ocs-dp (Set LNB Type Here)
LNB* freq = 11250
22KHz = off
TP* Freq = 12224
Diseqc* 1.0 = Port 4
Motor = Off
Legacy SW = SW21-DISH 1
"Exit" & save.

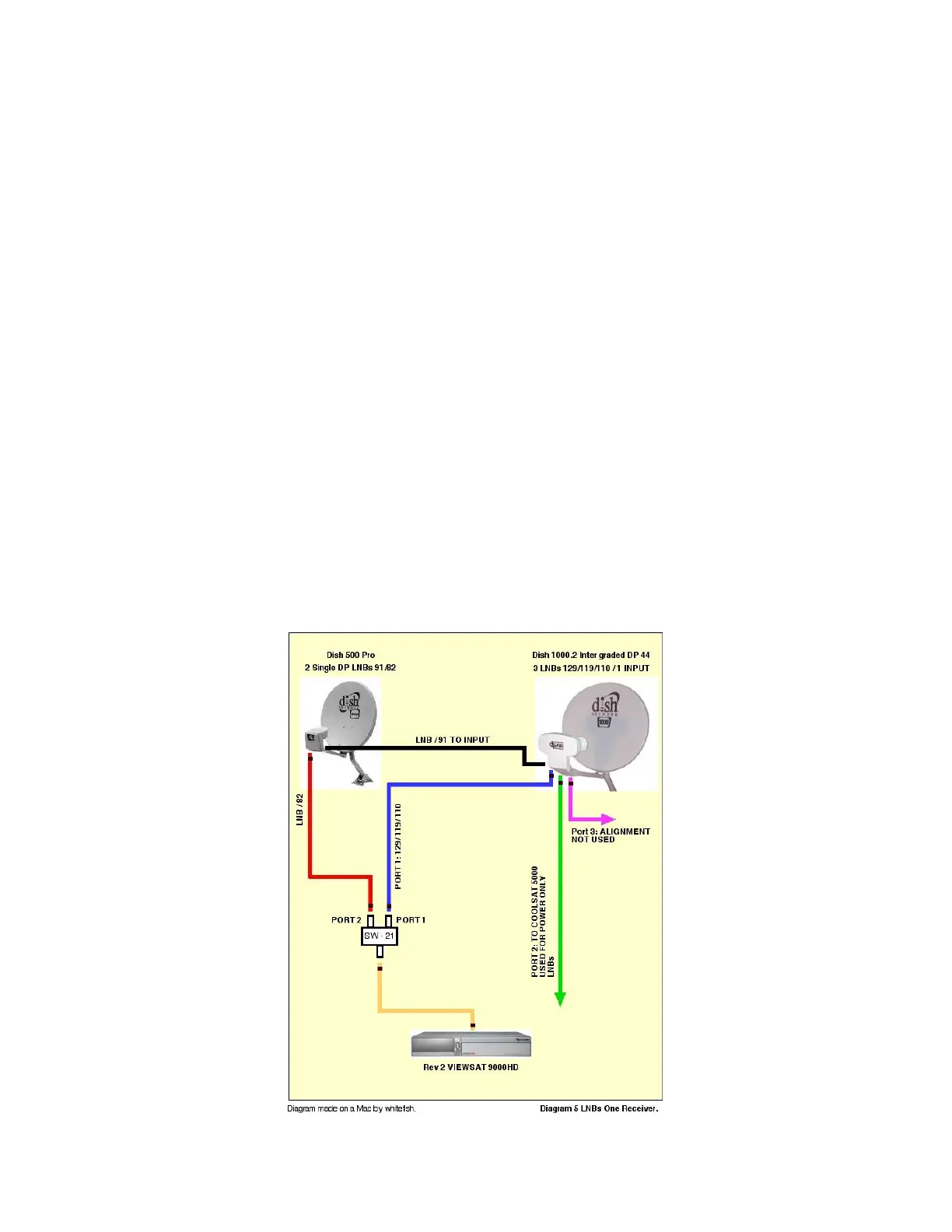

5 Satellites on One Receiver:
• 1. Now you have 5 LNBs on one receiver and I will show you just how this all works. Dish 1000.2 has
a DPP 44 switch built in so you can have 3 RECEIVERS or ONE For now I will set-up just ONE
Receiver. I will show you all so 3 Receivers.
• 2. Add RG6 cable to the center port of Dish 1000.2 port. e center port is 119. e other end go’s
into the INPUT DP-21 Switch-1
• 3. Dish 500 Pro 2 LNBs/ Take the RG6 from LNB82 and connect to the INPUT PORT of the 1000.2
• 4. Dish 500 Pro 2 LNBs/ RG6 cable from LNB91 and connect it into INPUT 2 of the DP-21 Switch.
• 5. Now you have 2 RG6 Cables connected to the DP-21 Switch. One from the 1000.2 and one from
the Dish 500 Pro.
• 6. RG6 cable into the OUTPUT of the DP-21 Switch to your RECEIVER.
•
7. Now for 3 RECEIVERS you will need RG6 cables on 1000.2 PORTS 110/129 to each RECEIVER.
Document page.10
VIEWSAT 9000HD User Troubleshooting Guide & Manual. April /2008
