Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.

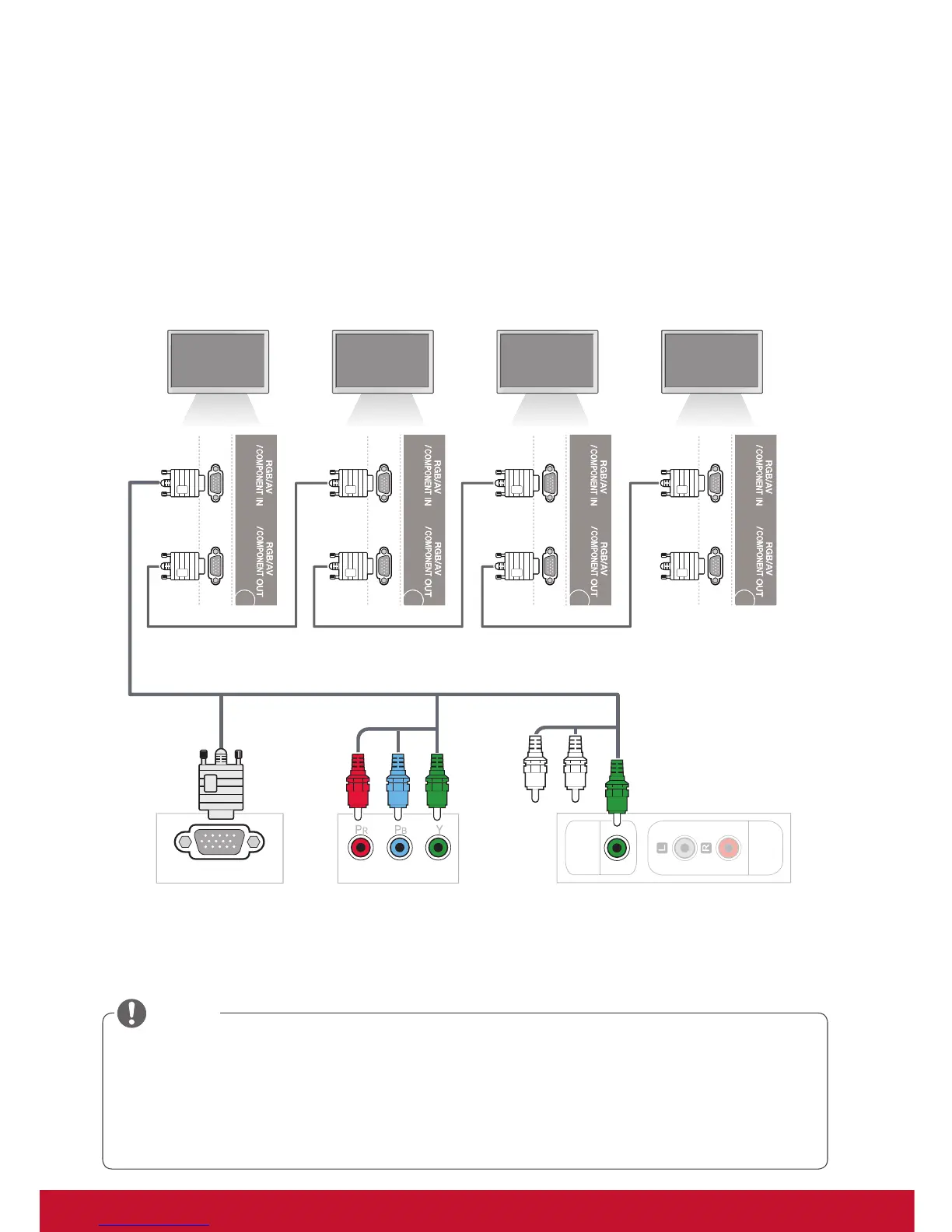

To use different products connected to each other Connect one end of the signal input cable (15-pin D-Sub
Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector
of other products
RGB
Mode
Component
Mode
AV(CVBS)
Mode
15-pin D-Sub Signal Cable
(Max 3m)
Monitor 1 Monitor 2 Monitor 3 Monitor 4
y
The number of monitors that can be connected to one output may vary depending on signal status
and cable loss. If the signal status is good, and there is no cable loss, it is possible to connect up to
9 monitors. If you want to connect more than this number of monitors, it is recommended to use a
distributor.
y
When multi-connecting in/out cascade format, no loss cables are recommended.
