2.14 System configuration - Firmware upgrades
Firmware updates can be performed by using a USB flash drive. Please read the
release notes carefully regarding the changes that will be made to your signboard
before applying the upgrade.
IMPORTANT: DO NOT unplug the USB drive or turn off the signboard while the
system is performing a firmware update.
1. Obtain the latest firmware and copy it to the root directory of a USB drive.
2. Plug the power cord into the device.
3. Plug in a USB mouse to the device to enter the Basic settings menu.
4. Click on the Advanced button. The advanced configuration menu will be
launched. (Fig. 2.6.1)
5. Click on System, and then choose Firmware.
6. Click on OK to start the firmware update process.

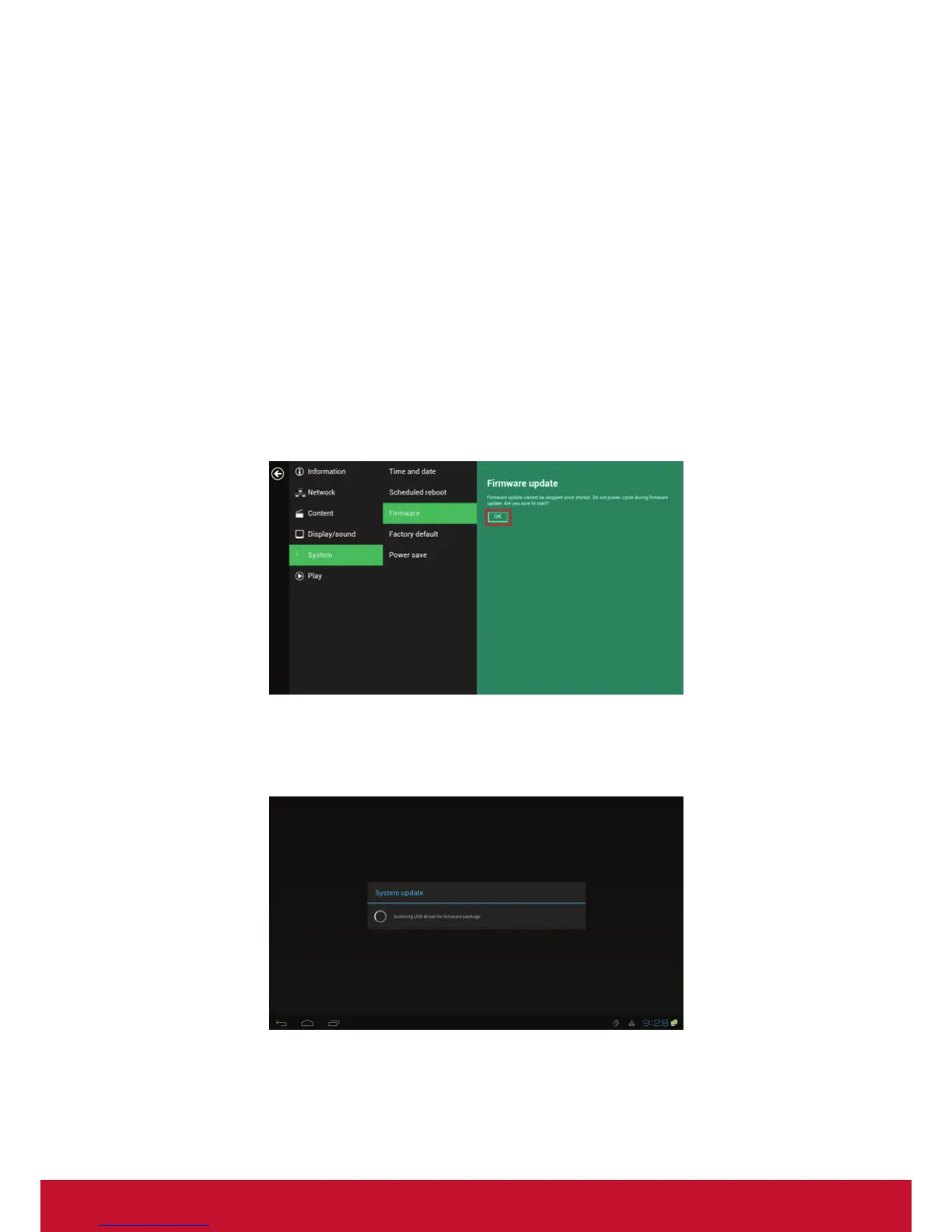

(Fig. 2.14.1)
7. Plug in the USB drive once the screen reads Scanning USB drives for
firmware package.
(Fig. 2.14.2)
