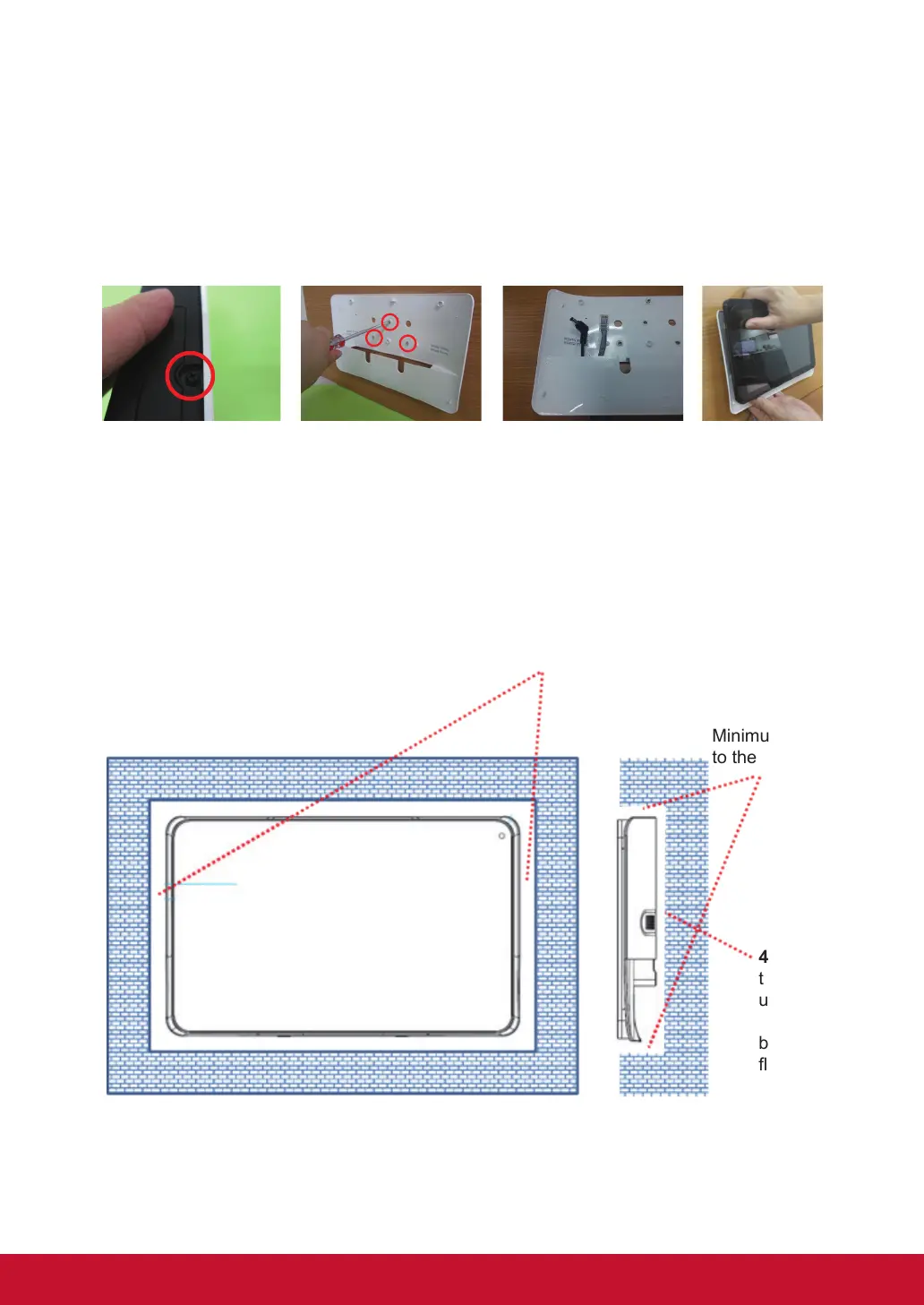

1.4. Mounting and Installation
Mounting Option 1: [VESA mount]
Supporting VESA standard: VESA MIS-D75 (75*75mm)
Supporting screw: M4*4mm (exclude the mounting plate thickness)
Mounting Option 2: [Using back cover]
(Power / SD card brackets MUST NOT installed while mount on back cover)
Release the back
cover screw to release
back cover
Install back cover:
thread head height not
exceed 3mm
Route power and network cable from
bottom, insert to signboard before mount
signboard on back cover
While install on indented wall or install inside custom casing/frame, follow
below installation guide line to allow enough space for air ow:
Minimum 40mm to the wall
Front View
Side View
Minimum 40mm
to the wall
Minimum
40mm to
the wall,
use VESA
Mount for
better air
ow
